Ignition Cable: Testing and Inspection

INSPECTION OF HIGH-TENSION CORDS

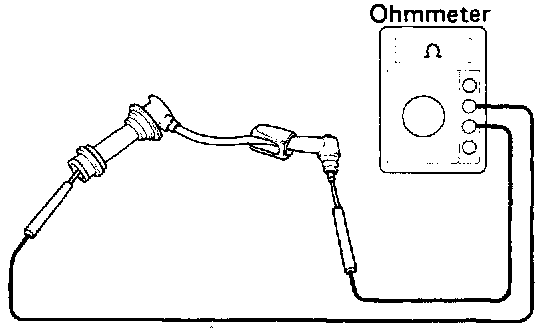

Using an ohmmeter, measure the resistance.

Maximum resistance: 25 kohms per cord

If resistance exceeds maximum, check the terminals.

If necessary, replace the high-tension cord.
