Tercel Sedan L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Differential, Automatic Transaxle
Differential, Automatic Transaxle

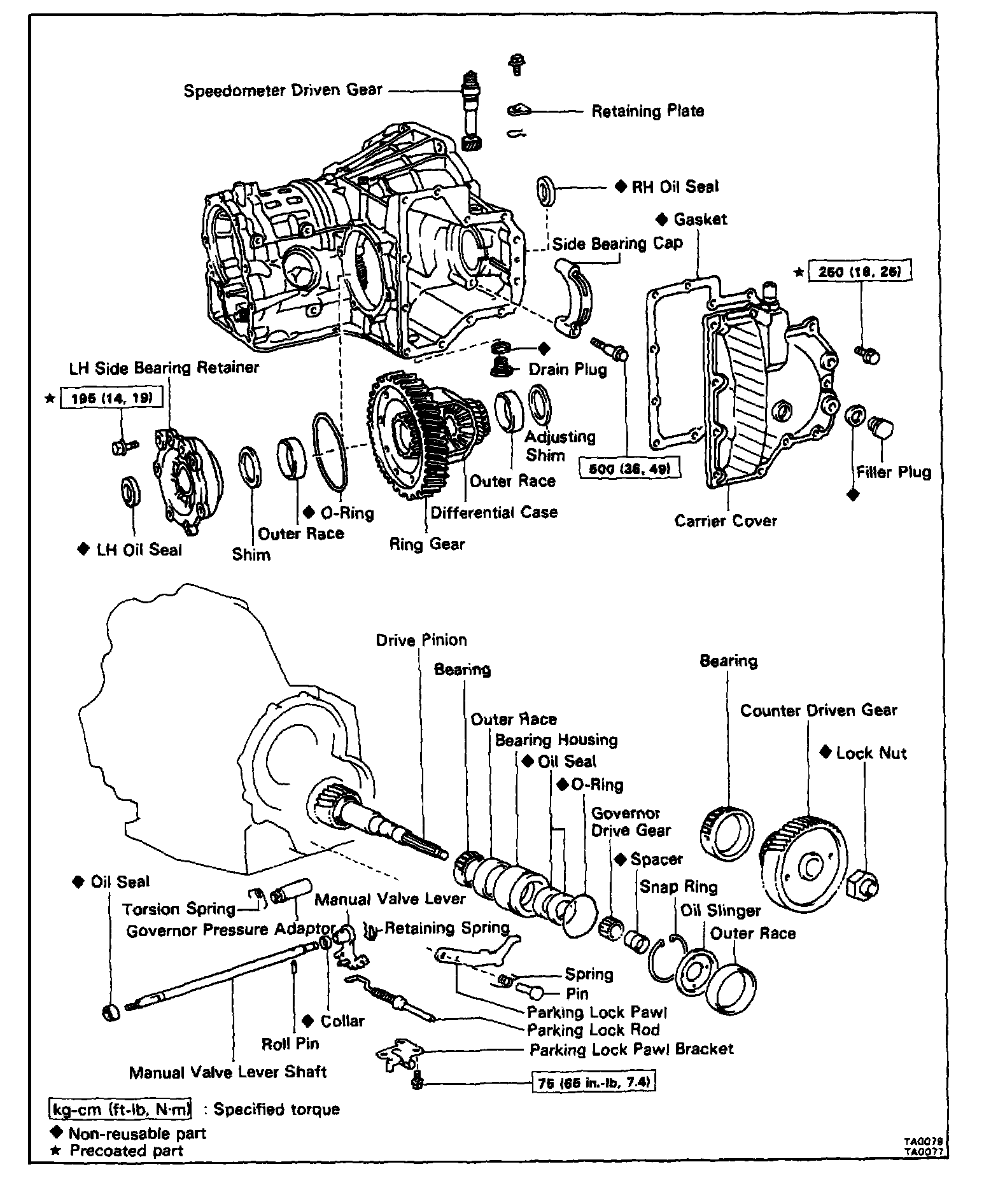

Part 1:

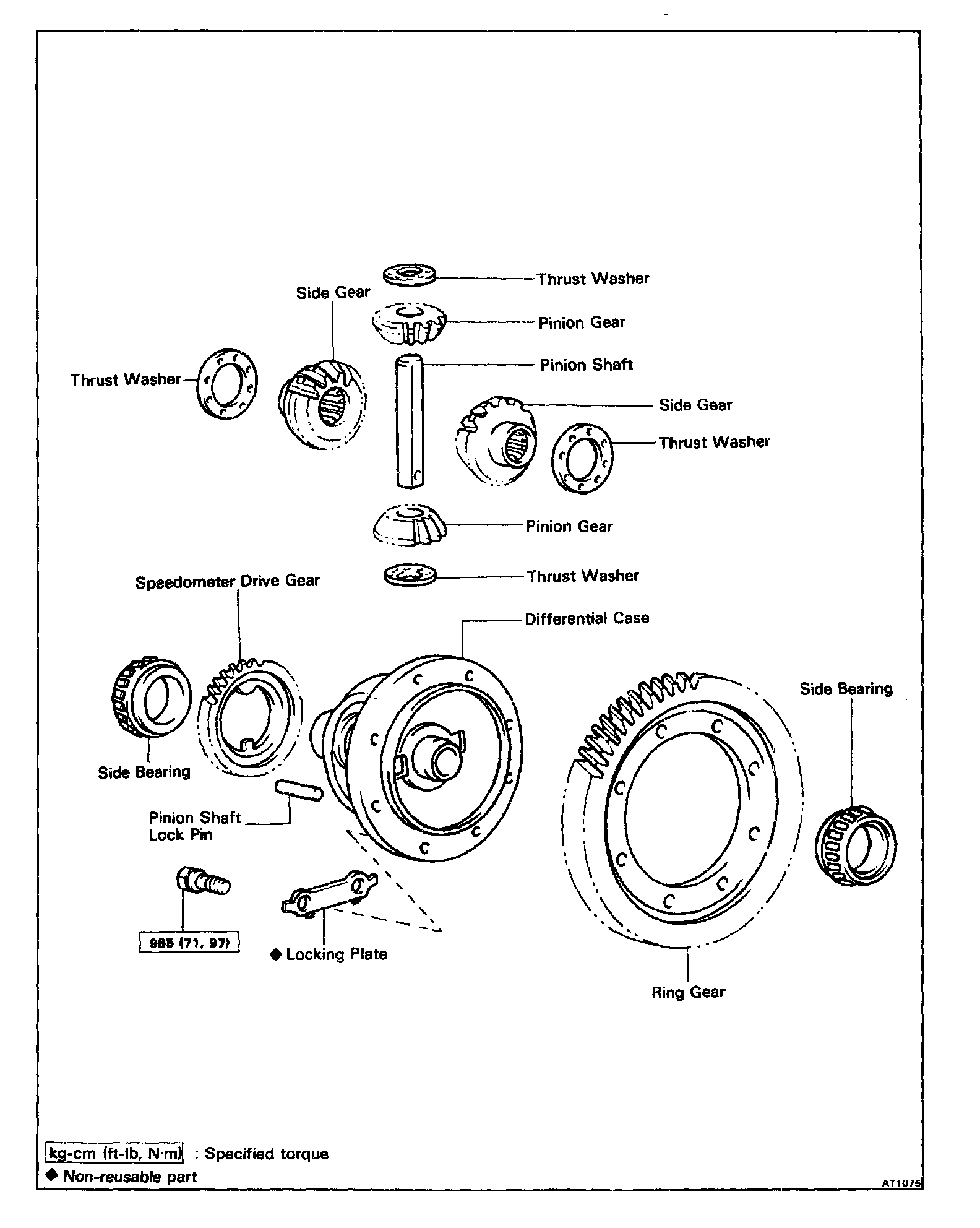

Part 2:
