Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Camry Sedan 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Control Module, A/T
Control Module, A/T

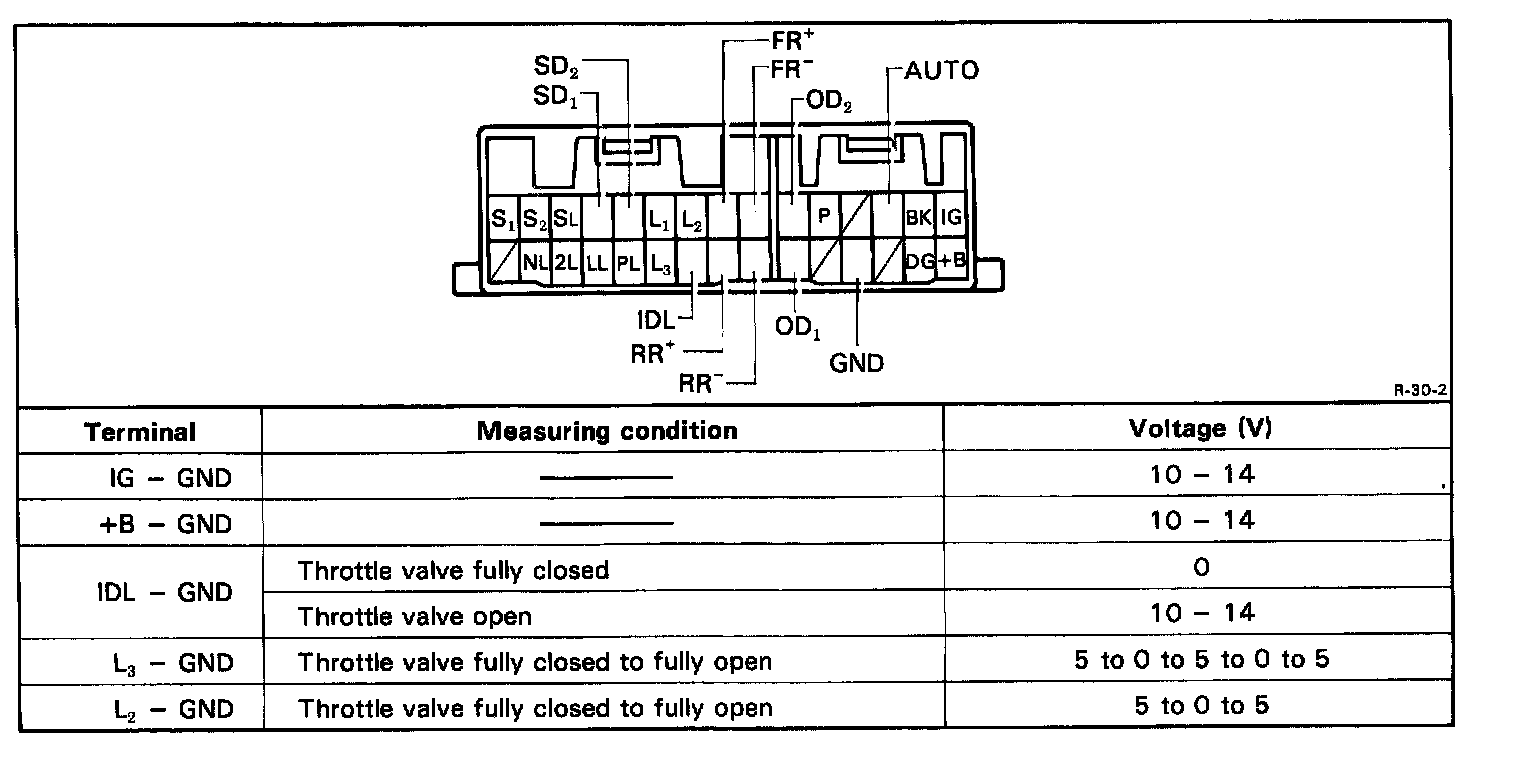

TCCS ECU Pinout Values:
TCCS ECU Pinout Values:

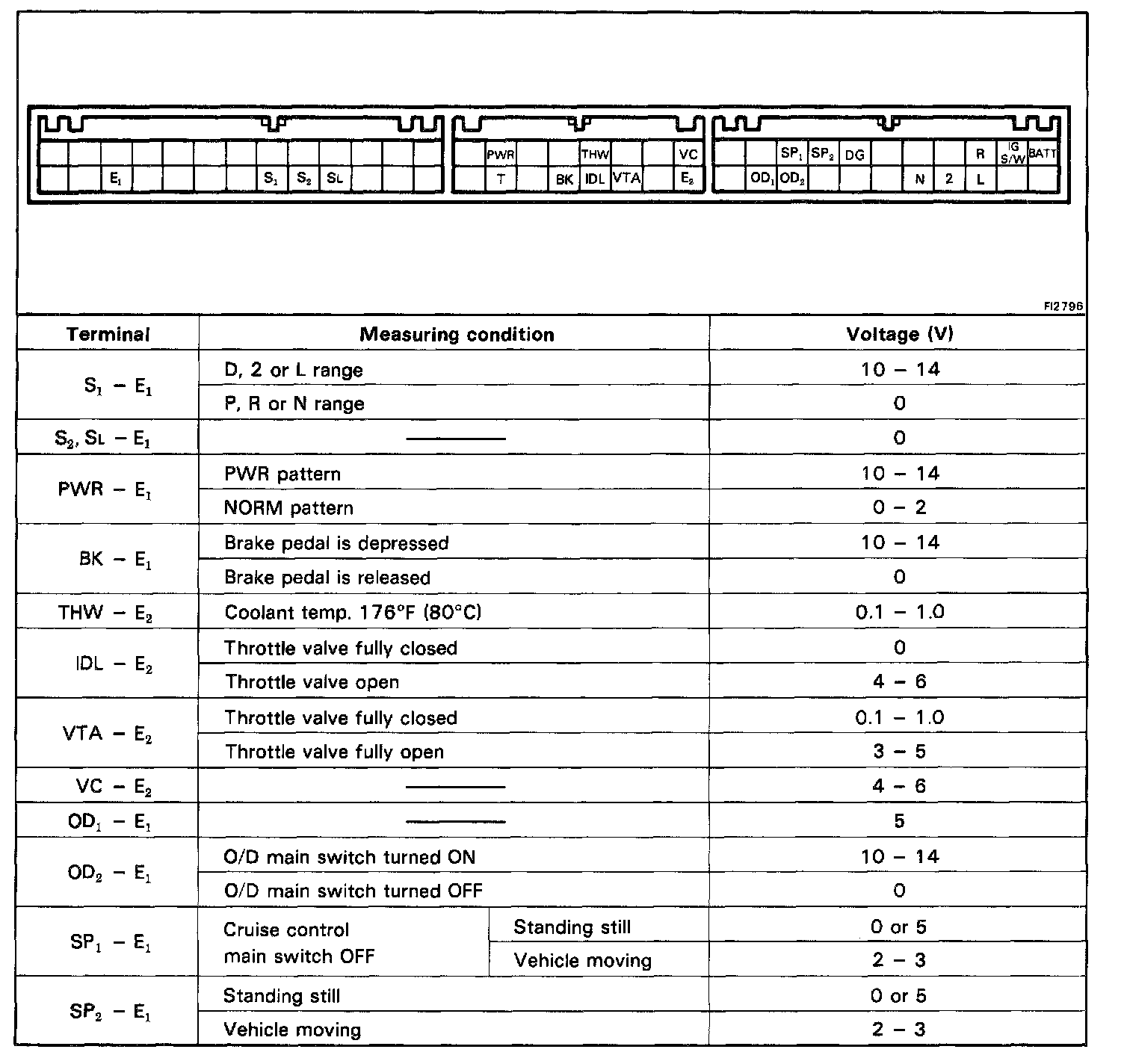

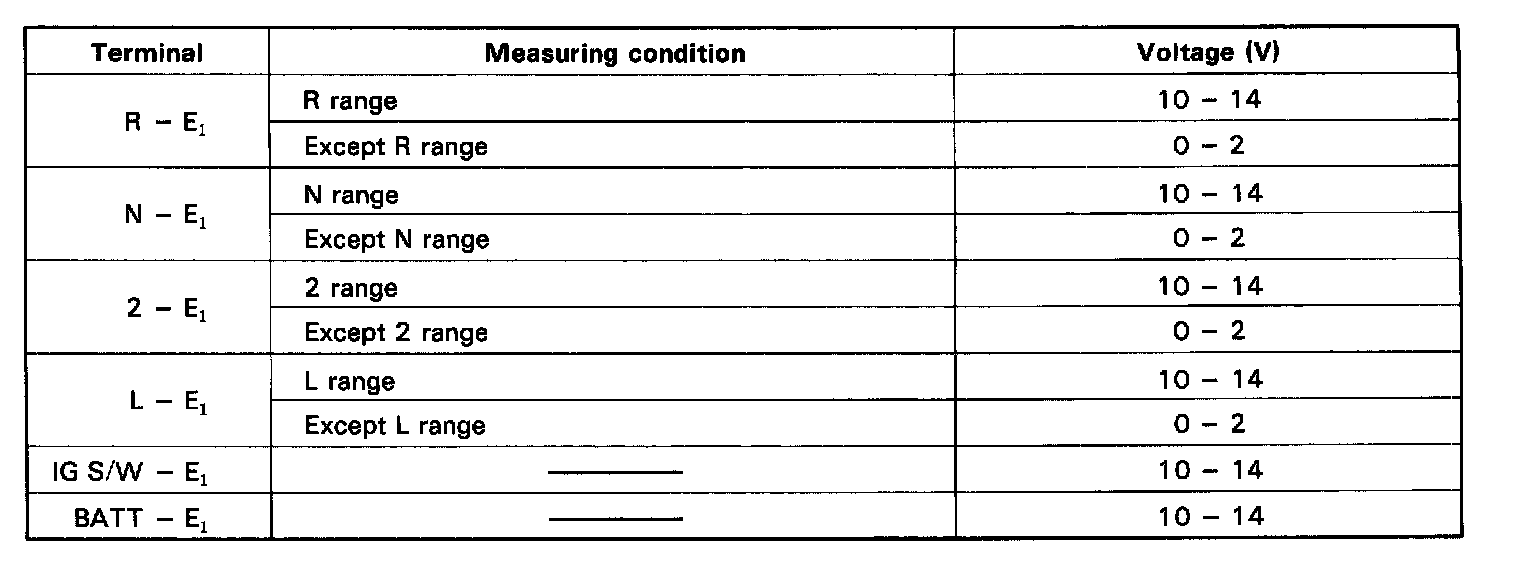

ECT ECU Pinout Values:
ECT ECU Pinout Values:
