Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Celica L4-1998cc 2.0L DOHC (3S-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Testing and Inspection
>>
Igniter
>>
Circuit Test
Circuit Test

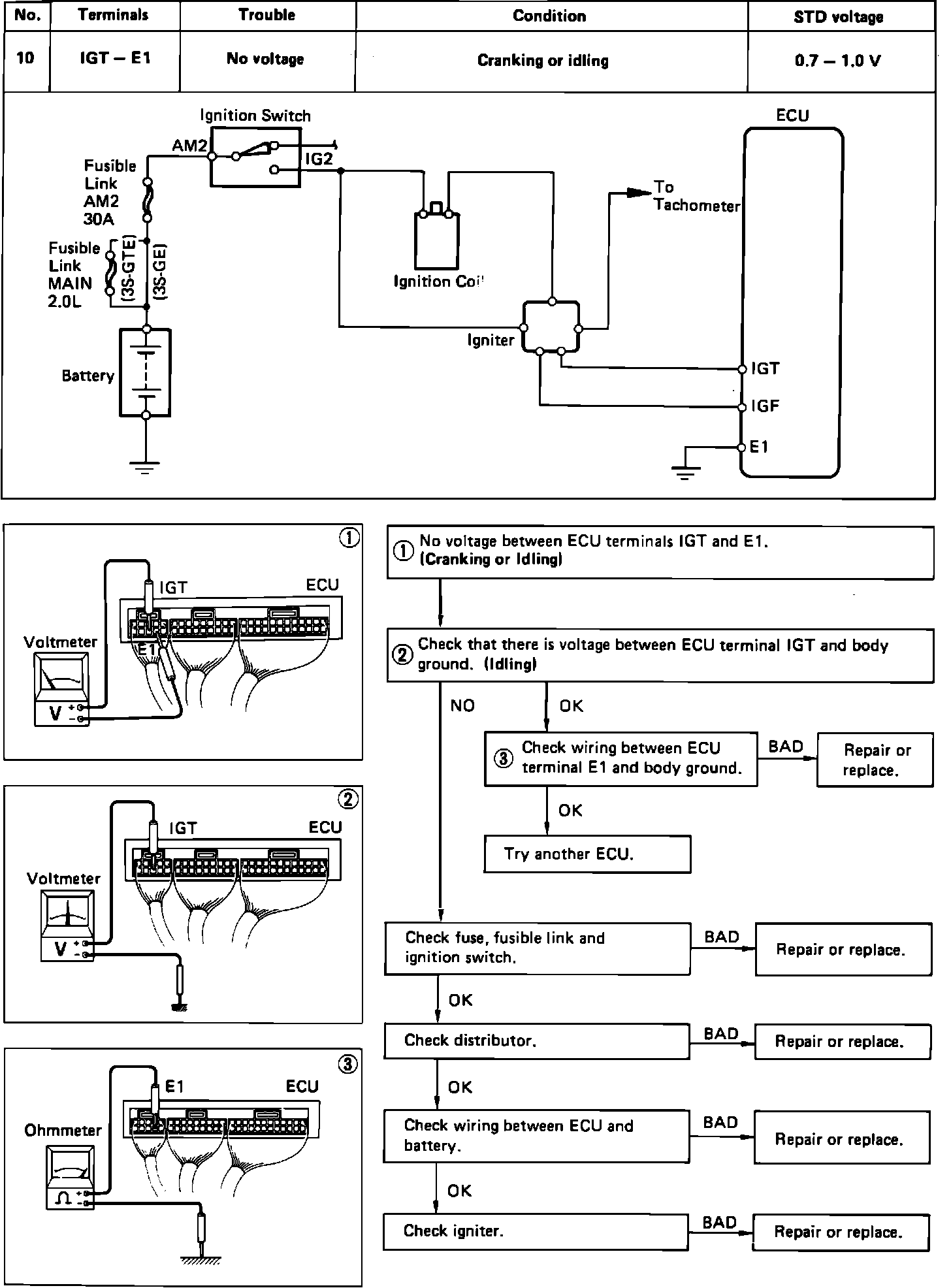

Ignition Signal Circuit Test:
