Control Module: Testing and Inspection

INSPECTION OF ELECTRONIC CONTROL COMPONENTS

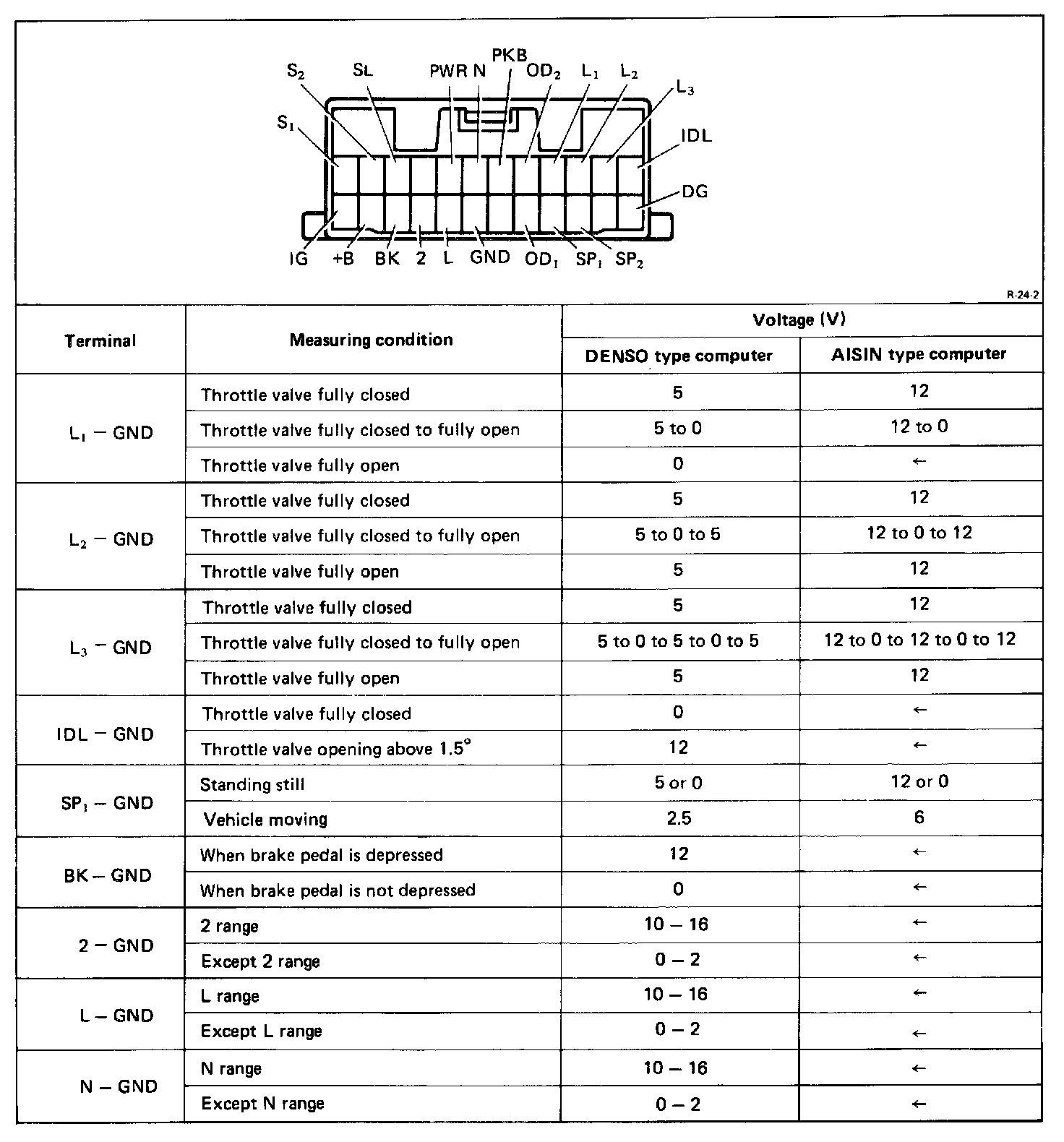

Connector View/Pinouts Part 1:

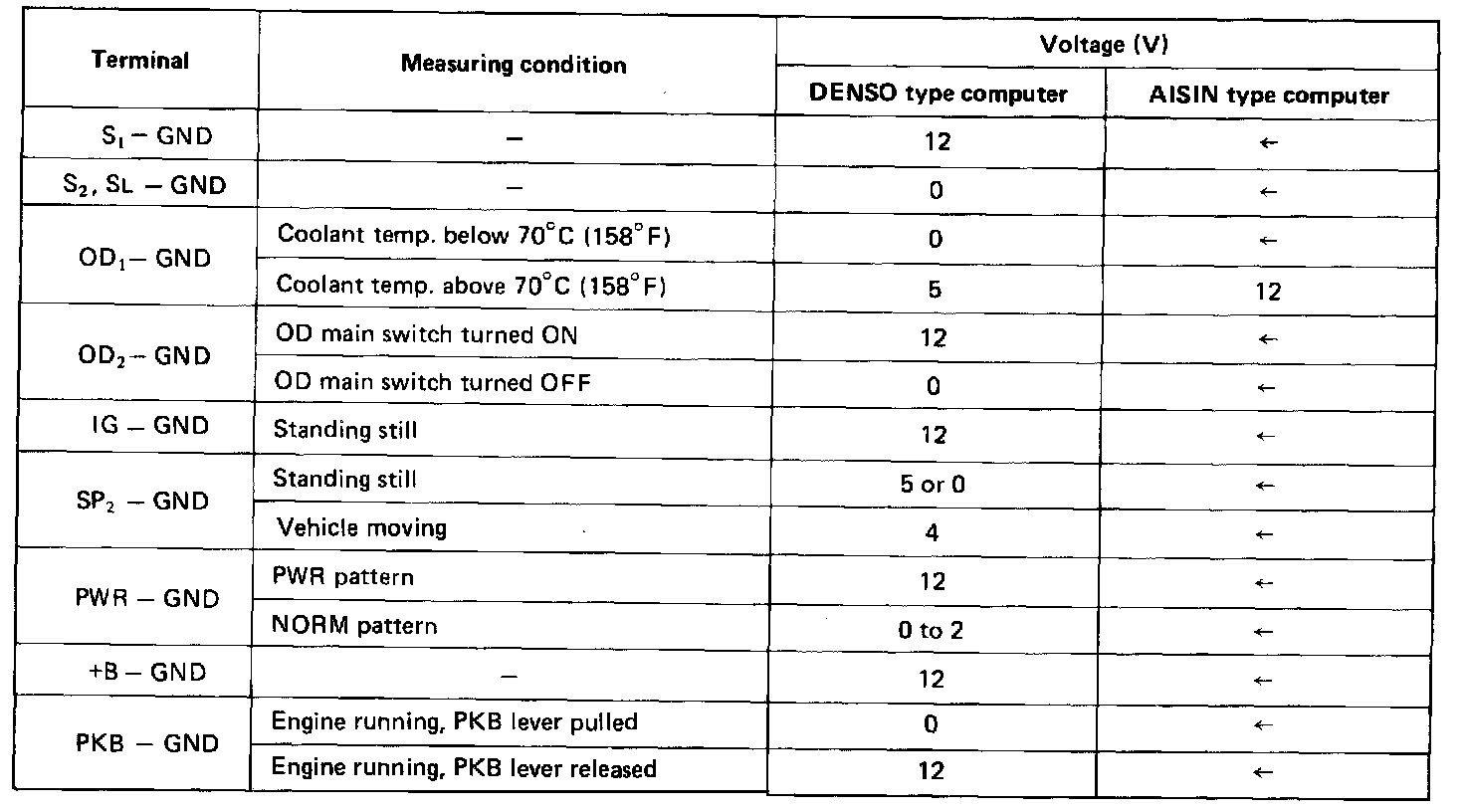

Pinouts Part 2:

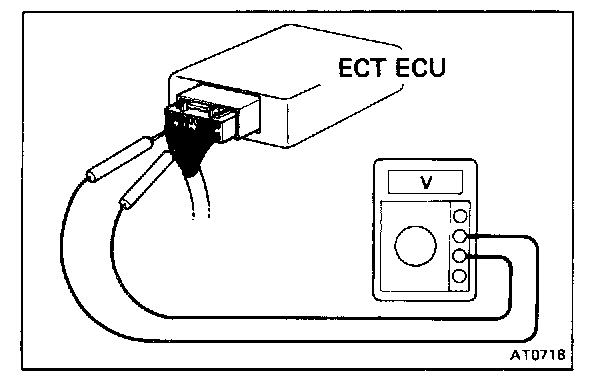

1. INSPECT VOLTAGE OF ECT ECU CONNECTOR
a. Remove the center cluster.
b. Turn on the ignition switch.
c. Measure the voltage at each terminal.
