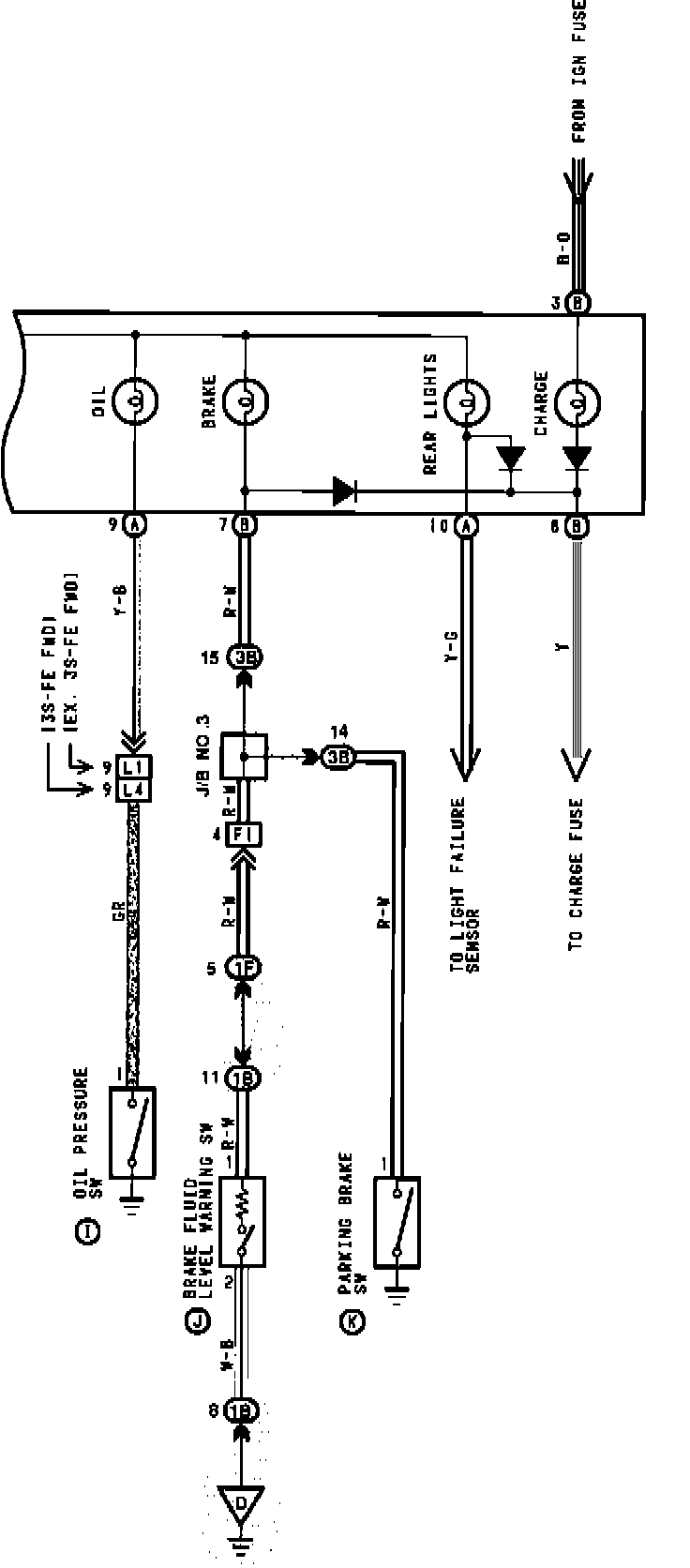

Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

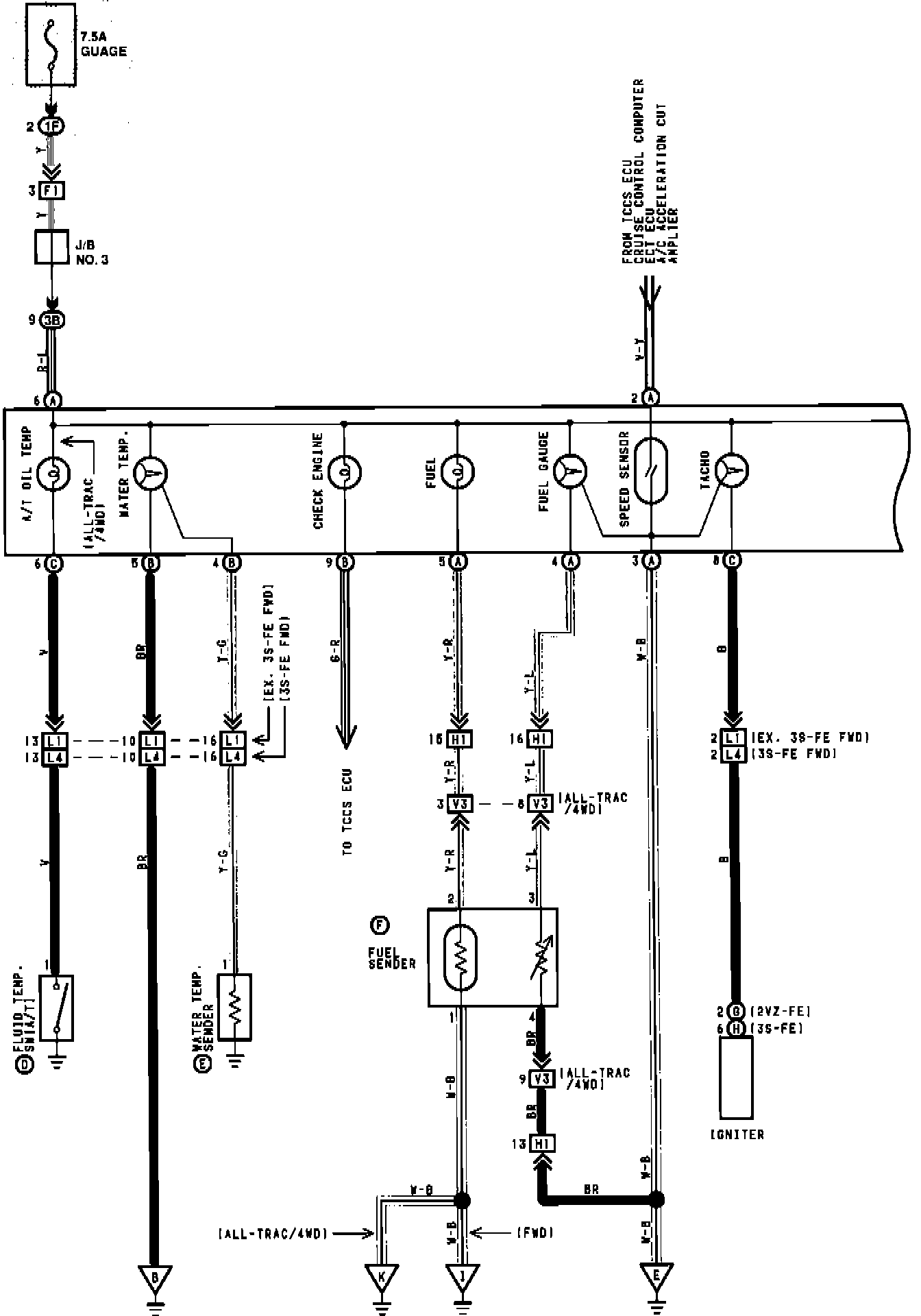

Instrument Panel: Combination Meter:
Instrument Panel: Combination Meter:
