Main Relay (Computer/Fuel System): Locations

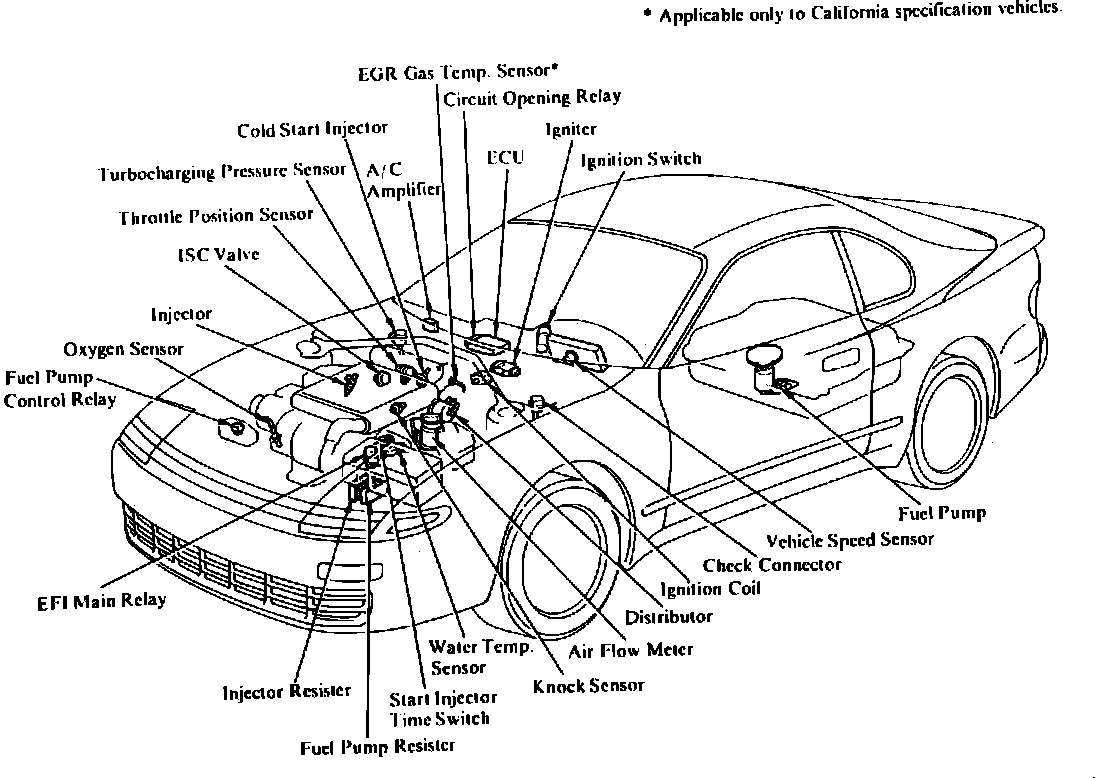

Engine Component Locations.:




Front LH Side Of Engine Compartment

Applicable to: 3S-GTE Engine
