Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1990
>>
Celica L4-122 1998cc 2.0L DOHC Turbo (3S-GTE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Testing and Inspection
>>
Component Troubleshooting
>>
Battery Power Input
Battery Power Input

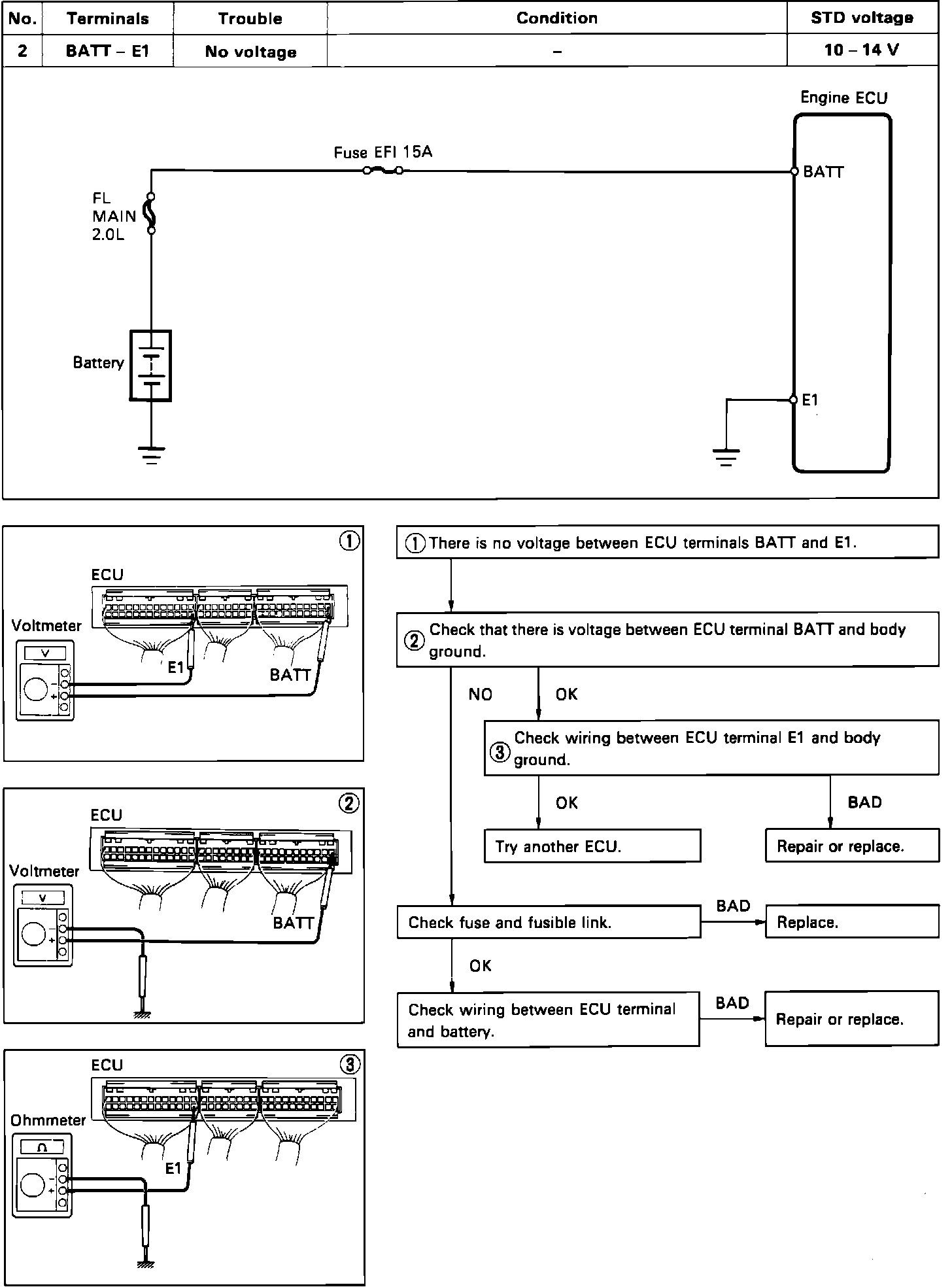

ECU Power Input Circuit Test:
