Operation CHARM: Car repair manuals for everyone.

Home >> Toyota >> 1992 >> Camry Sedan L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, A/T

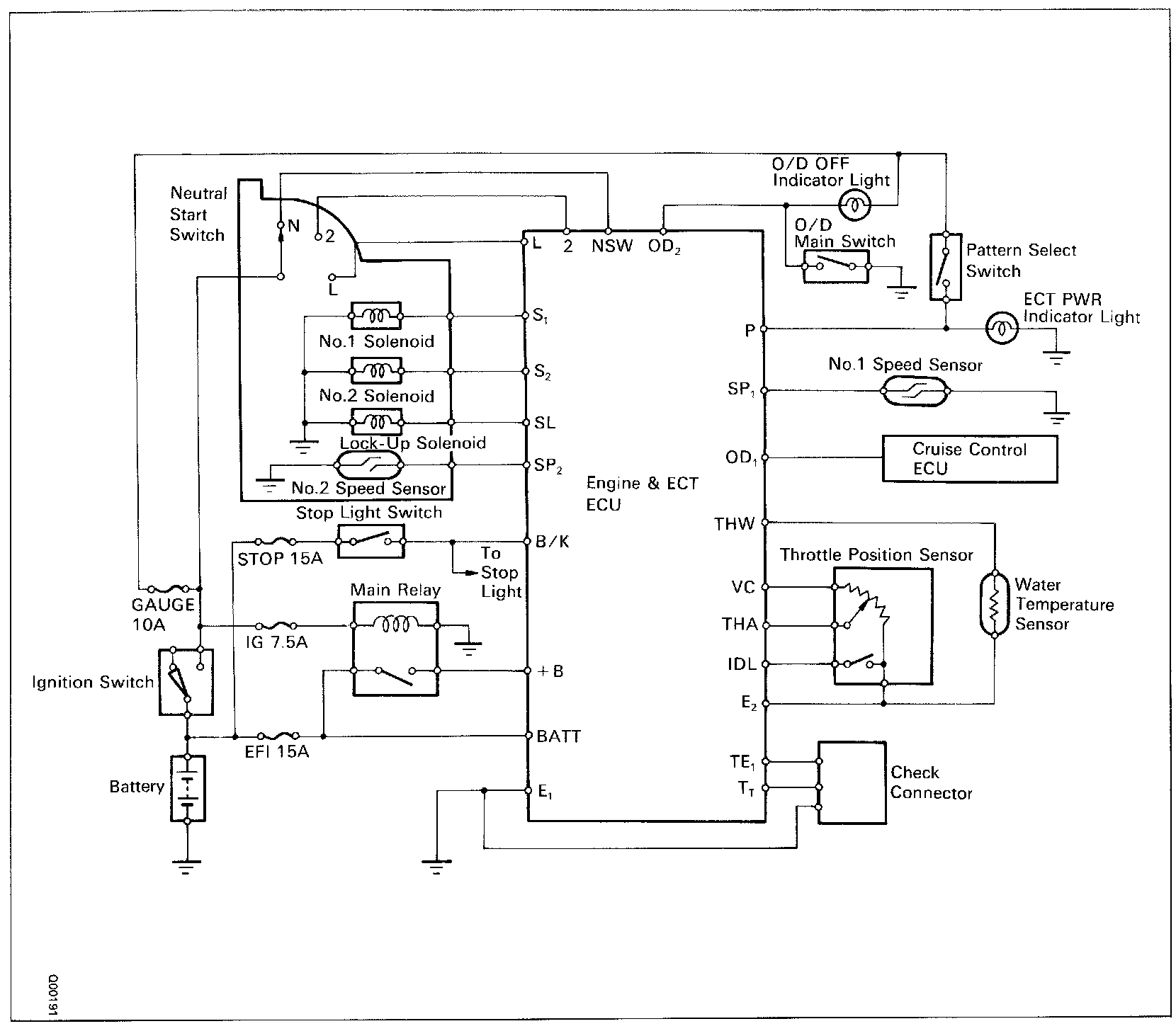

Control Module, A/T
