Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1994
>>
Camry Wagon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Additional Locations
>>

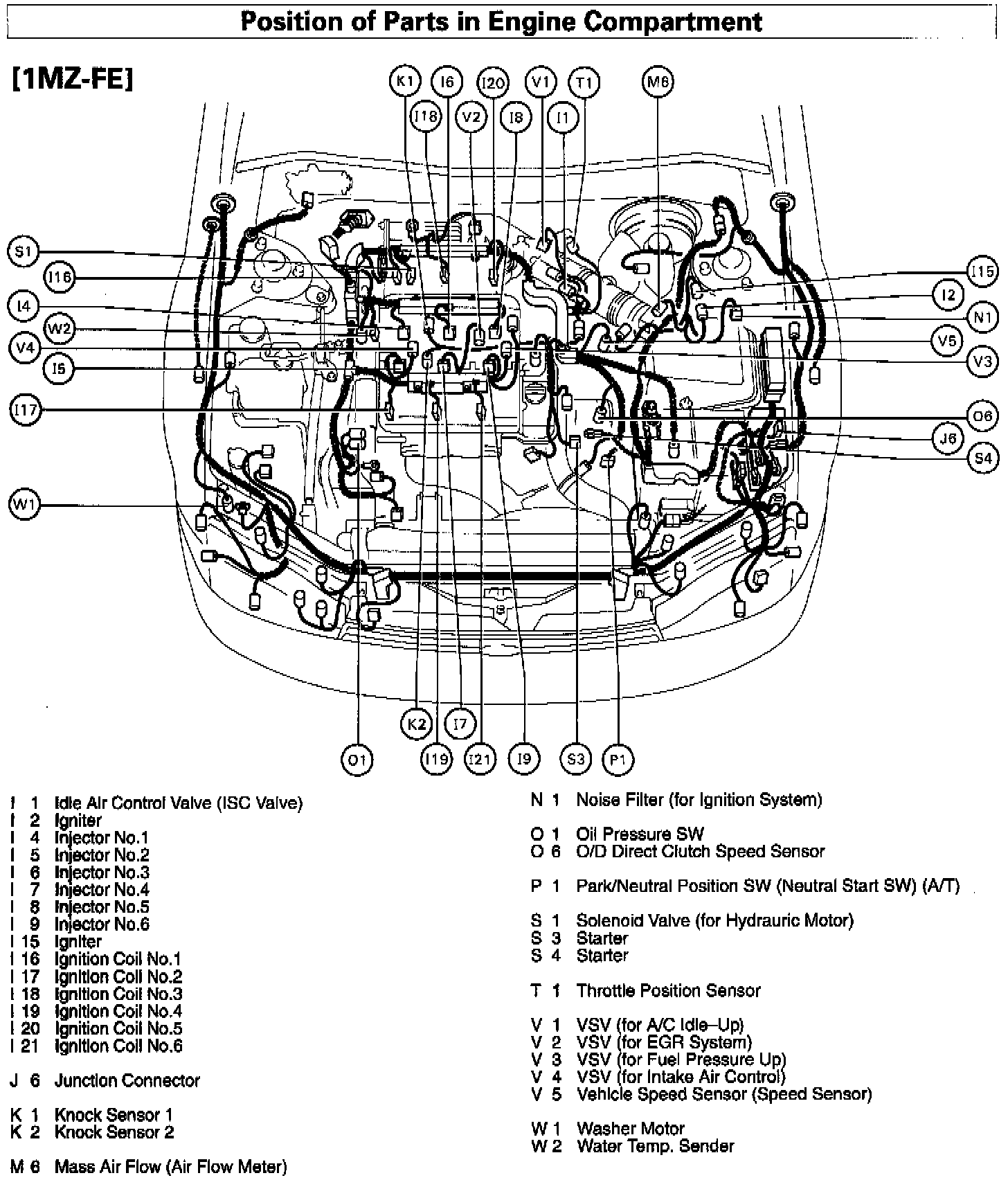

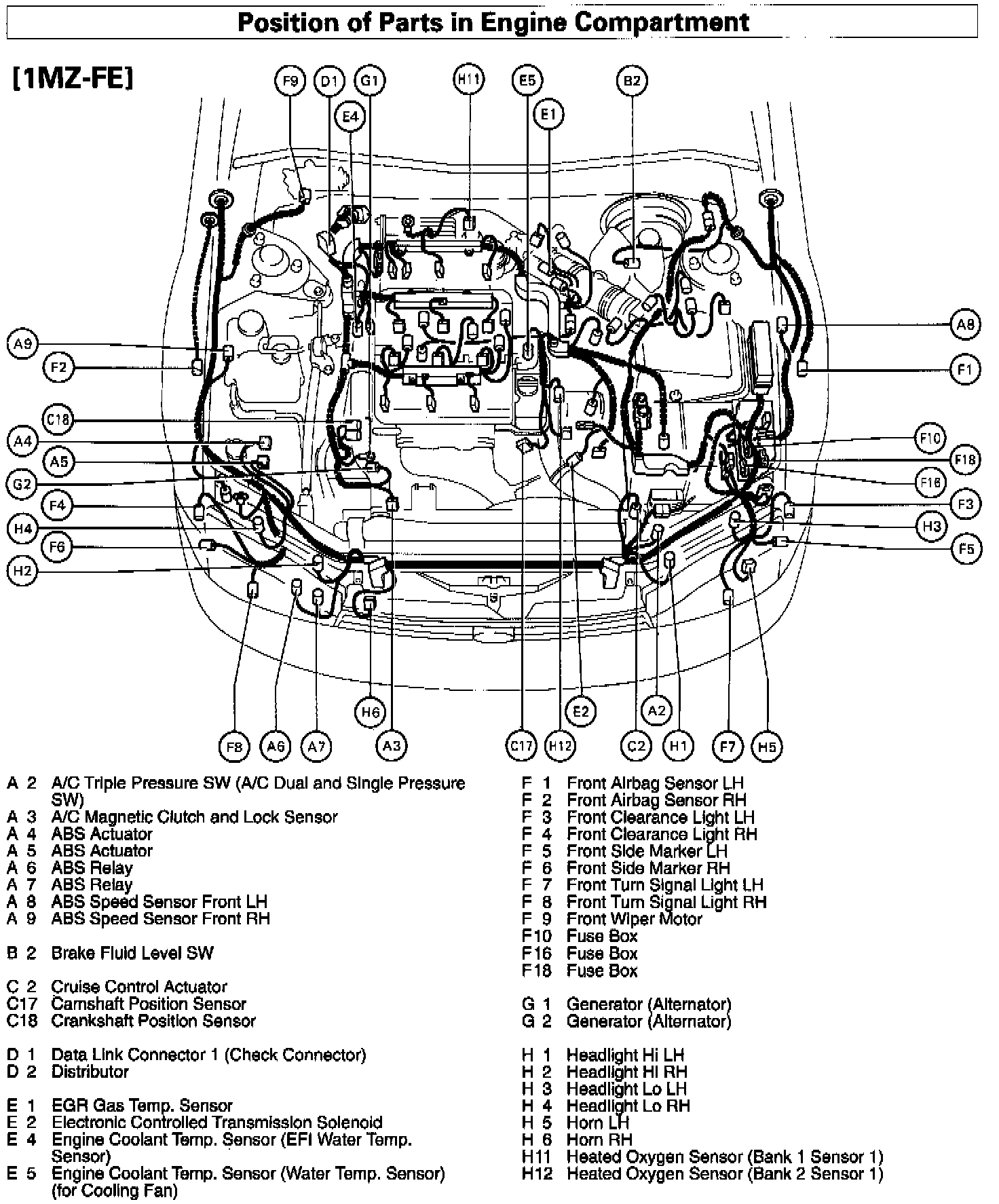

Engine Compartment
Engine Compartment
Electrical Wiring Routing:
Electrical Wiring Routing:
