Idle Up Control Valve: Service and Repair

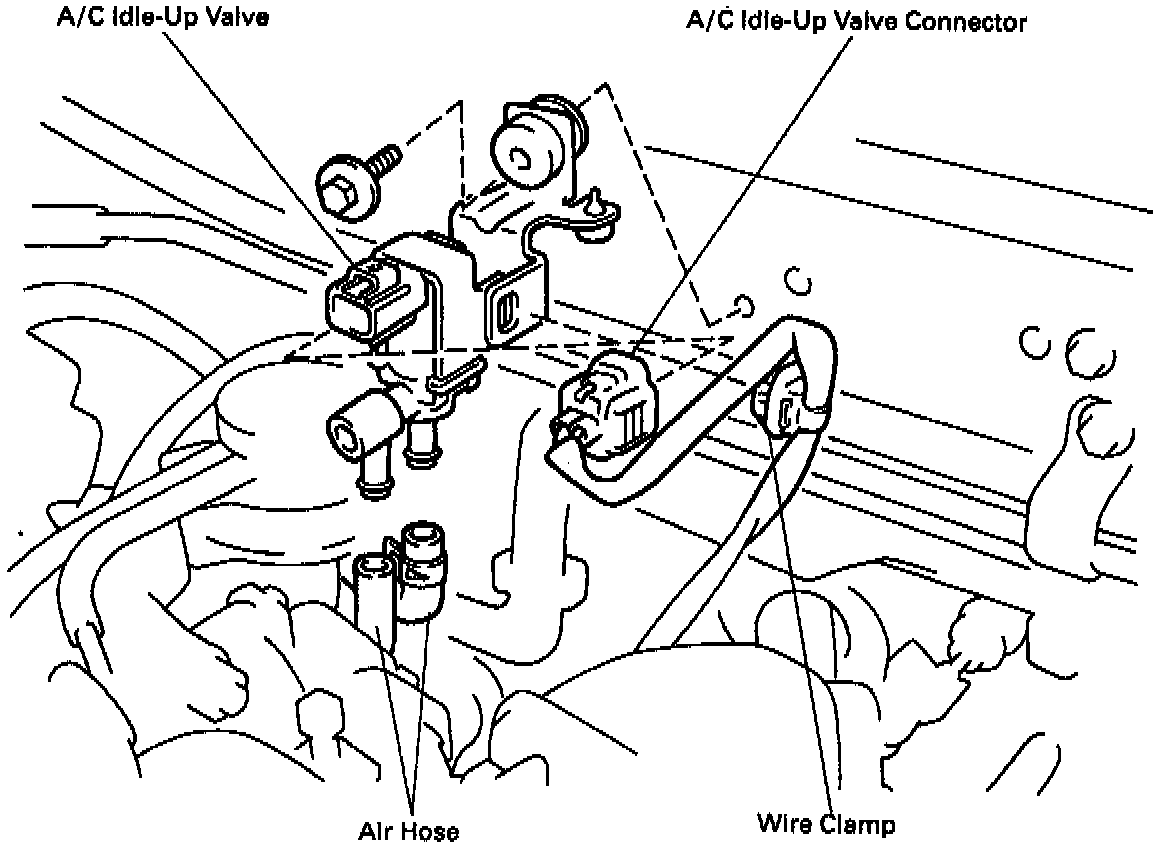

Refer to the included image for removal and installation details.
