Troubleshooting Matrix Chart

ELECTRONICALLY CONTROLLED CIRCUIT MATRIX CHART

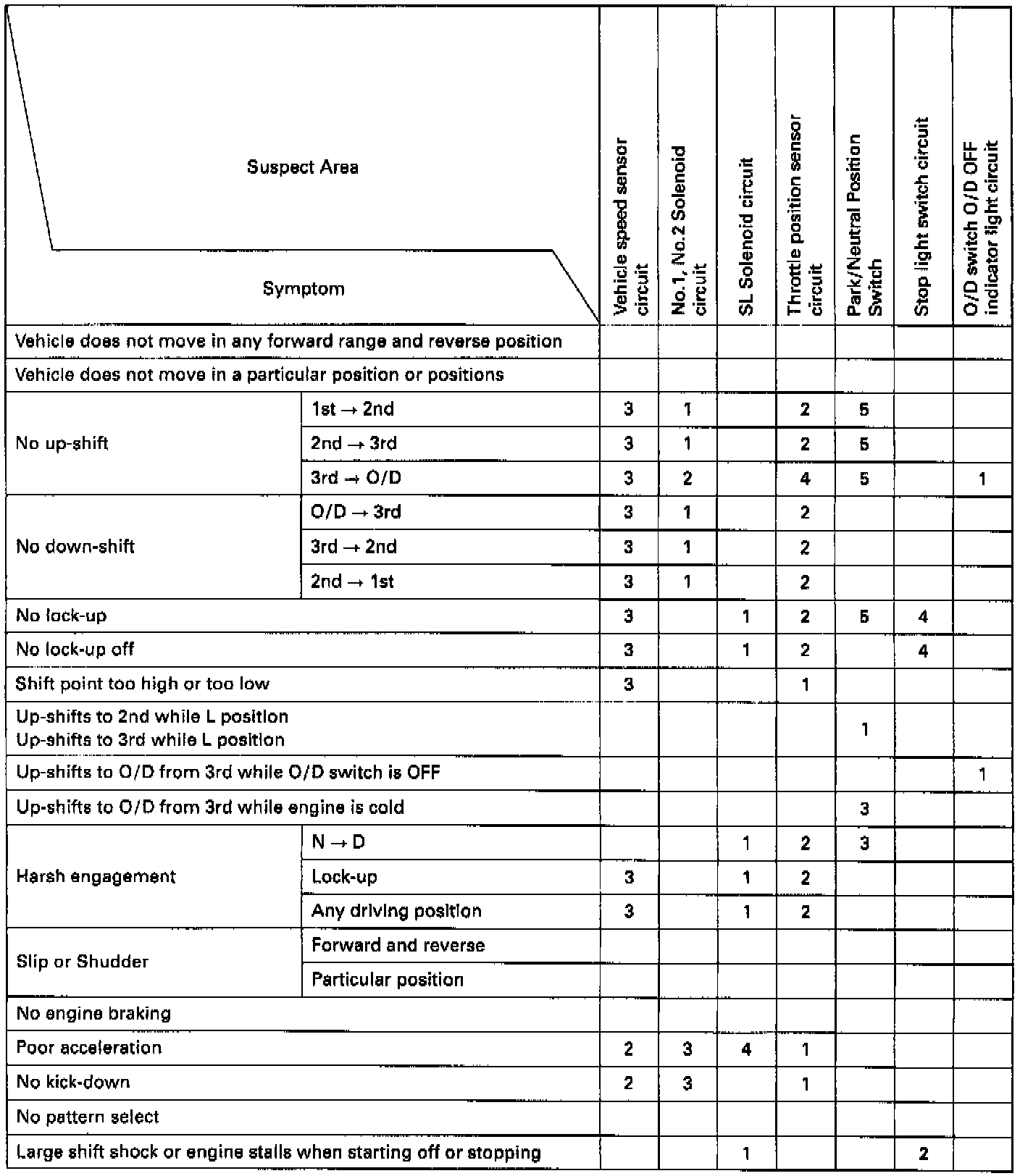

Part 1 of 2

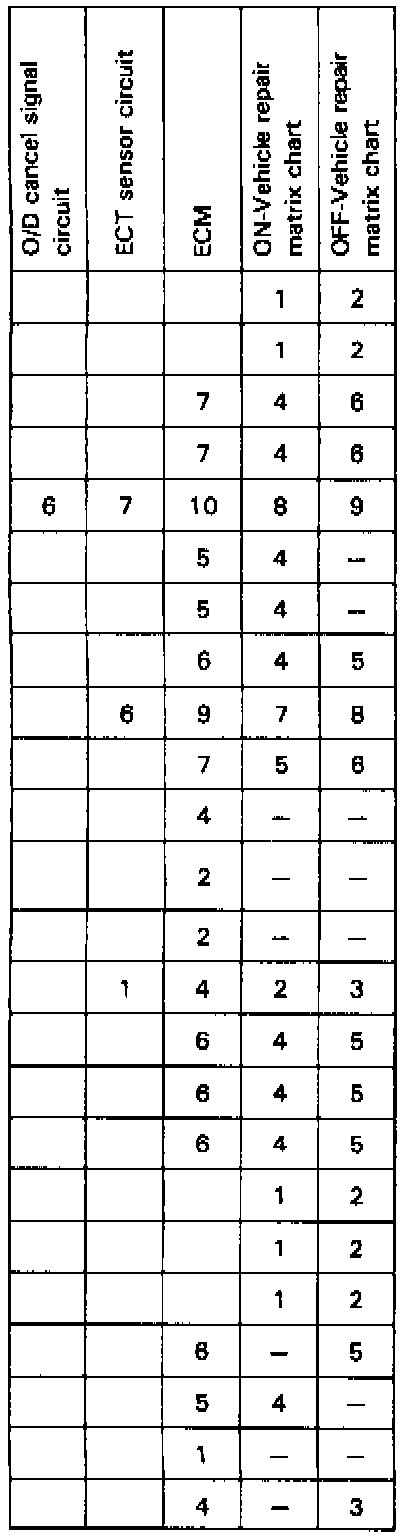

Part 2 of 2
