Home >> Toyota >> 1994 >> Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Piston Pin, Engine

Piston Pin, Engine

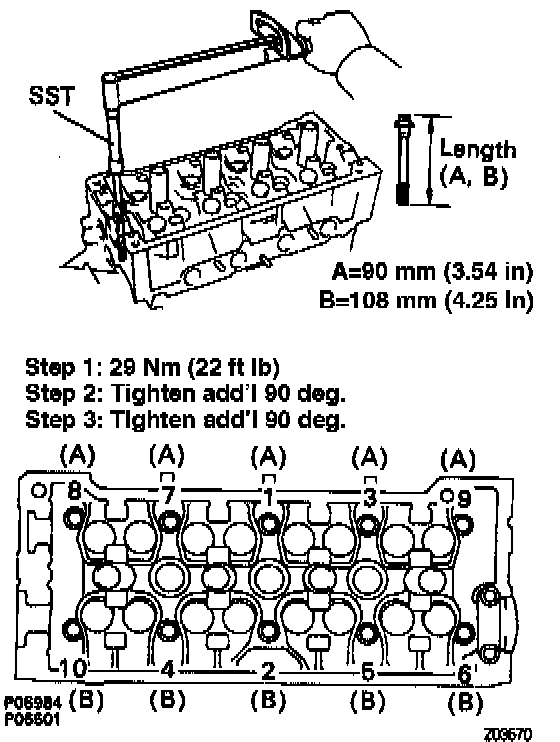

Cylinder Head Torque Sequence:





Cylinder Head Torque
