Service Data

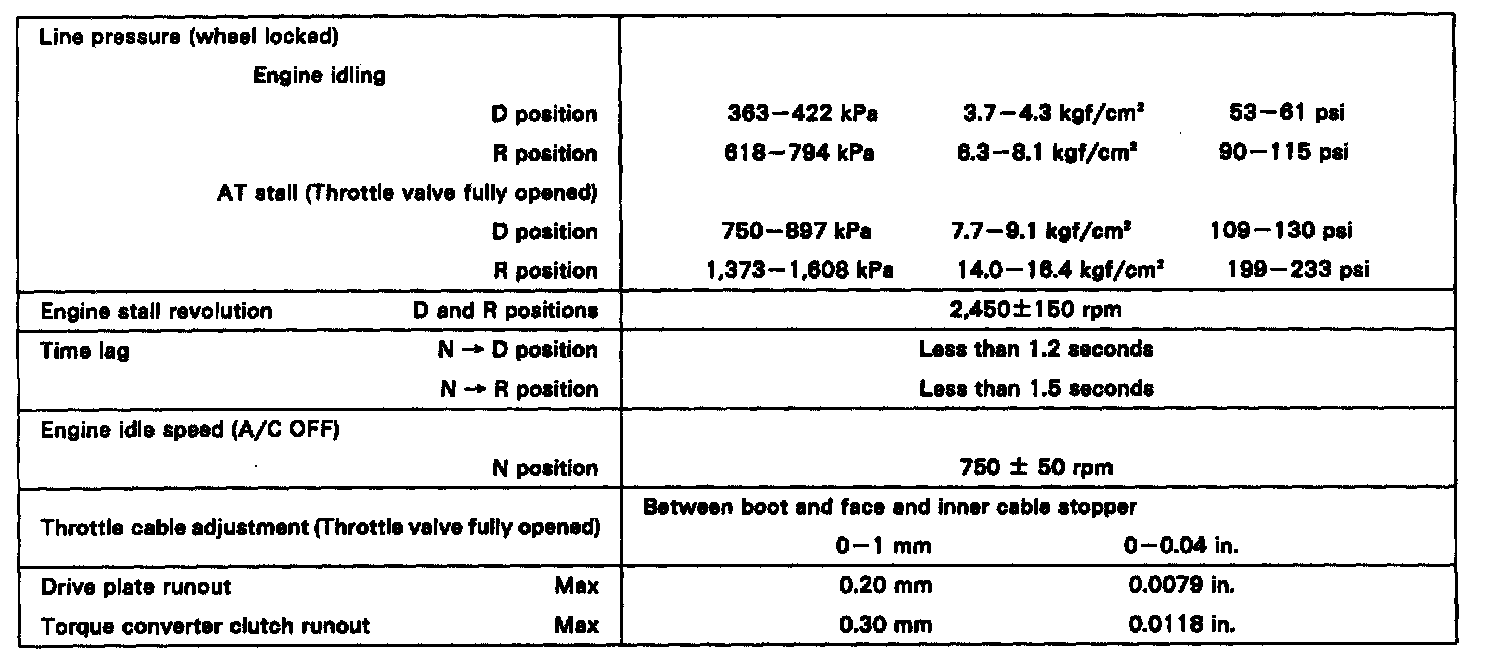

SERVICE DATA





SHIFT POINT
Normal Pattern
@ty95camry_rm2ax1-080a


Power Pattern

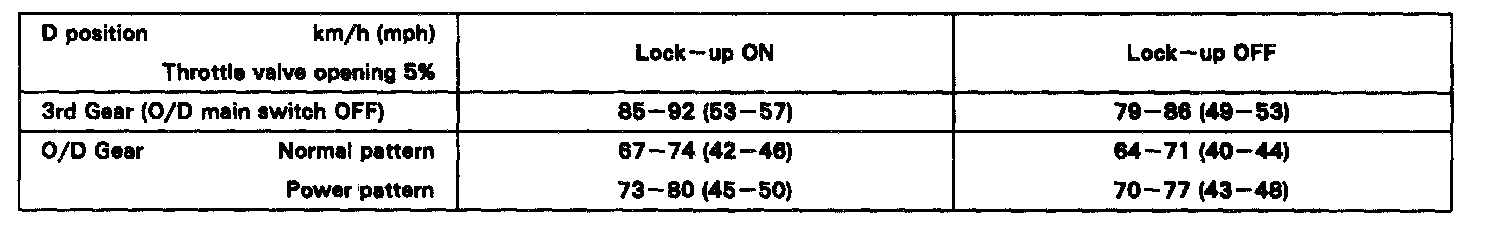

LOCK-UP POINT
