Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1995
>>
Camry Sedan 4-Door V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Up Control Valve
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
Scan Tool Testing and Procedures
INSPECTION PROCEDURE -

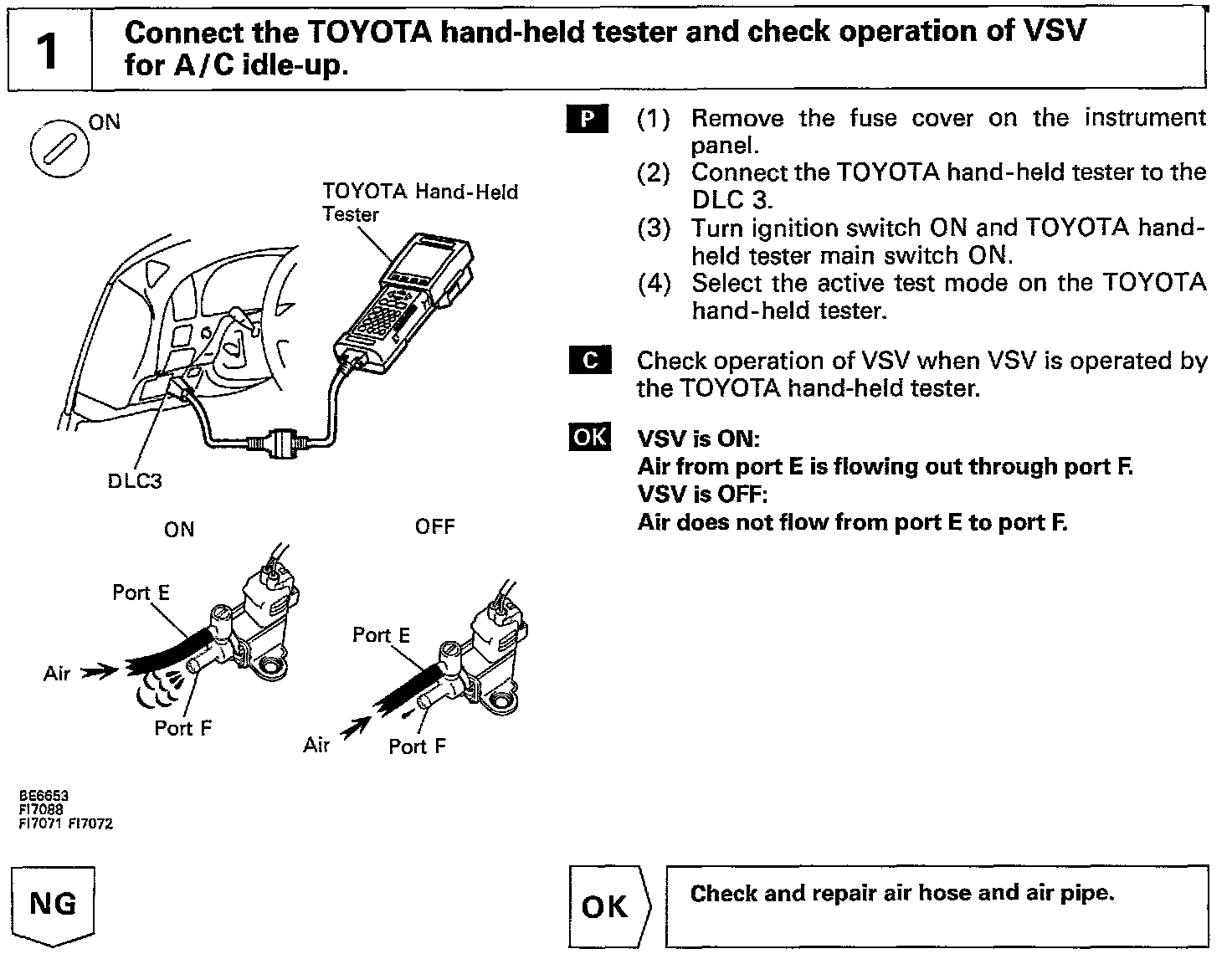

With TOYOTA hand-held tester
INSPECTION PROCEDURE -
With OBDII scan tool (excluding TOYOTA hand-held tester)
