Home >> Toyota >> 1995 >> Camry Sedan 4-Door V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

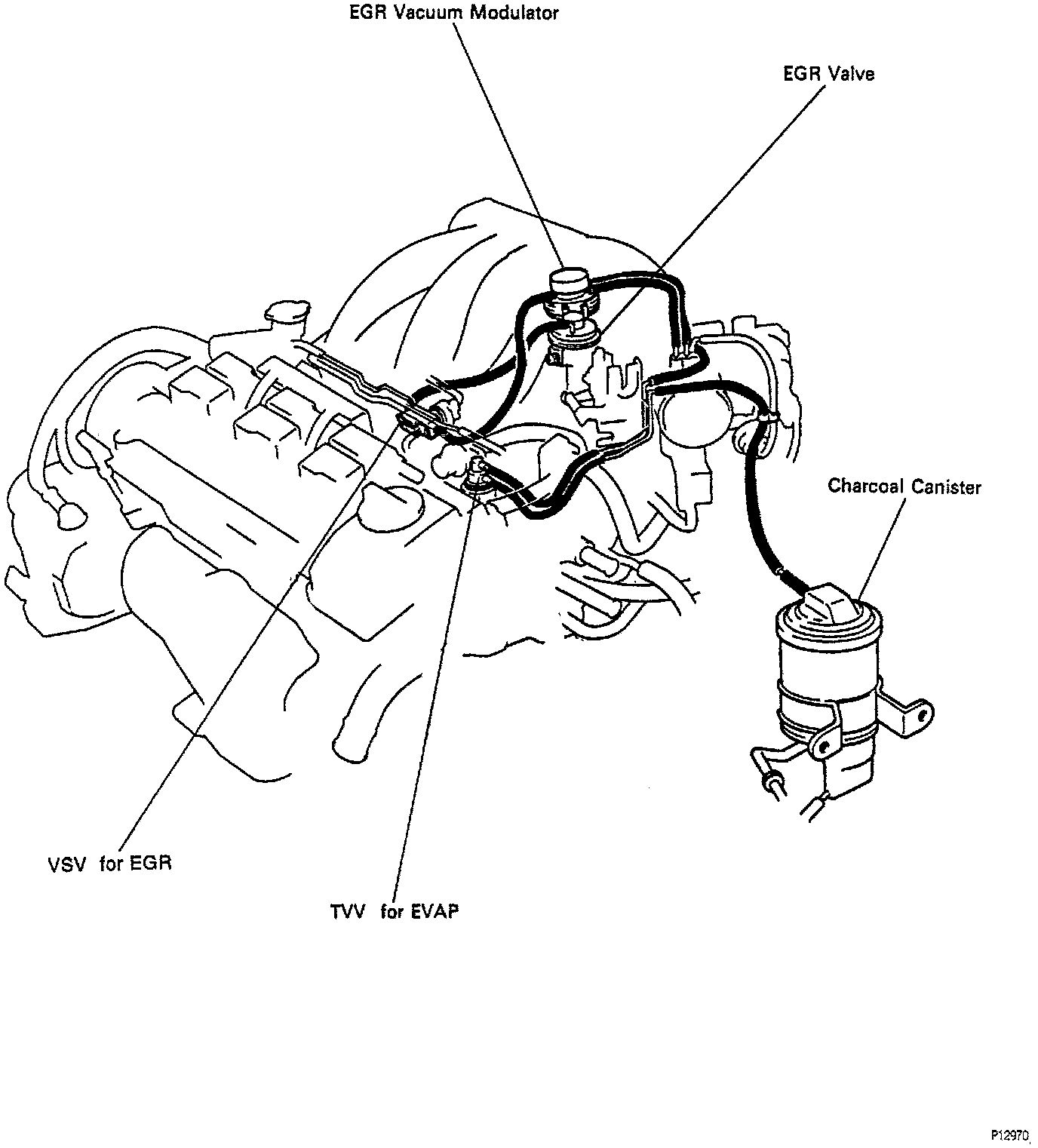

Emission Control Components Layout And Vacuum Hose Routing:
