Data Link Connector: Testing and Inspection
CIRCUIT DESCRIPTIONTerminals TE1 and TE2 are located in the data link connector 1.
The data link connector 1 is located in the engine compartment. When these terminals are connected with the E1 terminal, diagnostic codes in normal mode or test mode can be read from the malfunction indicator lamp in the combination meter.

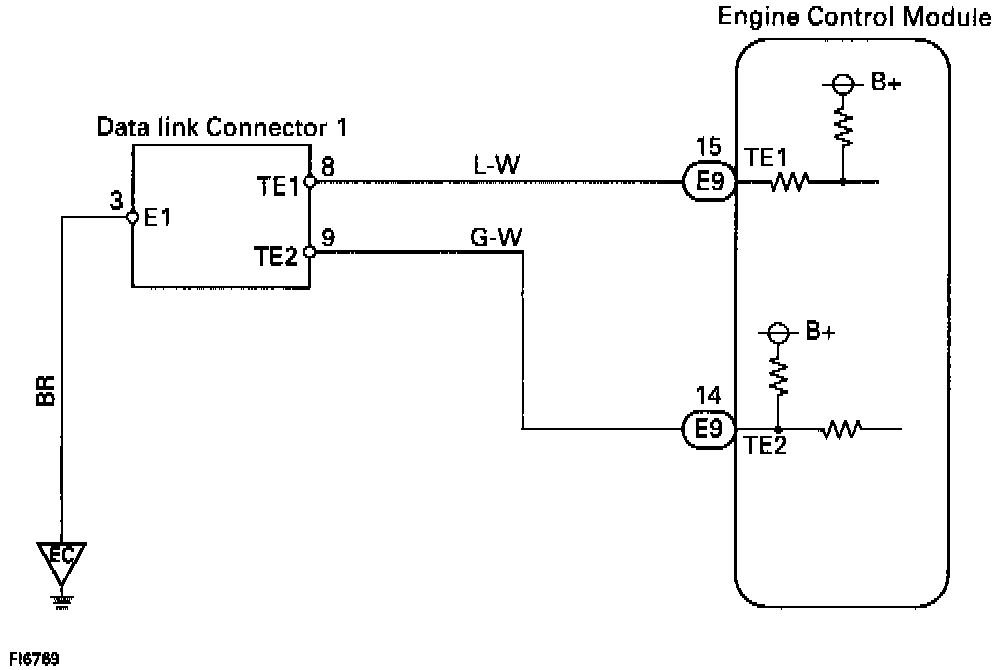

WIRING DIAGRAM FOR TE1, TE2 TERMINAL CIRCUIT

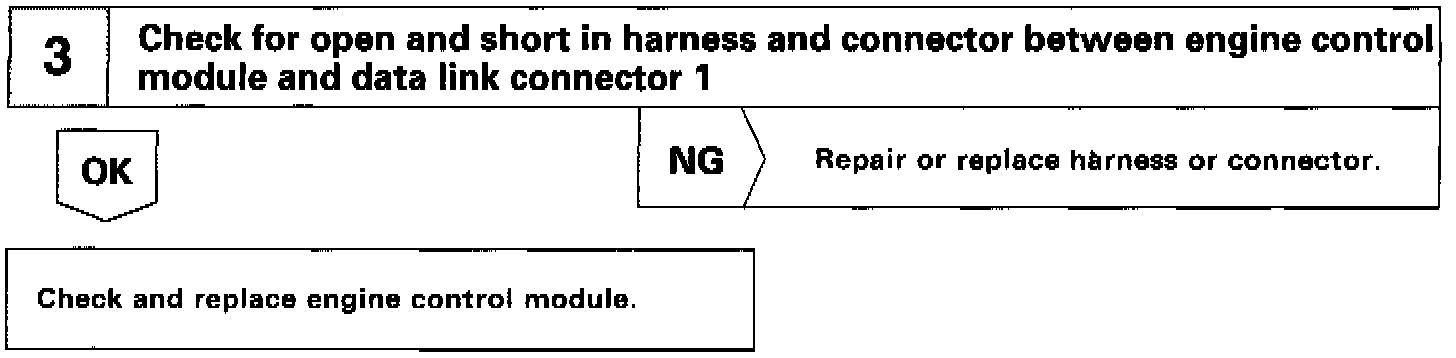

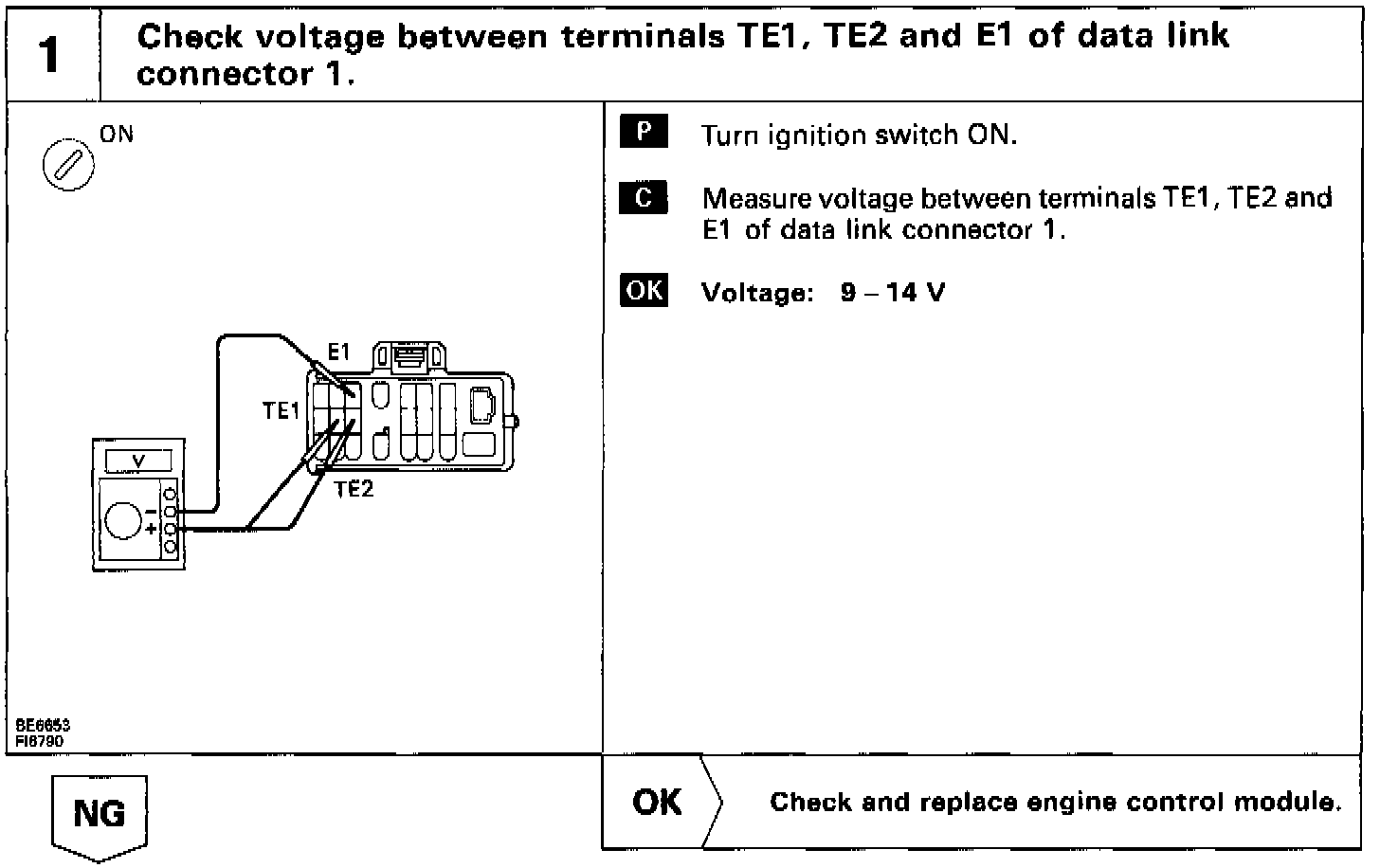

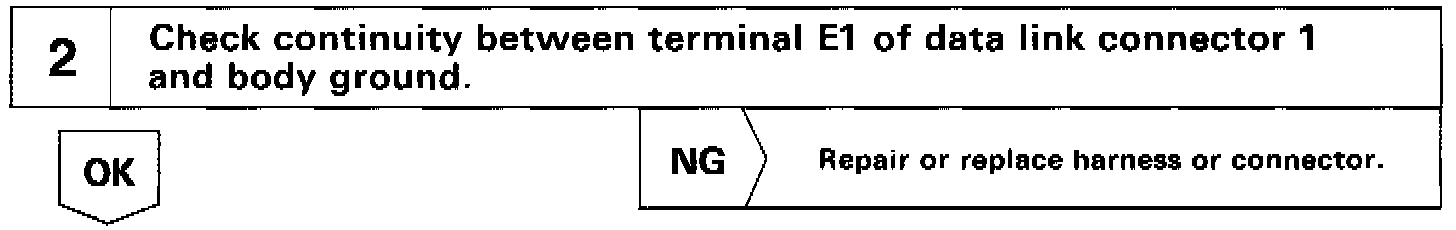

CIRCUIT INSPECTION PROCEDURE
