Steering Control Module
>>
Wiring Diagrams
Wiring Diagrams

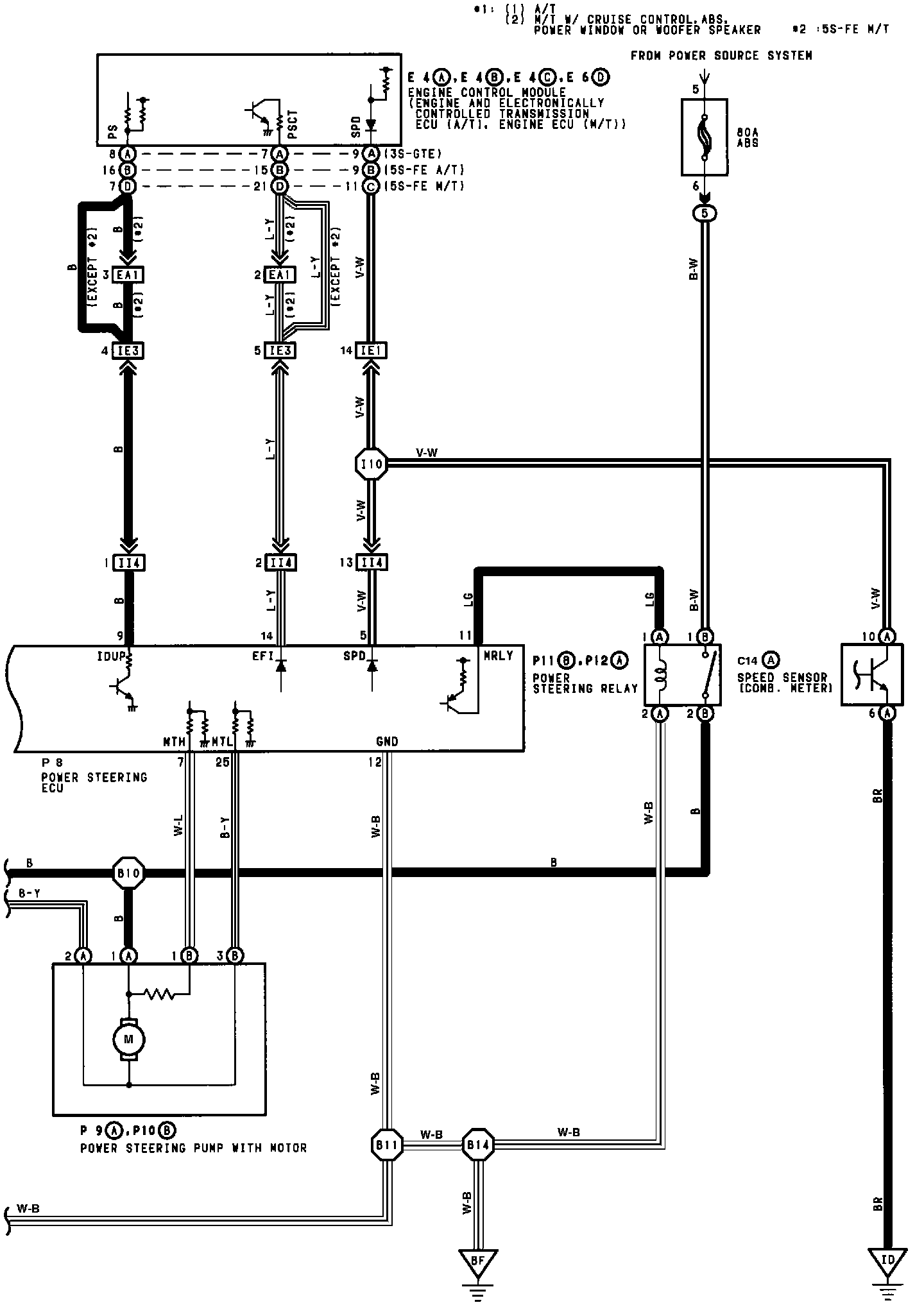

EHPS (Electro Hydraulic Power Steering) (Part 1 Of 2):
EHPS (Electro Hydraulic Power Steering) (Part 2 Of 2):
