MR2 L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Engine Compartment
Engine Compartment

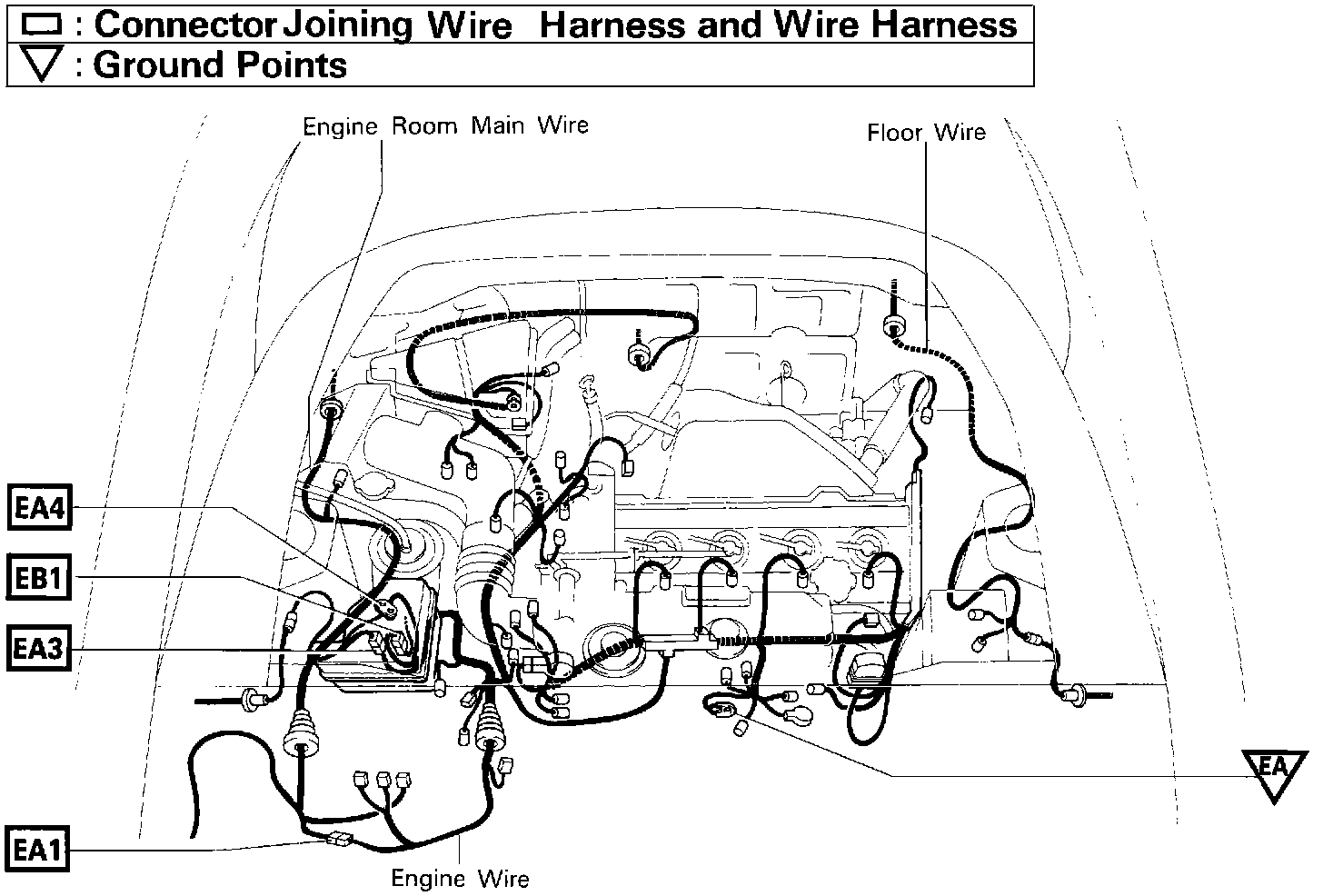

Location Of Connector Joining Wire Harness And Wire Harness Ground Points (Fig 28):
