Control Module Pinout Values
>>
Resistance Values
Resistance Values

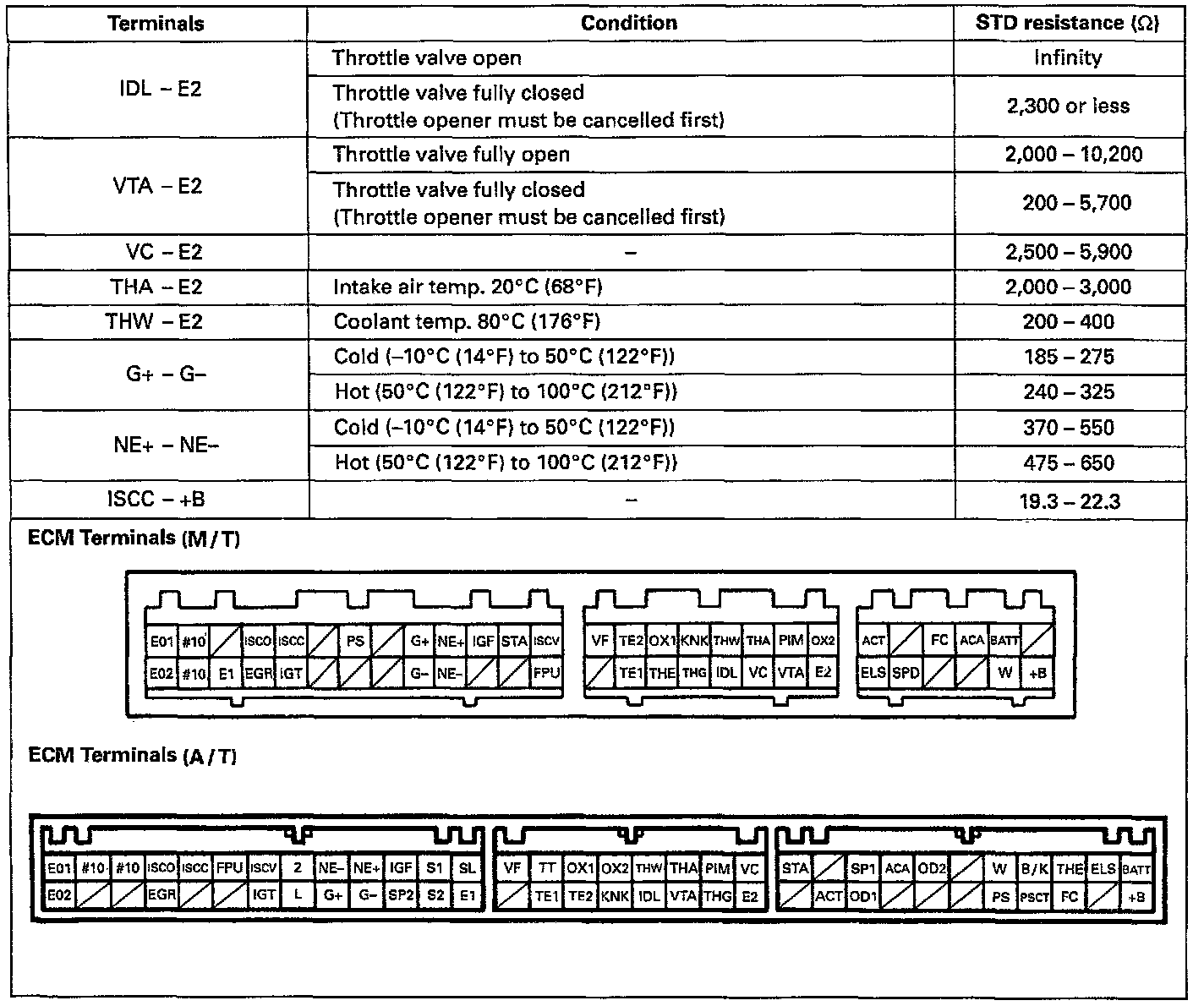

Resistance Of ECM Wiring Connectors:
