Symptom Related Diagnostic Procedures

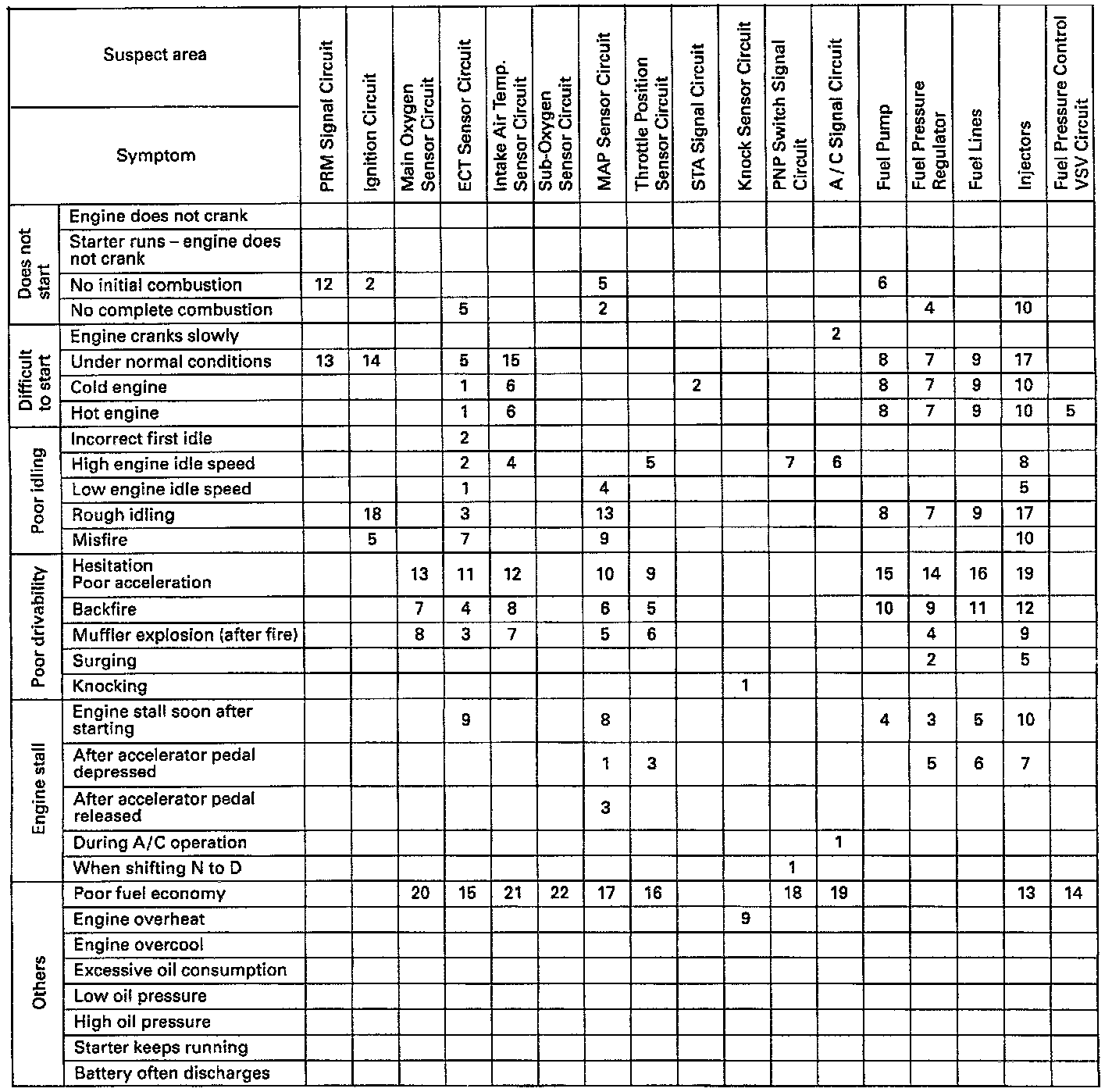

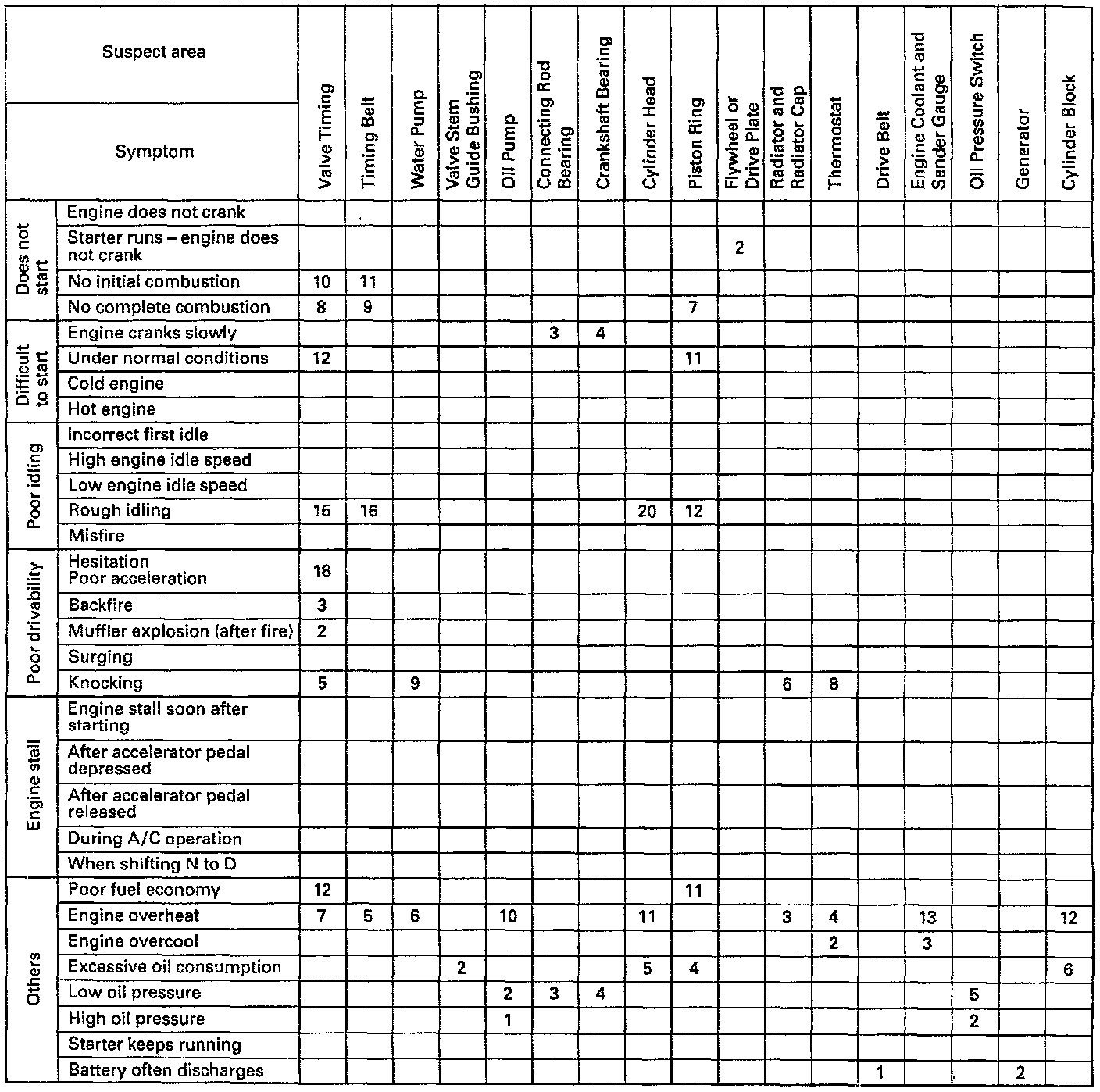

Use the charts below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order indicated and replace faulty parts as necessary.
