Symptom Related Diagnostic Procedures

Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check and replace each part in the order shown.

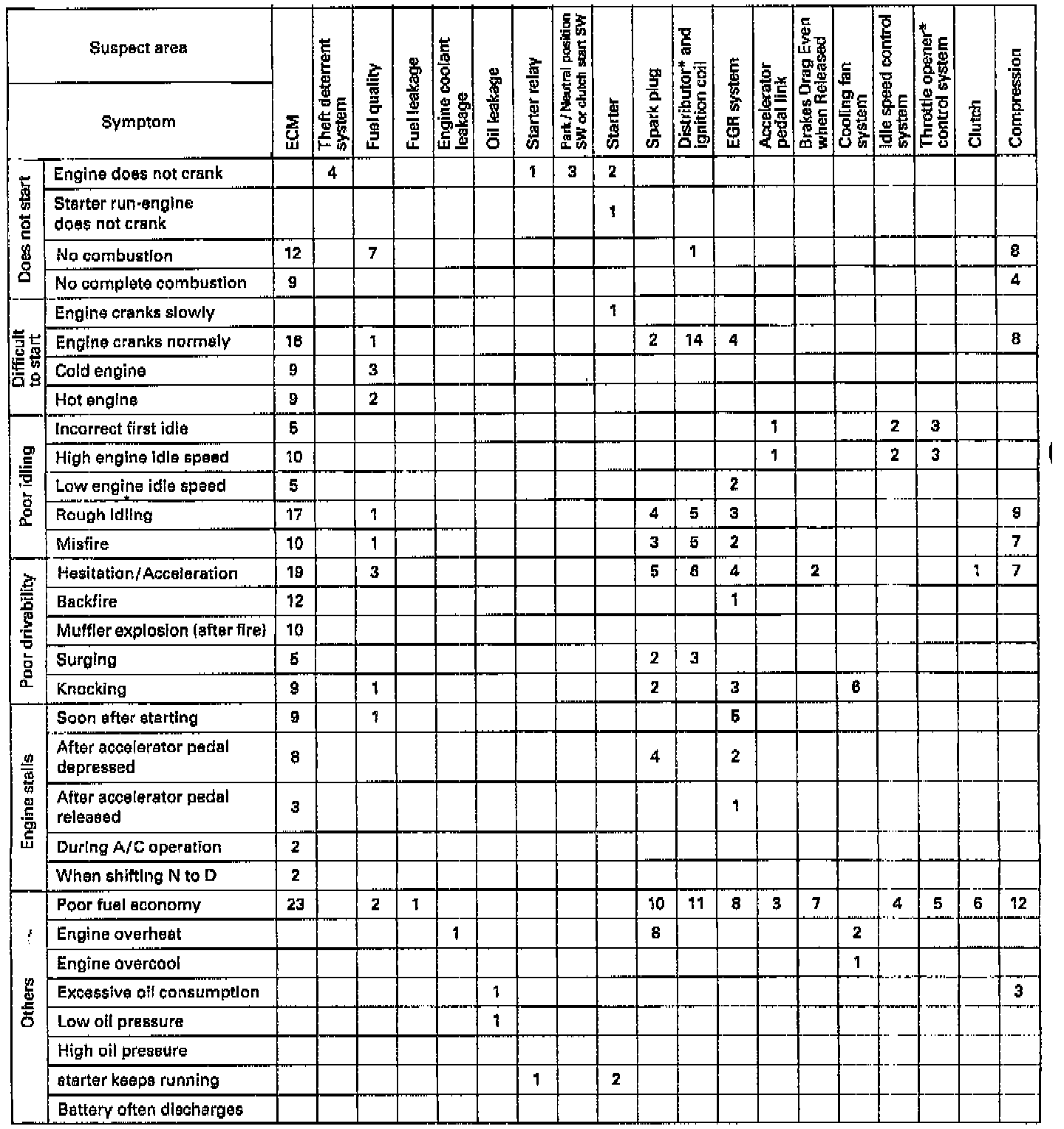

Matrix Chart Of Problem Symptoms ( Part 1 Of 3 ):

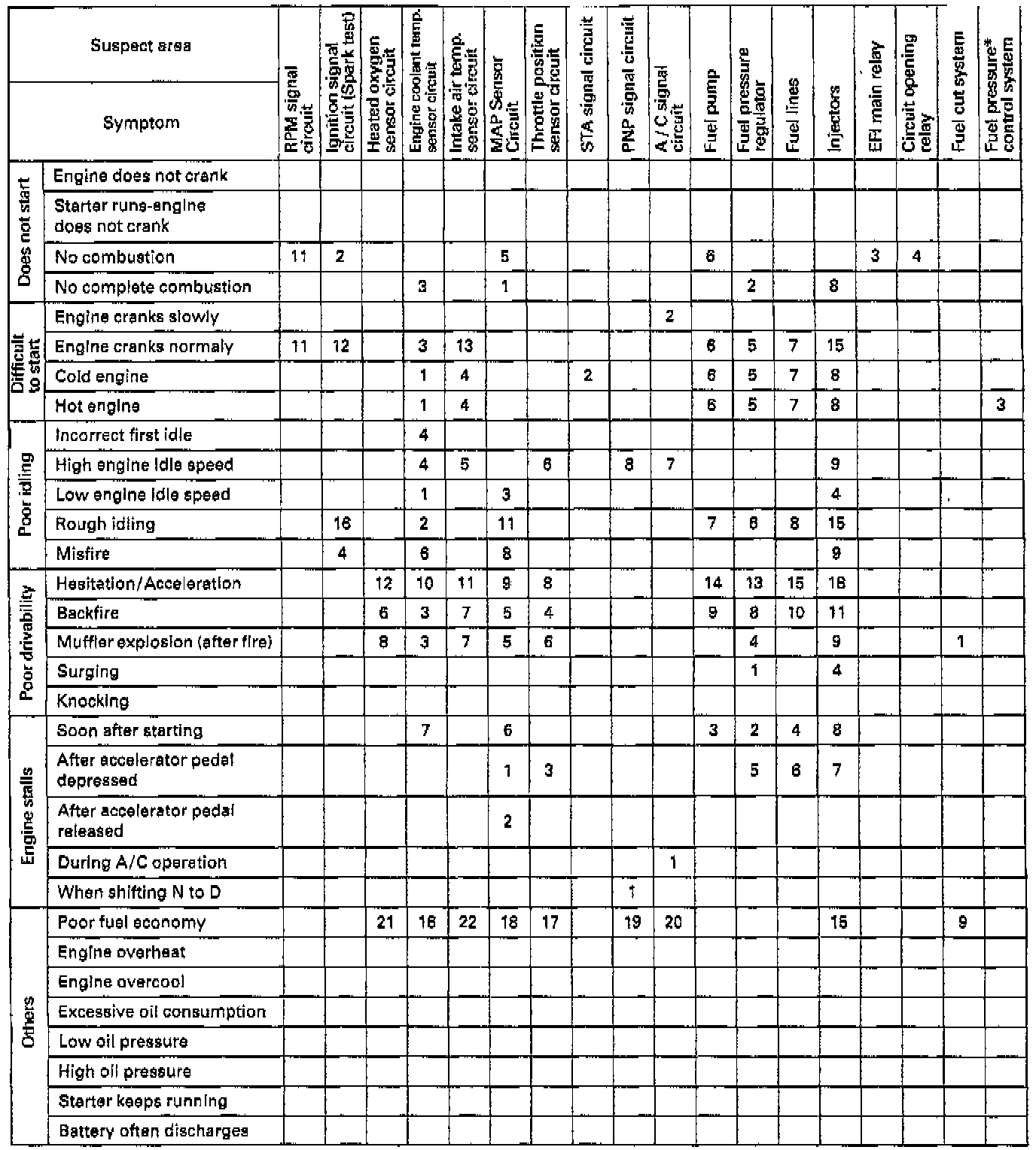

Matrix Chart Of Problem Symptoms ( Part 2 Of 3 ):

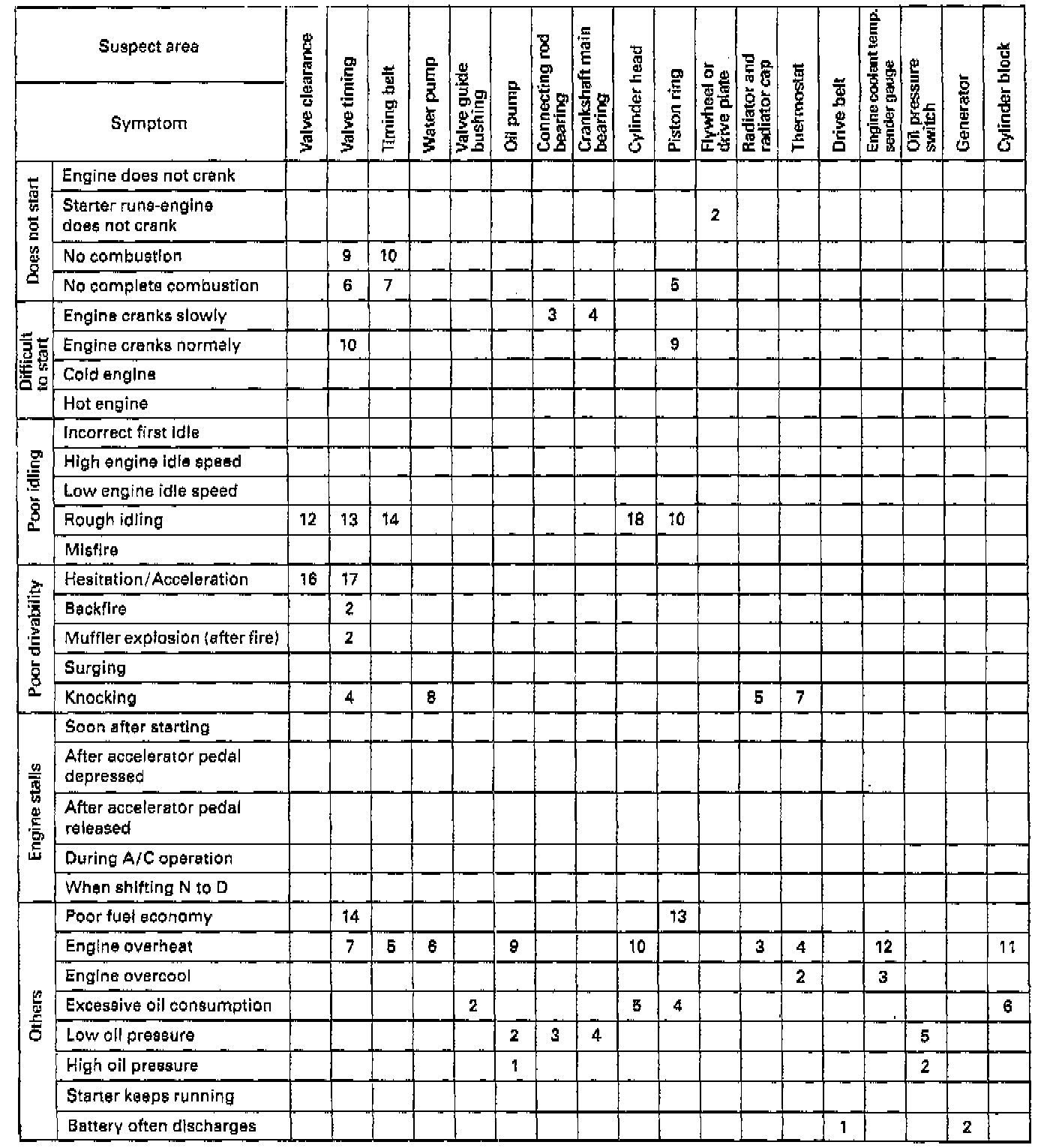

Matrix Chart Of Problem Symptoms ( Part 3 Of 3 ):

* Federal Vehicles Only

HINT: Refer to the electrical wiring diagrams when inspecting a wire harness or circuit, and the circuits of related systems also should be checked.
