Home >> Toyota >> 1995 >> Paseo L4-1497cc 1.5L DOHC (5E-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Federal Vehicles >> With Automatic Transmission

With Automatic Transmission

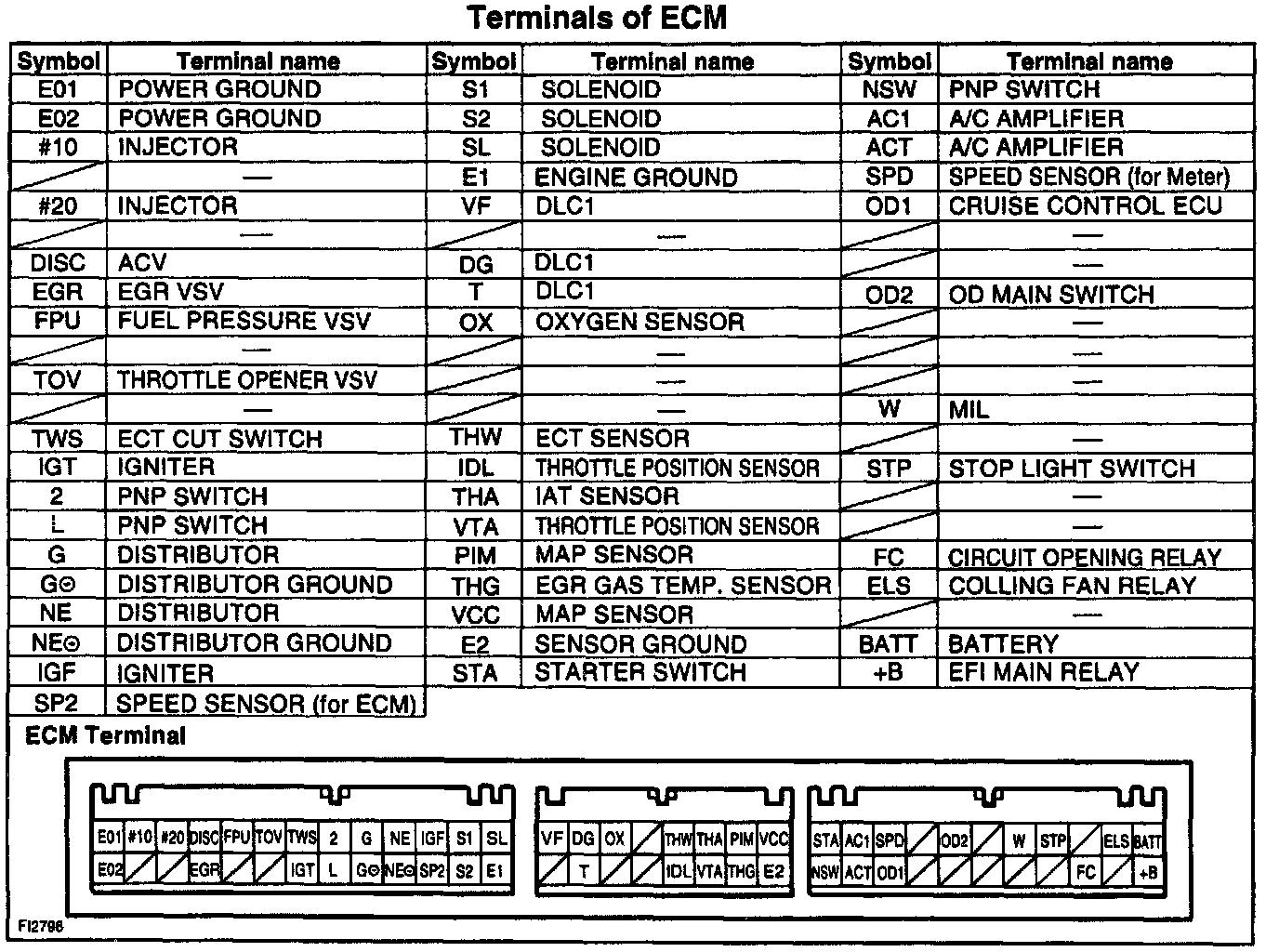

Federal Vehicles With Automatic Transmission:
