Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1995
>>
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
Engine Control Module
>>
Engine Operating Conditions
Engine Operating Conditions

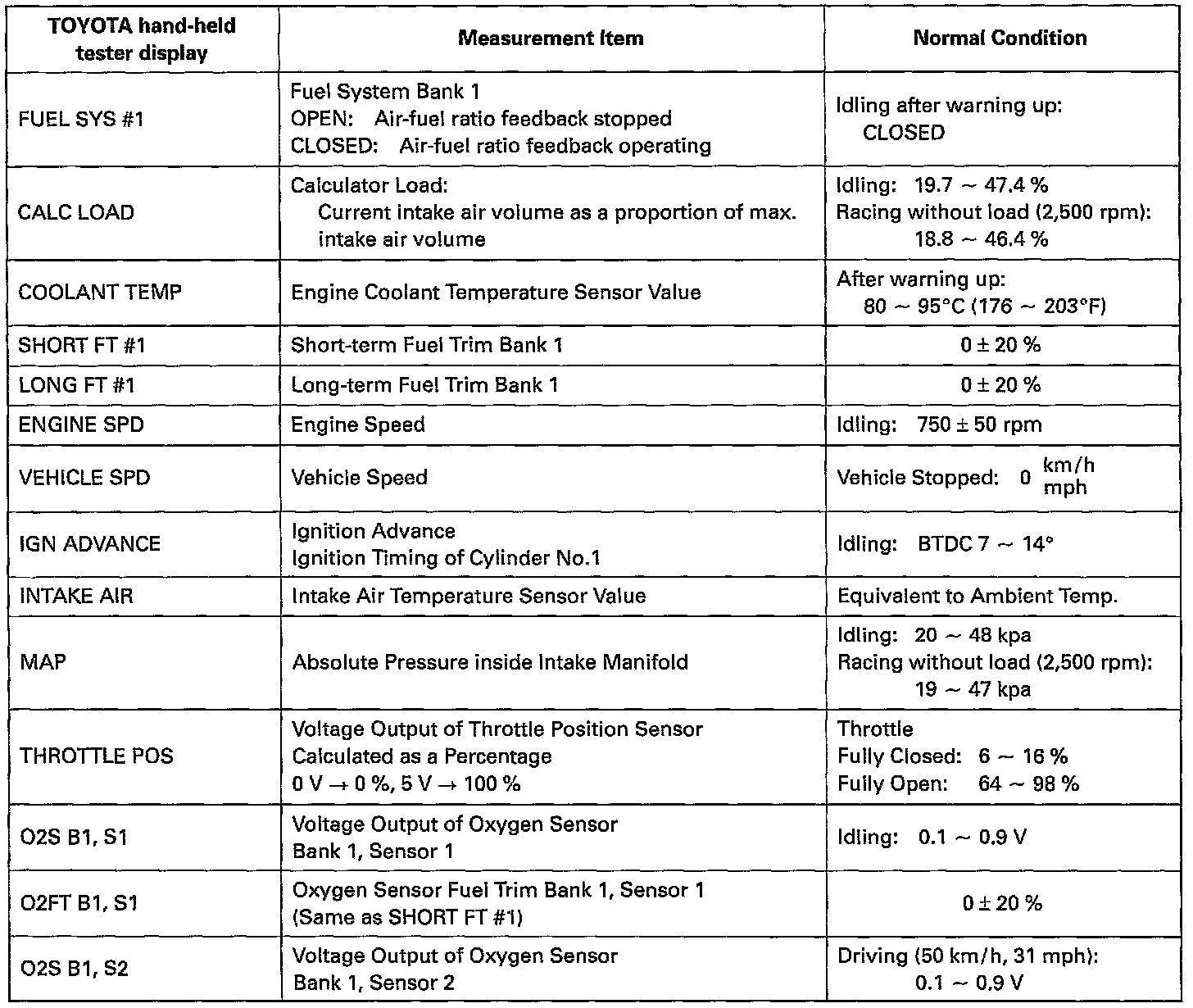

CARB Mandated Signals:

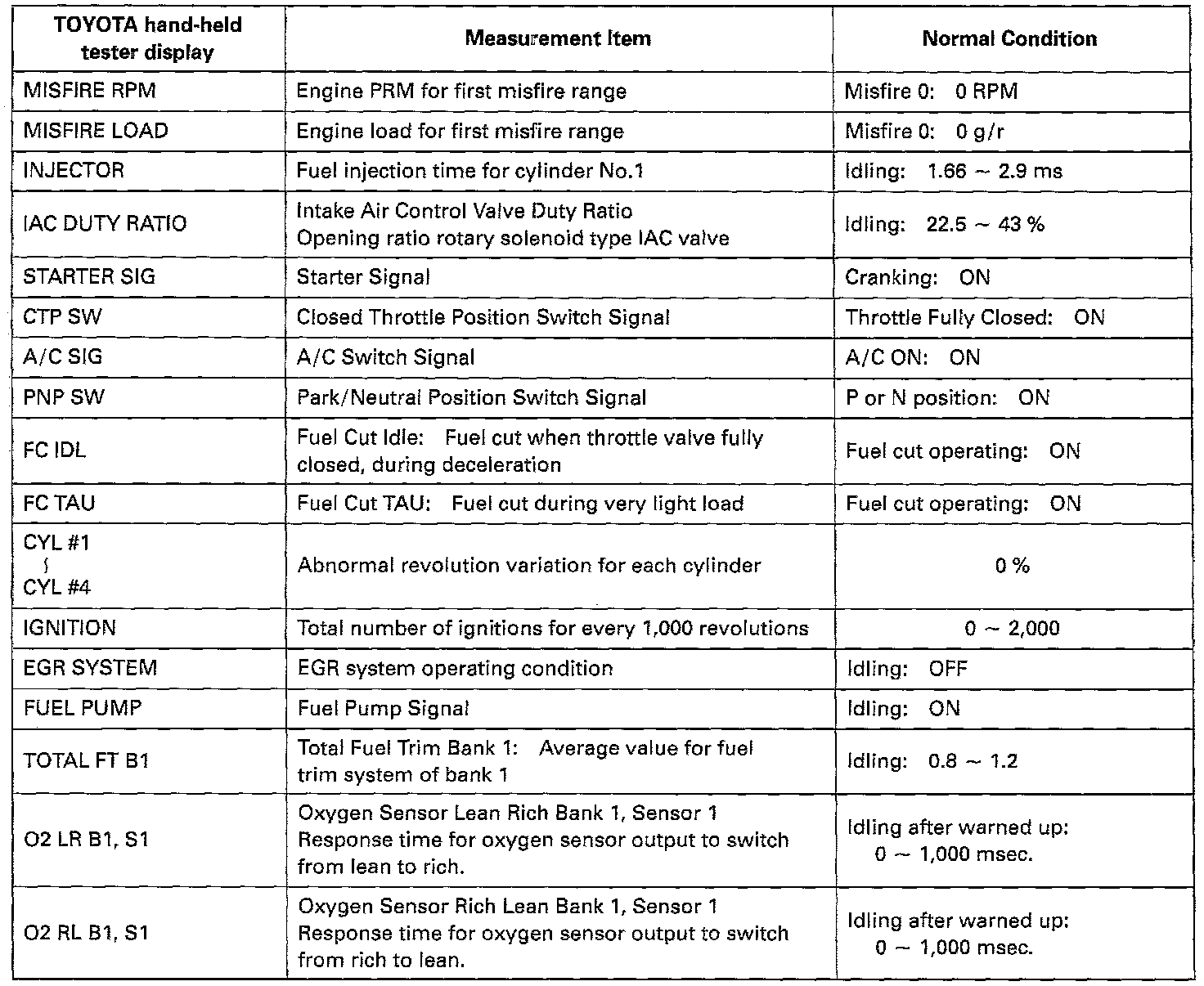

Toyota Enhanced Signals:
