System Specifications

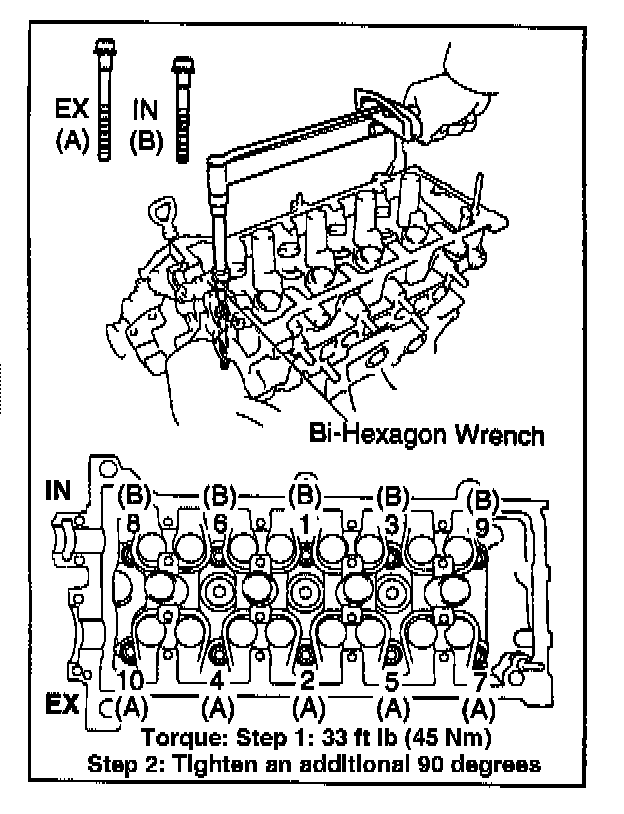

Cylinder Head Bolt Torque Sequence:

Cylinder Head Torque Sequence

Tightening torque:
Step 1 ..... 45 Nm (33 ft lb)
Step 2 ..... tighten additional 90°

Component specifications not listed above are found under Engine Specifications. Mechanical Specifications
