Control Assembly: Adjustments

AIR CONDITIONING [1][2]CONTROL CABLE ADJUSTMENT







1. ADJUST AIR MIX DAMPER [1][2]CONTROL CABLE

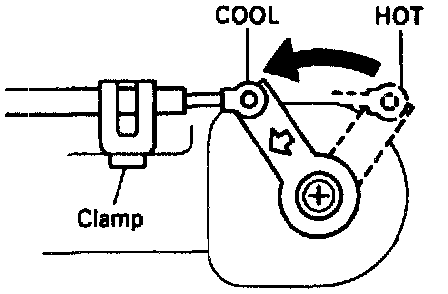

Set the air mix damper and the control switch to COOL position. install the control cable and lock the clamp while lightly pushing the outer cable in the direction shown by arrow.







2. ADJUST WATER VALVE [1][2]CONTROL CABLE

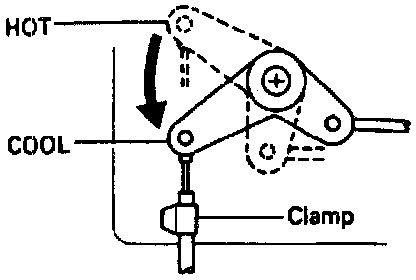

Set the water valve and control switch to COOL position, install the control cable and lock the clamp while lightly pushing the outer cable in the direction shown by the arrow.
