Alignment
DIMENSIONSCamber
Front:
Nominal -0°46' ± 45' (-0.77° ± 0.75°)
Left-Right Error 45' (0.75°) or less
Rear:
Nominal -1°10' ± 45' (-1.17° ± 0.75°)
Left-Right Error 45' (0.75°) or less
Caster
Nominal 2°05' ± 45' (2.08° ± 0.75°)
Left-Right Error 45' (0.75°) or less
Toe-In
Front:
Nominal:
Degrees 0° ± 12' (0° ± 0.2°)
Linear 0 ± 2 mm (0 ± 0.08 inch)
Tie Rod End:
Length Difference 1.5 mm (0.059 inch) or less
Rear:
Nominal:
Degrees 0°21' ± 12' (0.35° ± 0.2°)
Linear 3.5 ± 2 mm (0.14 ± 0.08 inch)
No.2 Lower Suspension Arm:
Left to Right Difference 1 mm (0.04 inch) or less
Steering Axis Inclination
Nominal 14°58' ± 45'(14.97 ± 0.75°)
Wheel Angle
Inside:
Nominal 36°54' ± 2° (36.90° ± 2°)
Outside:
Reference 30°44' (30.73°)
Vehicle Height
Front [1]:
Tire Size: P185/70R14 187.6 mm (7.39 inch)
Tire size: P205/55R15 182.6 mm (7.19 inch)
Rear [2]:
Tire Size: P185/70R14 255.8 mm (10.07 inch)
Tire size: P205/55R15 250.0 mm (9.84 inch)

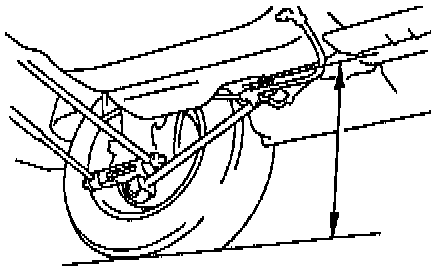

[1] Measure from the ground to the center of the front side lower suspension arm mounting bolt.
[2] Measure from the ground to the center of the strut rod mounting bolt.
