Camshaft

TIGHTENING SPECIFICATIONS
Cap To Cylinder Head: 13 Nm (9 ft. lbs.)

Install and uniformly tighten the bearing cap bolts, in several passes, in the applicable sequences shown.

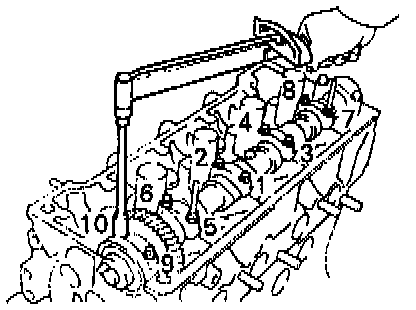

Exhaust Sequence

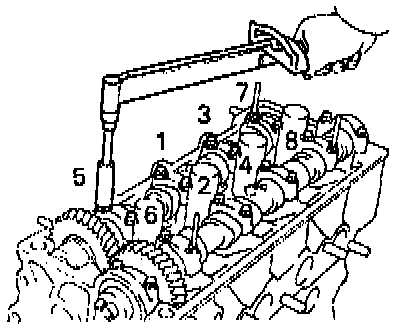

Intake Sequence
