Camshaft Position Sensor: Service and Repair

COMPONENTS FOR REMOVAL AND INSTALLATION

CAMSHAFT POSITION SENSOR REMOVAL

1. DISCONNECT IAC VALVE CONNECTOR
2. DISCONNECT AIR HOSE FROM IAC VALVE
3. REMOVE ENGINE HANGER
Remove the 2 bolts, ground strap and engine hanger.

Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

4. DISCONNECT CAMSHAFT POSITION SENSOR CONNECTORS

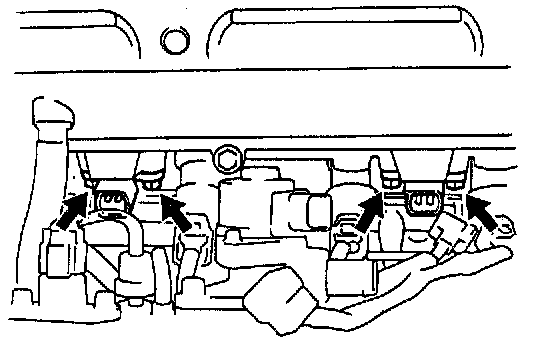

5. REMOVE CAMSHAFT POSITION SENSORS Remove the 4 bolts, 2 camshaft position sensors and 2 gaskets.

Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)

CAMSHAFT POSITION SENSOR INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
