Connector Views and Identification

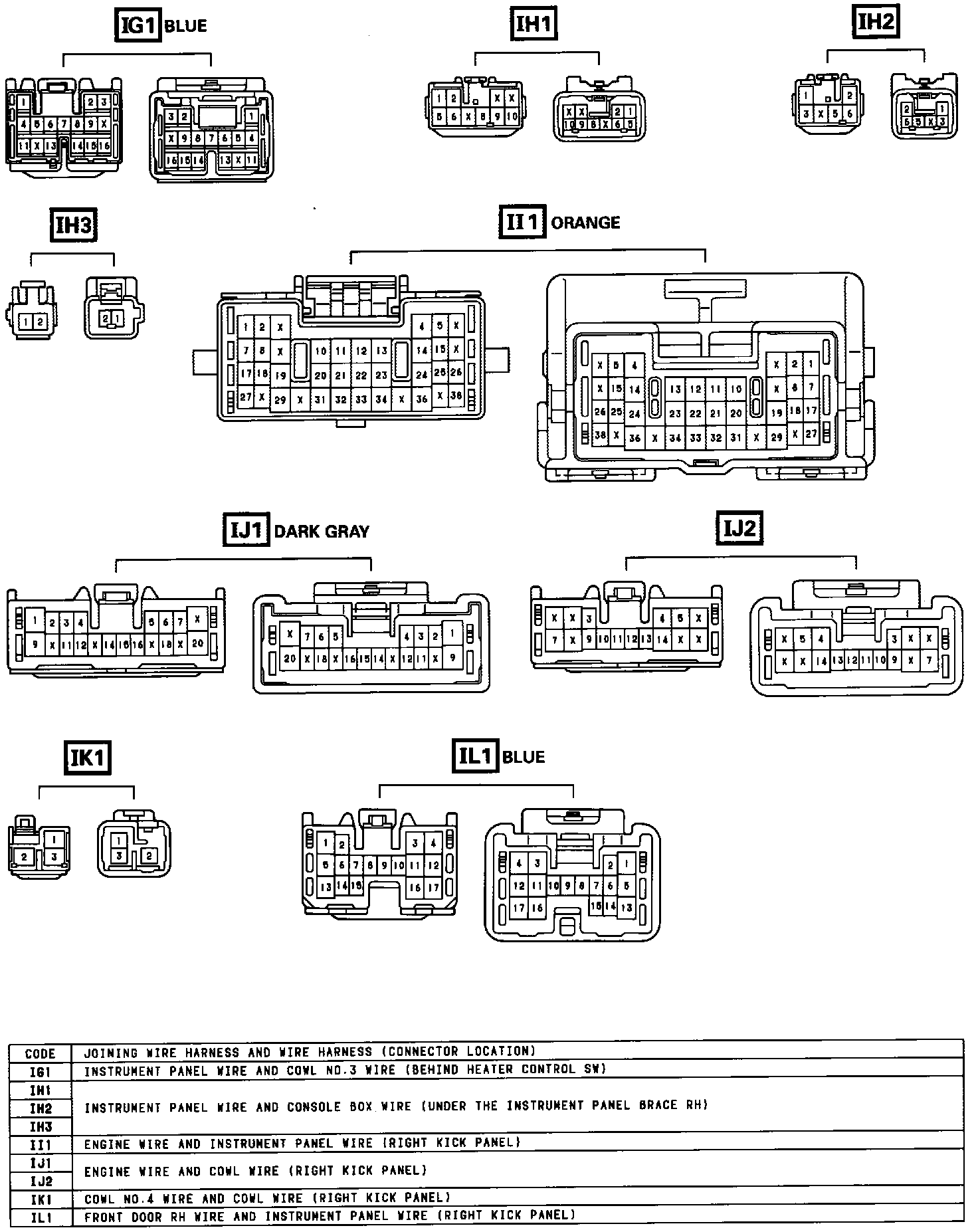

Connector Joining Wire Harness And Wire Harness-Connectors:

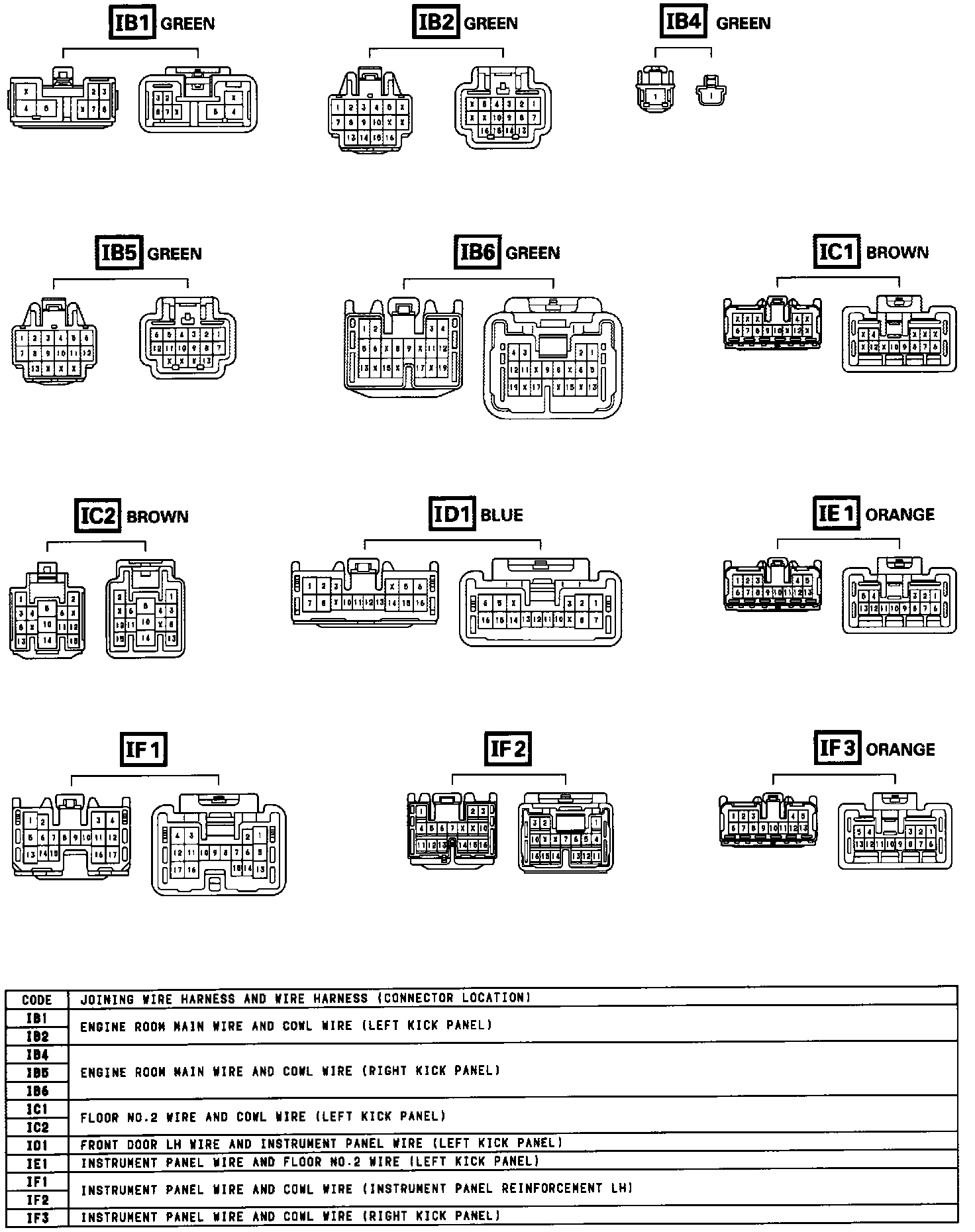

Connector Joining Wire Harness And Wire Harness-Connectors:

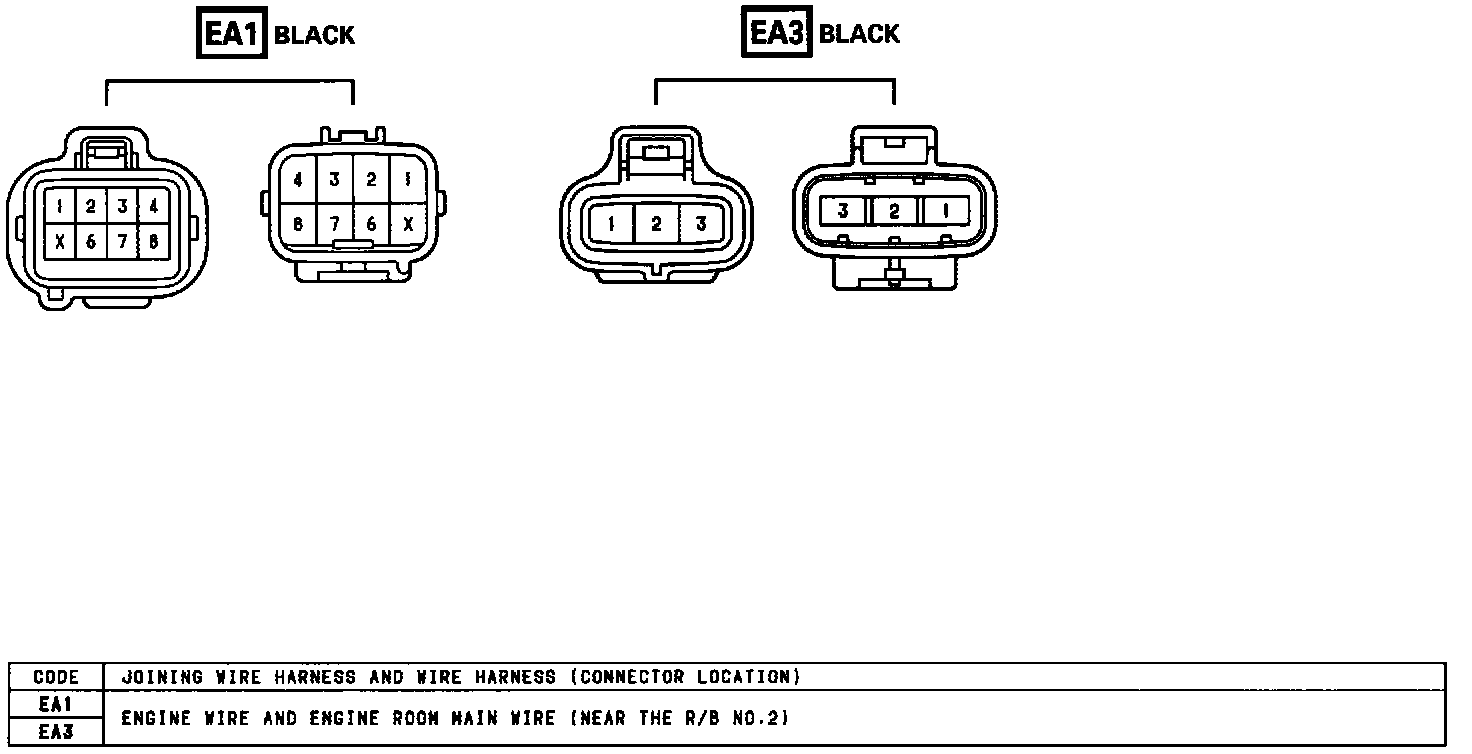

Connector Joining Wire Harness And Wire Harness-Connectors:

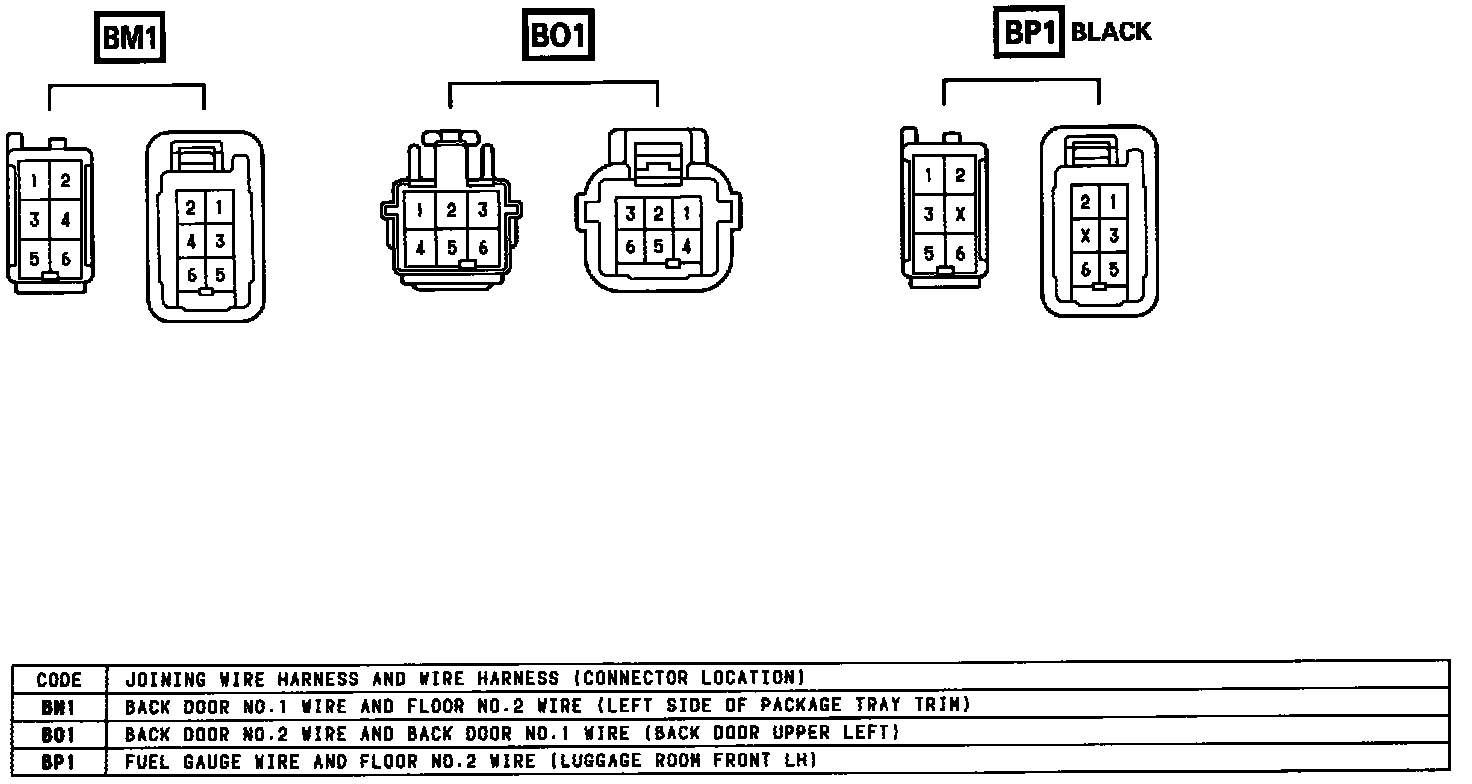

Connector Joining Wire Harness And Wire Harness-Connectors:

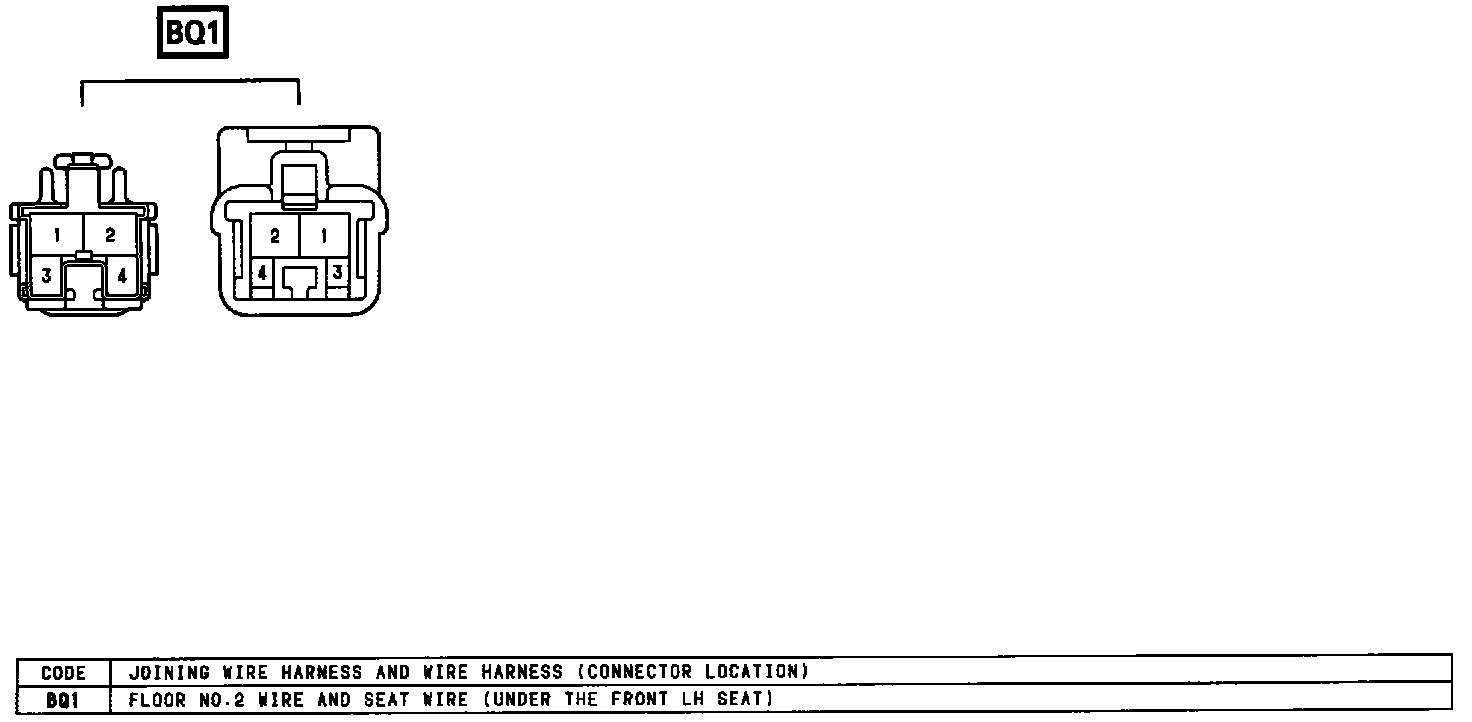

Connector Joining Wire Harness And Wire Harness-connectors:
