Main Relay (Computer/Fuel System): Locations

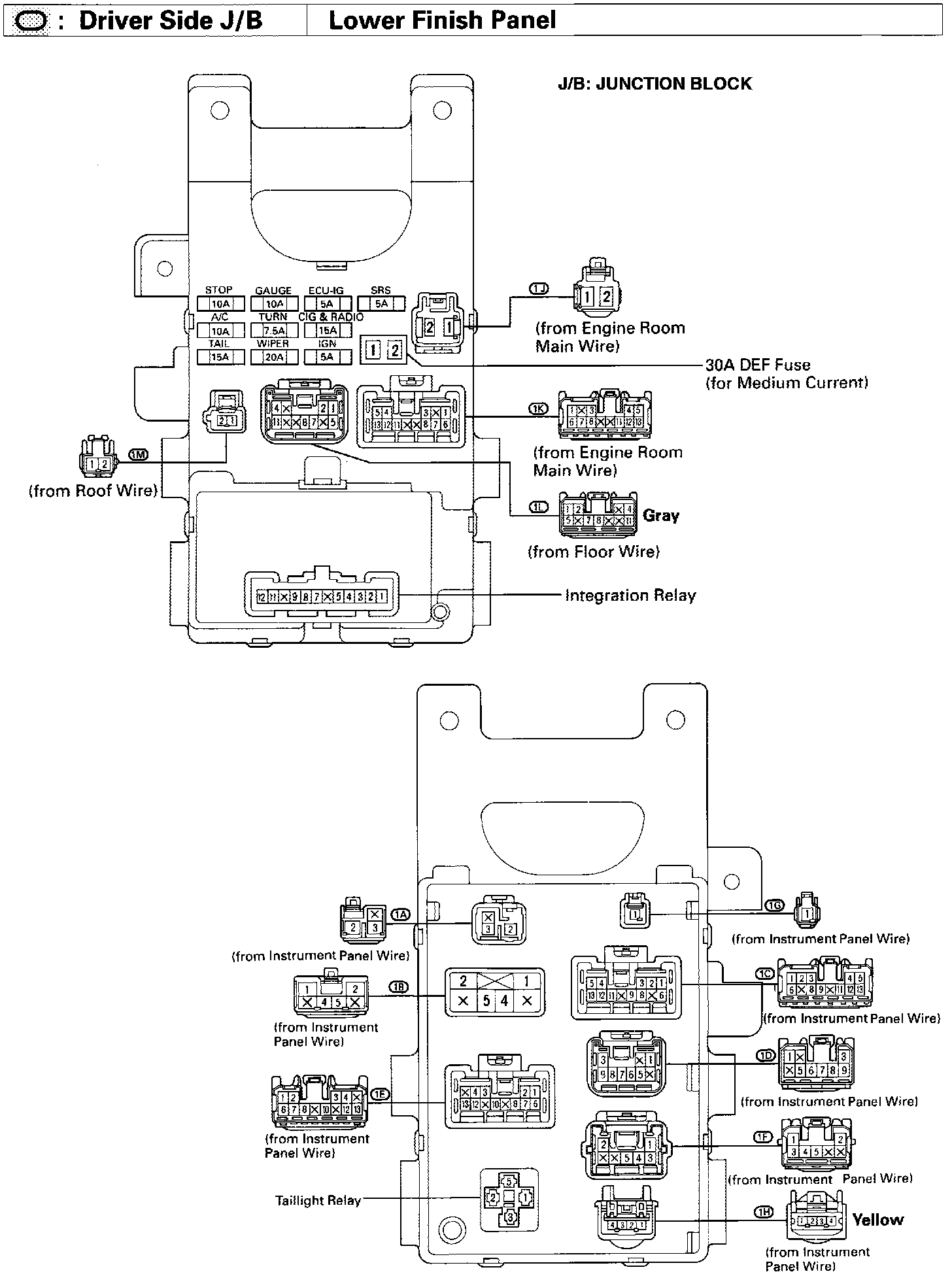

Locations-Driver Side J/B, Lower Finish Panel (Fig 20):

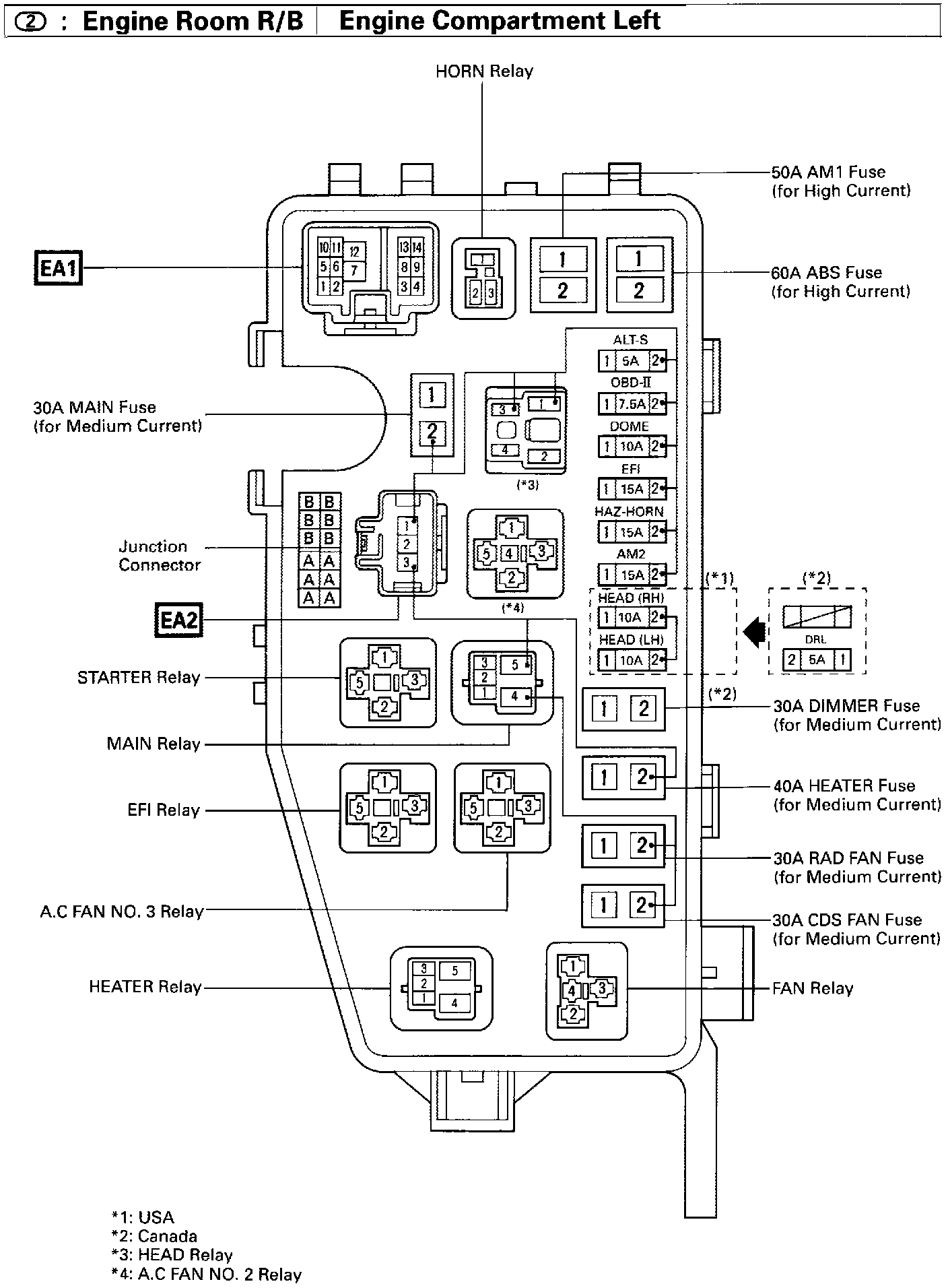

Locations-Engine Room R/B, Engine Compartment Left (Fig 22):

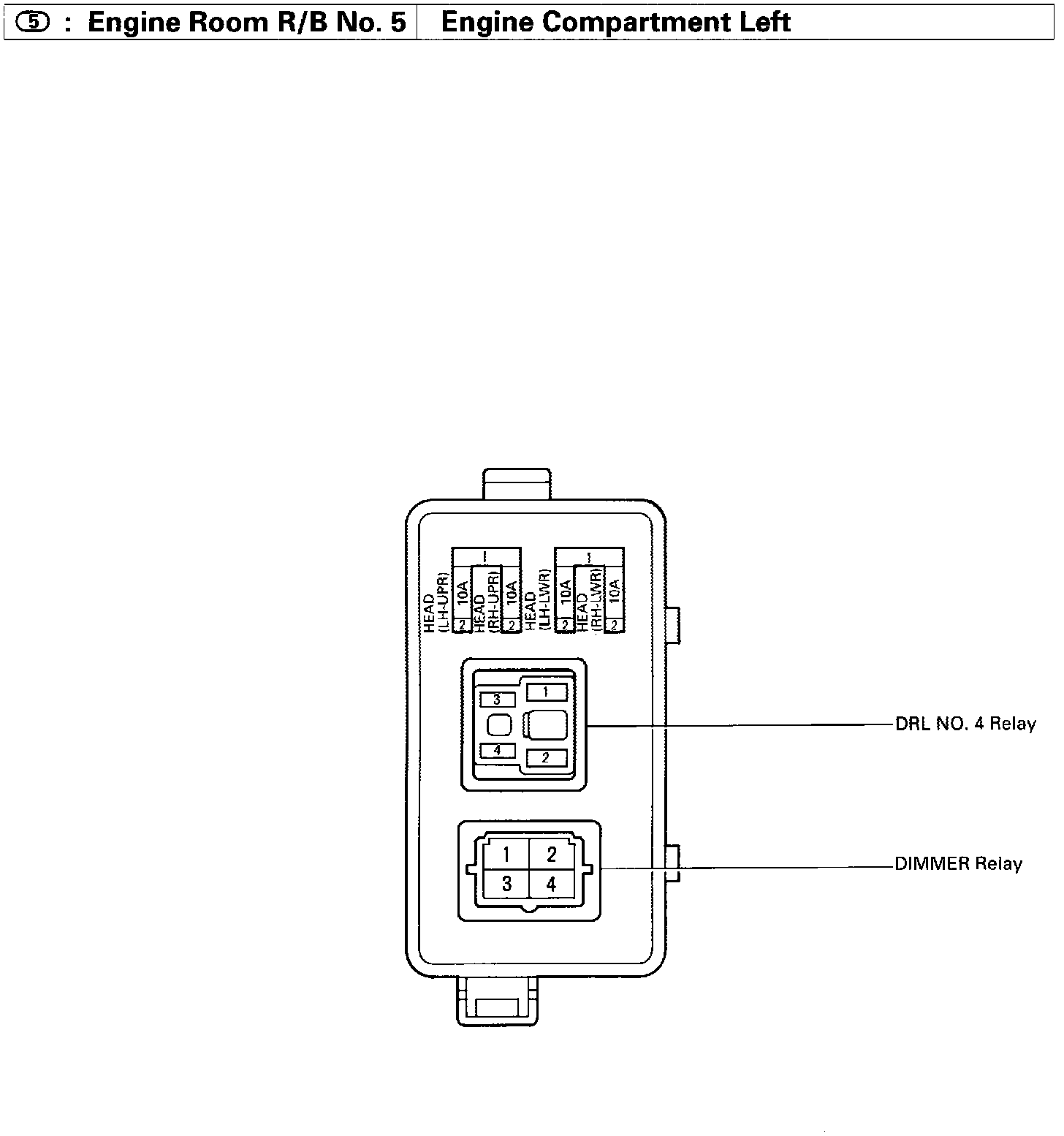

Locations-Engine Room R/B No.5, Engine Compartment Left (Fig 23):

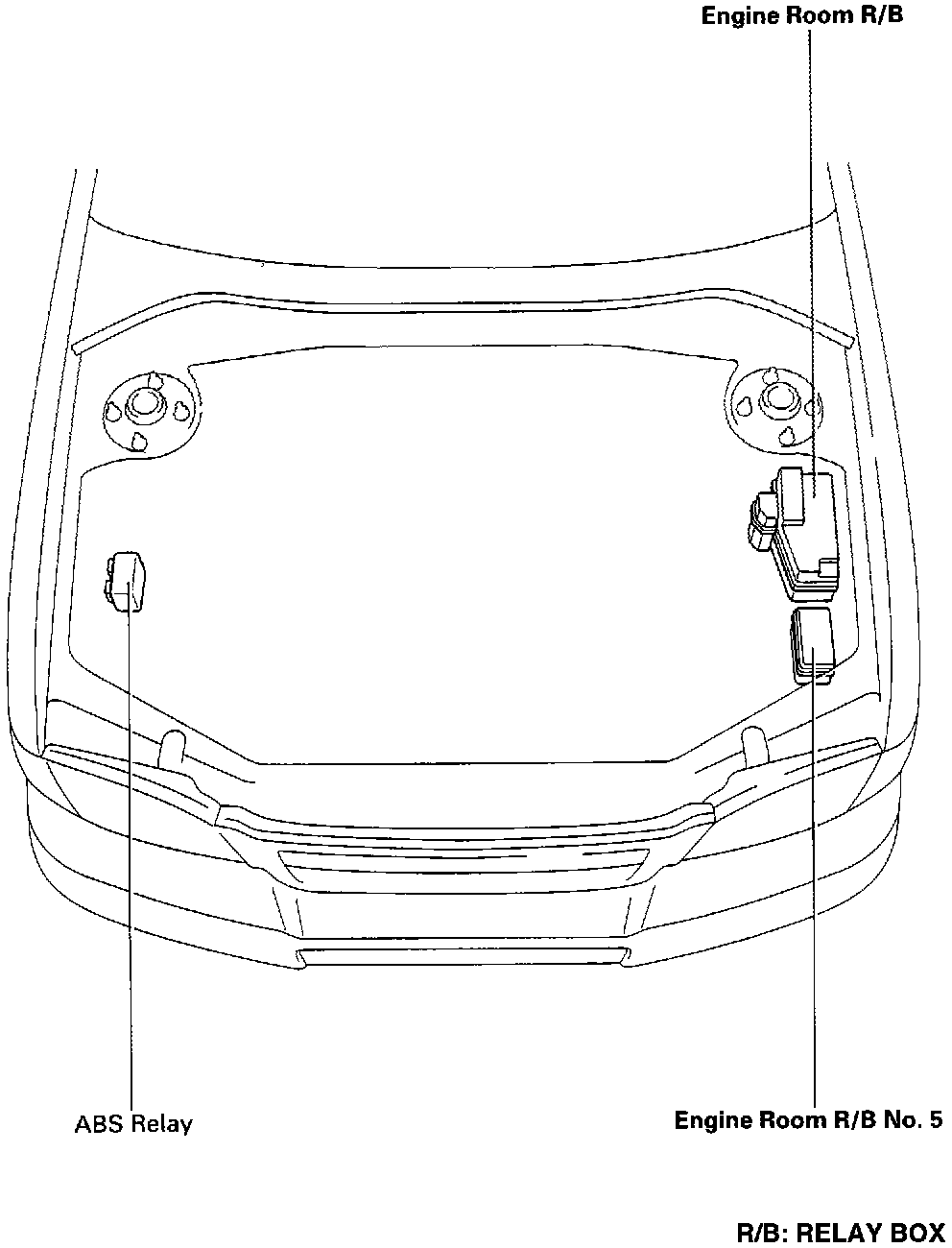

Locations-Engine Compartment (Fig 18):

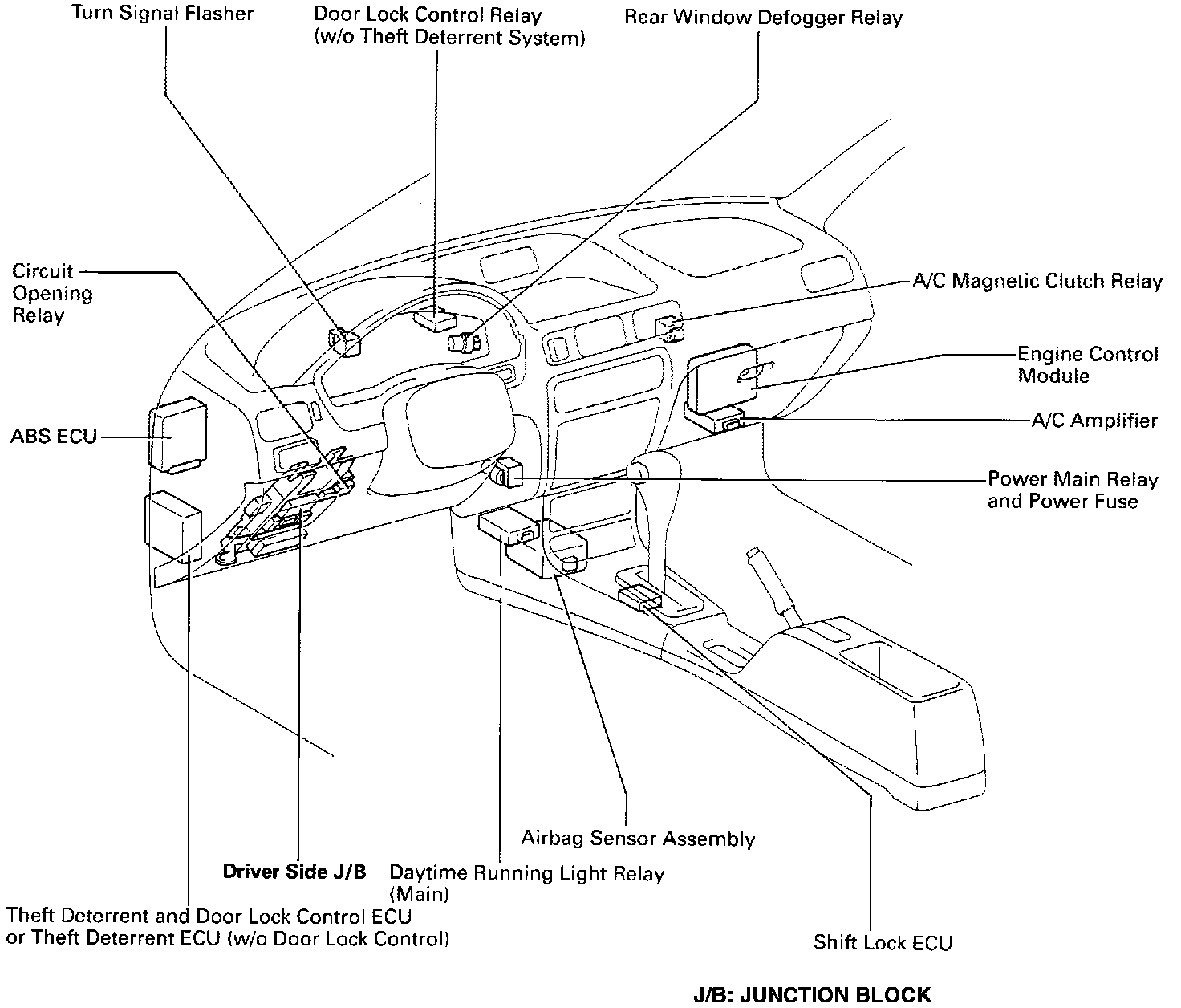

Locations-Instrument Panel (Fig 19):
