Shift Interlock Control Module: Testing and Inspection

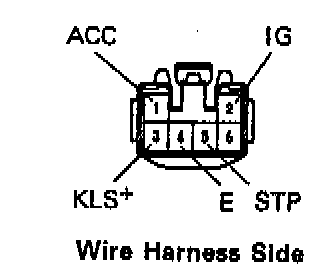

1. Inspect shift lock control Electronic Control unit (ECU).

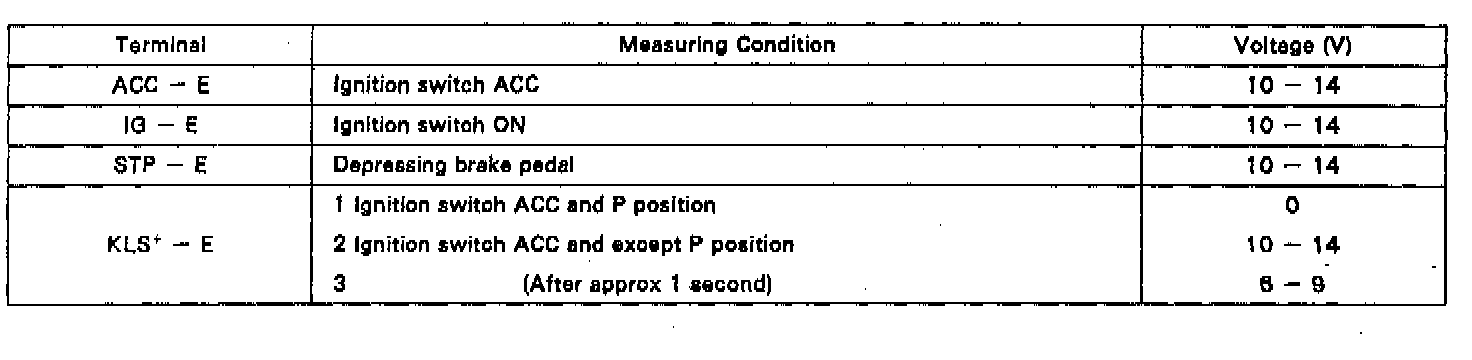

Using a voltmeter, measure the voltage at each terminal.

NOTE: Do not disconnect the ECU connector.
