California

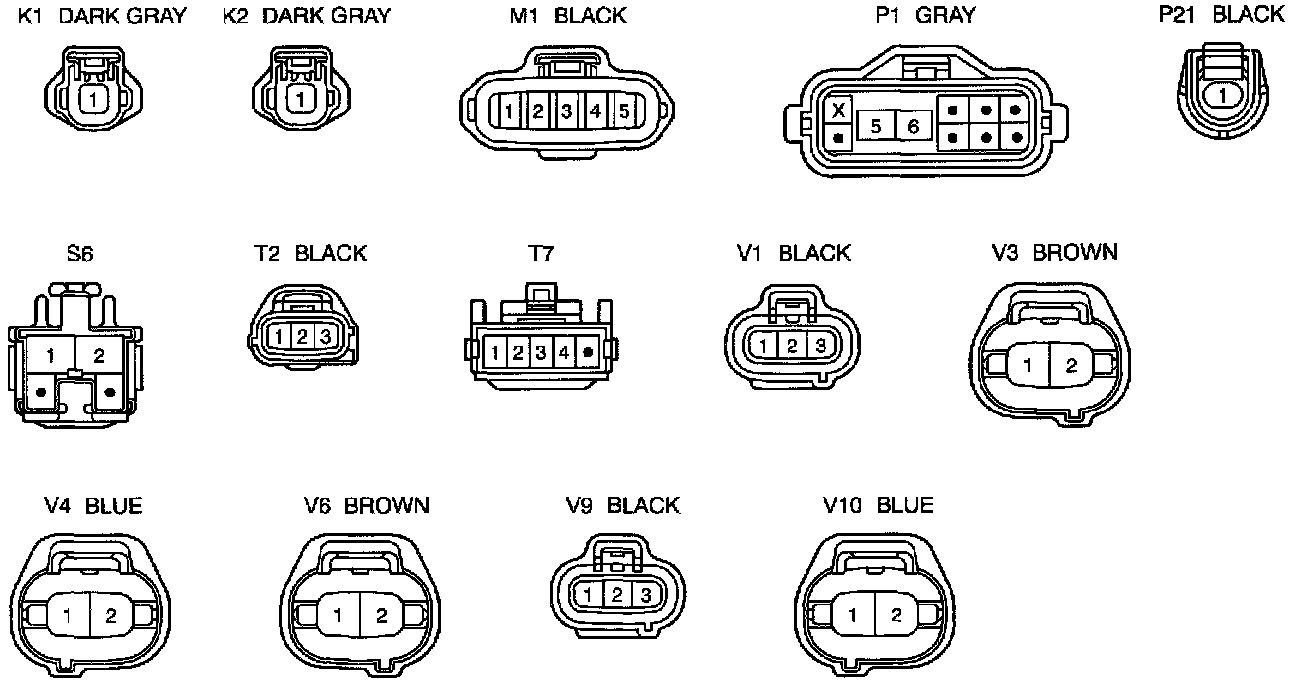

Engine Control (California)-Connectors:

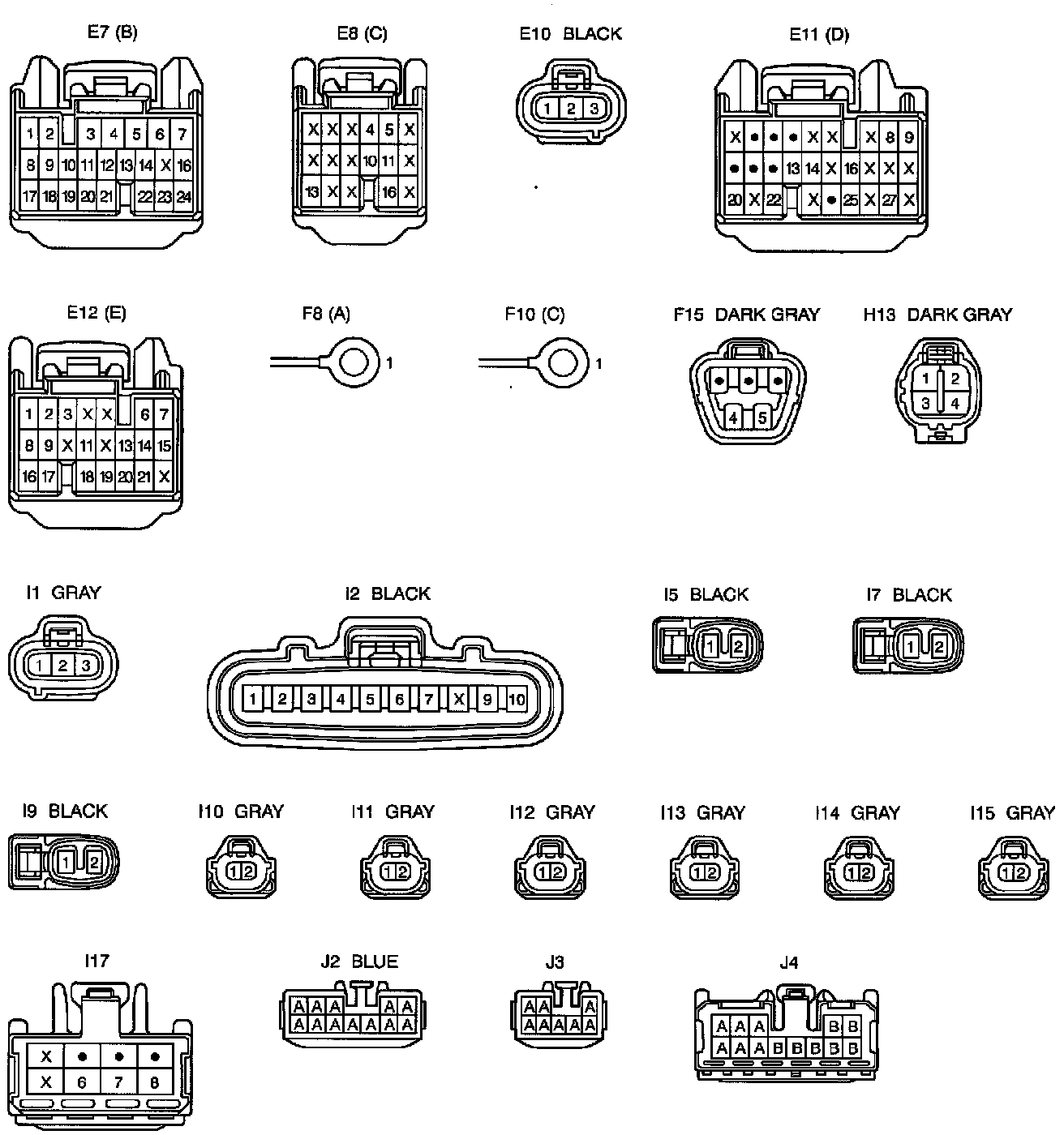

Engine Control (California)-Connectors:

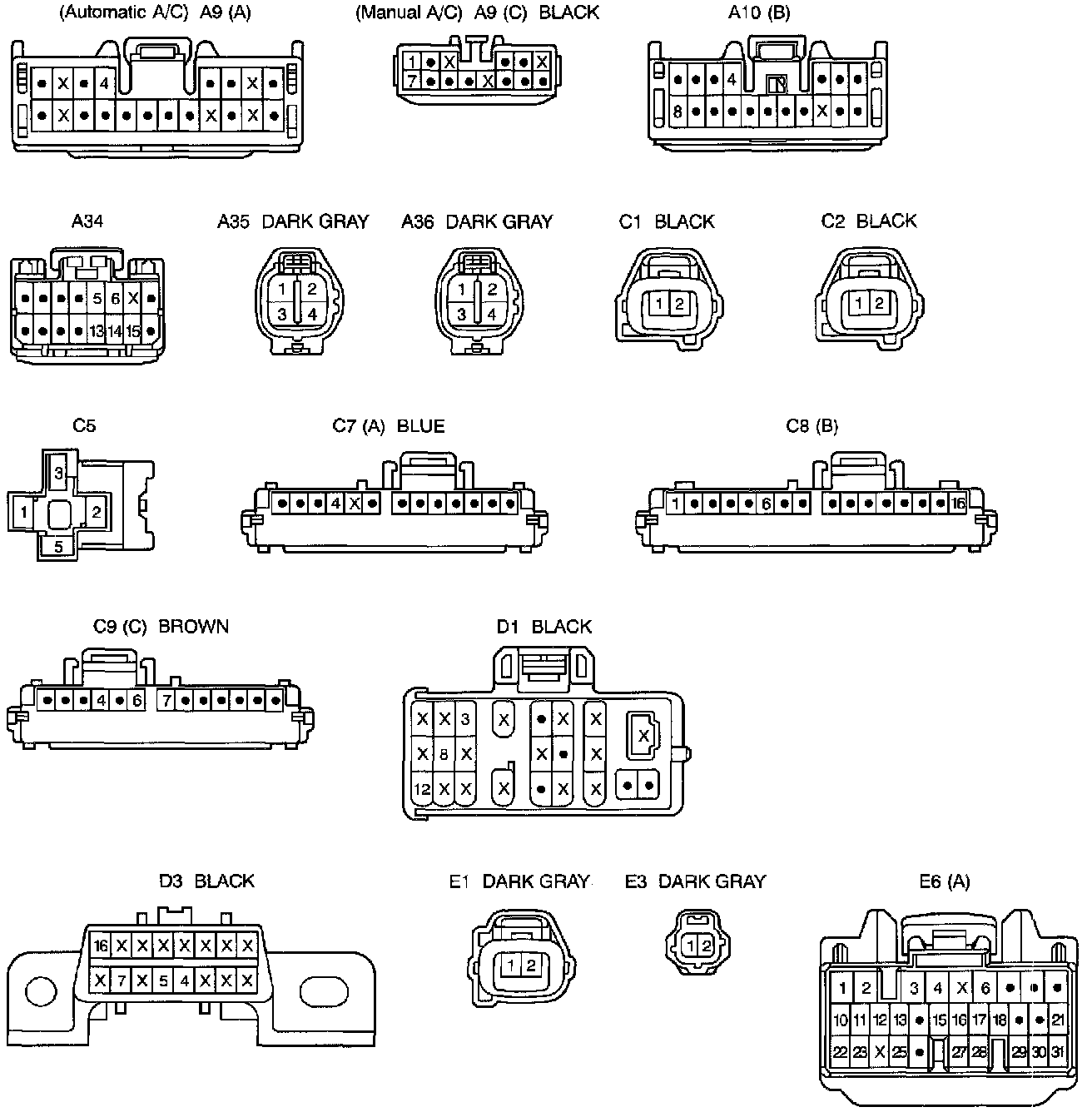

Engine Control (California)-Connectors:
