Locations
>>
Relay Blocks
Relay Blocks
Relay Blocks:

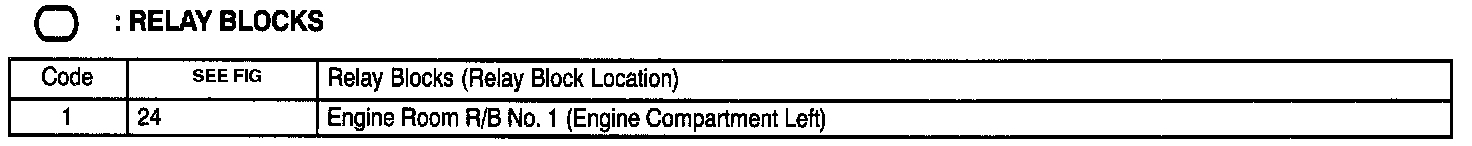

RELAY BLOCKS

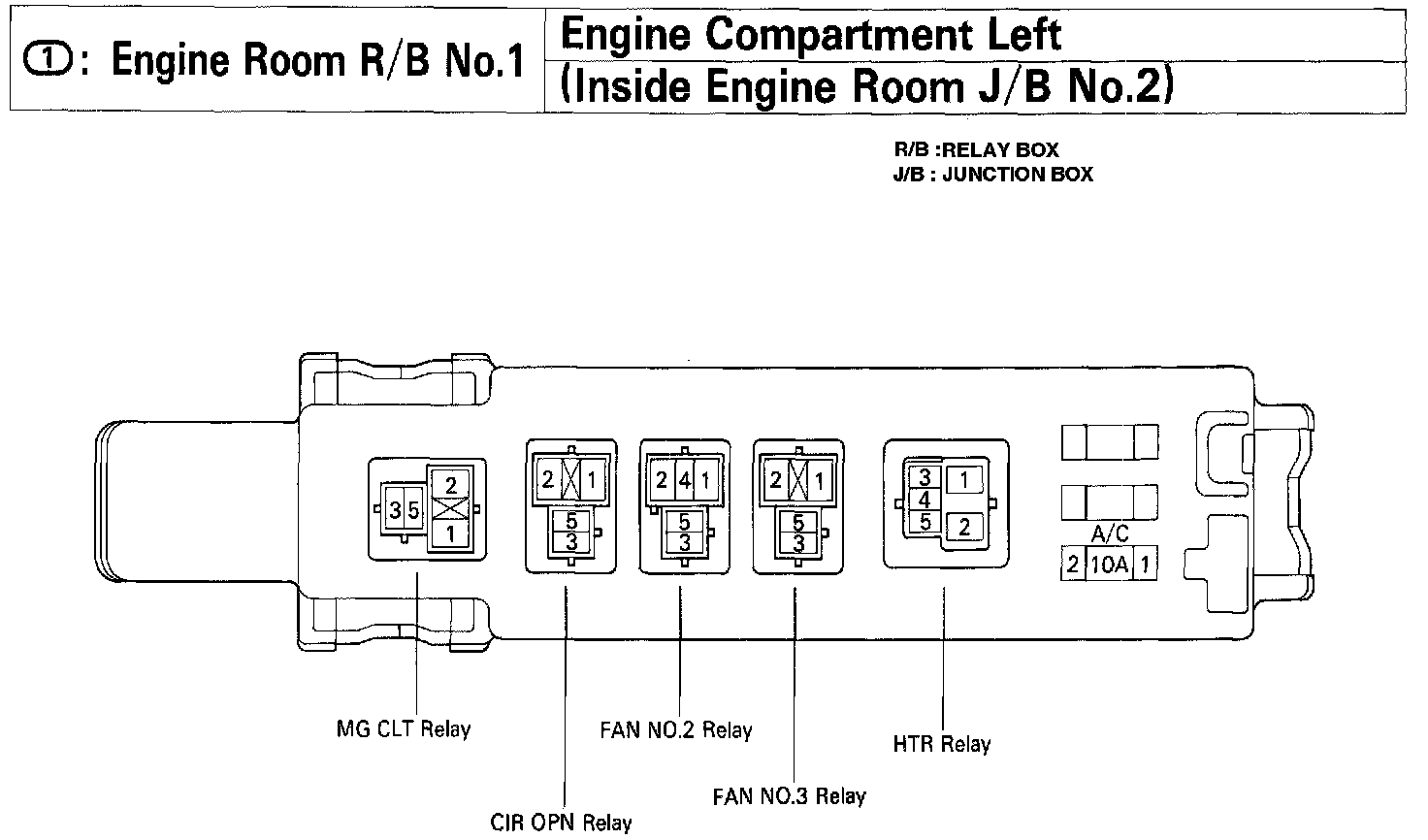

Locations-Engine Room R/B No.1 (Engine Compartment Left) (Fig 24):
FIG 24
