With Engine Immobilizer System

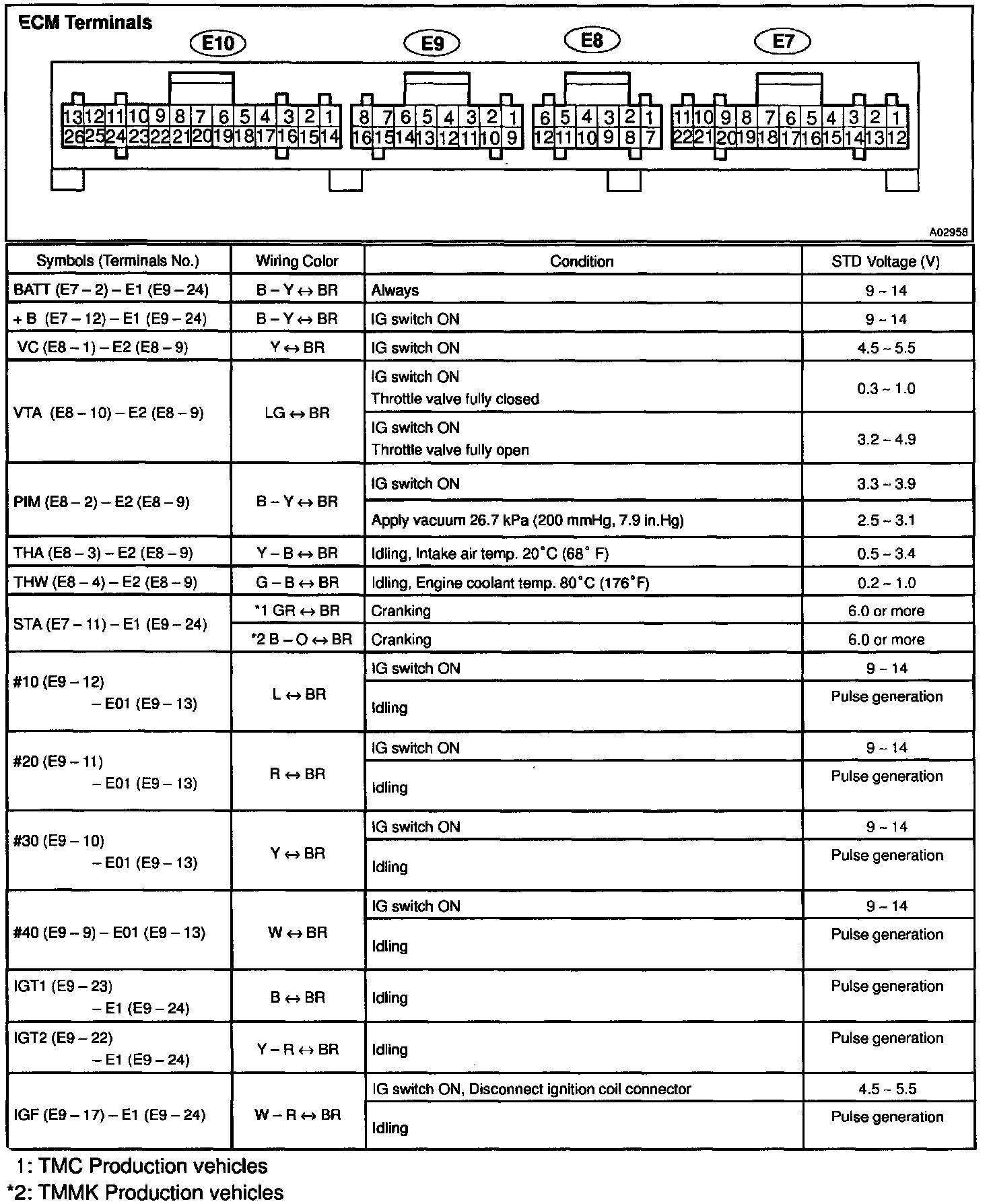

ECM Terminal Values Chart 1 Of 3 W/ Immobilizer System:

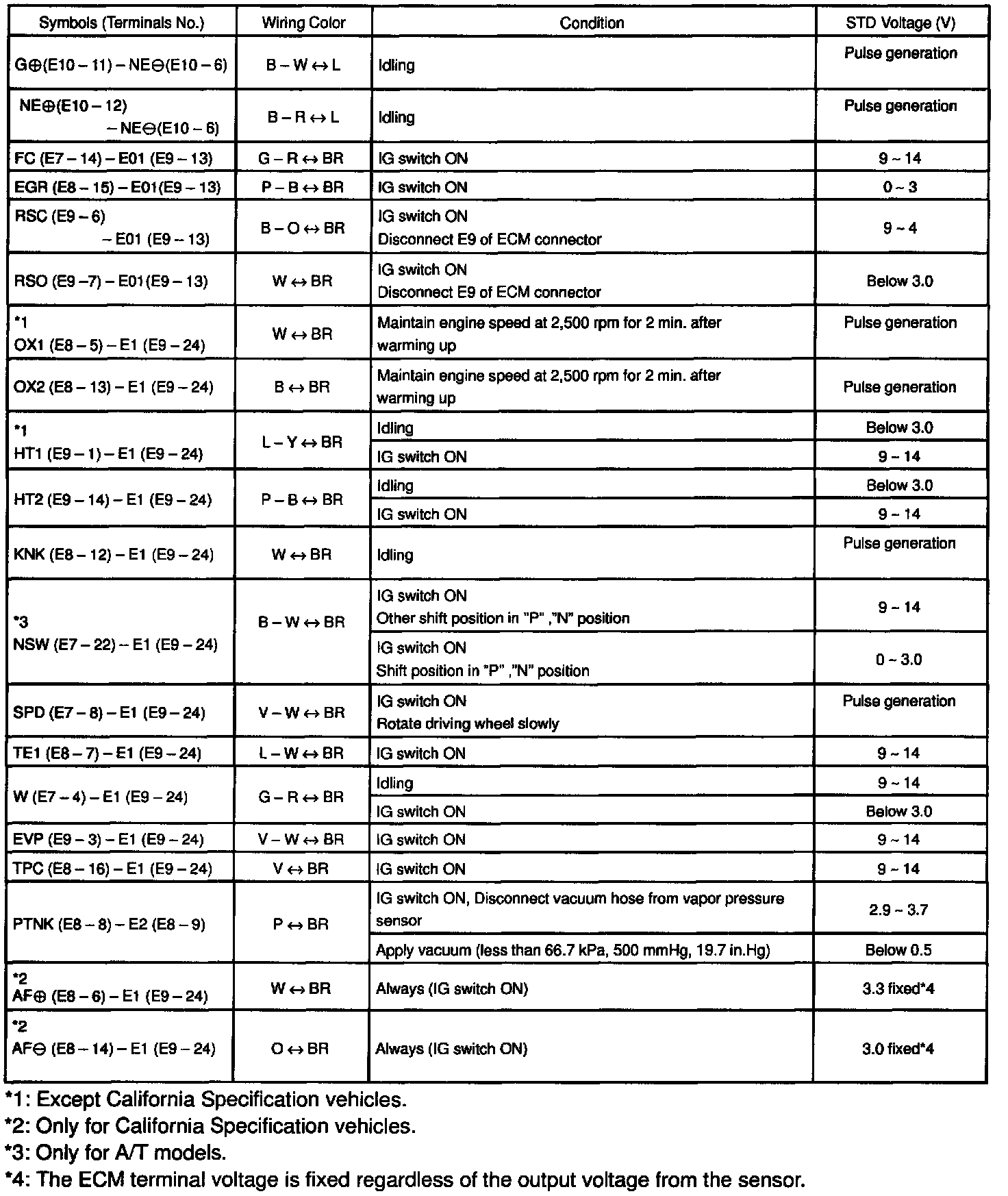

ECM Terminal Values Chart 2 Of 3 W/ Immobilizer System:

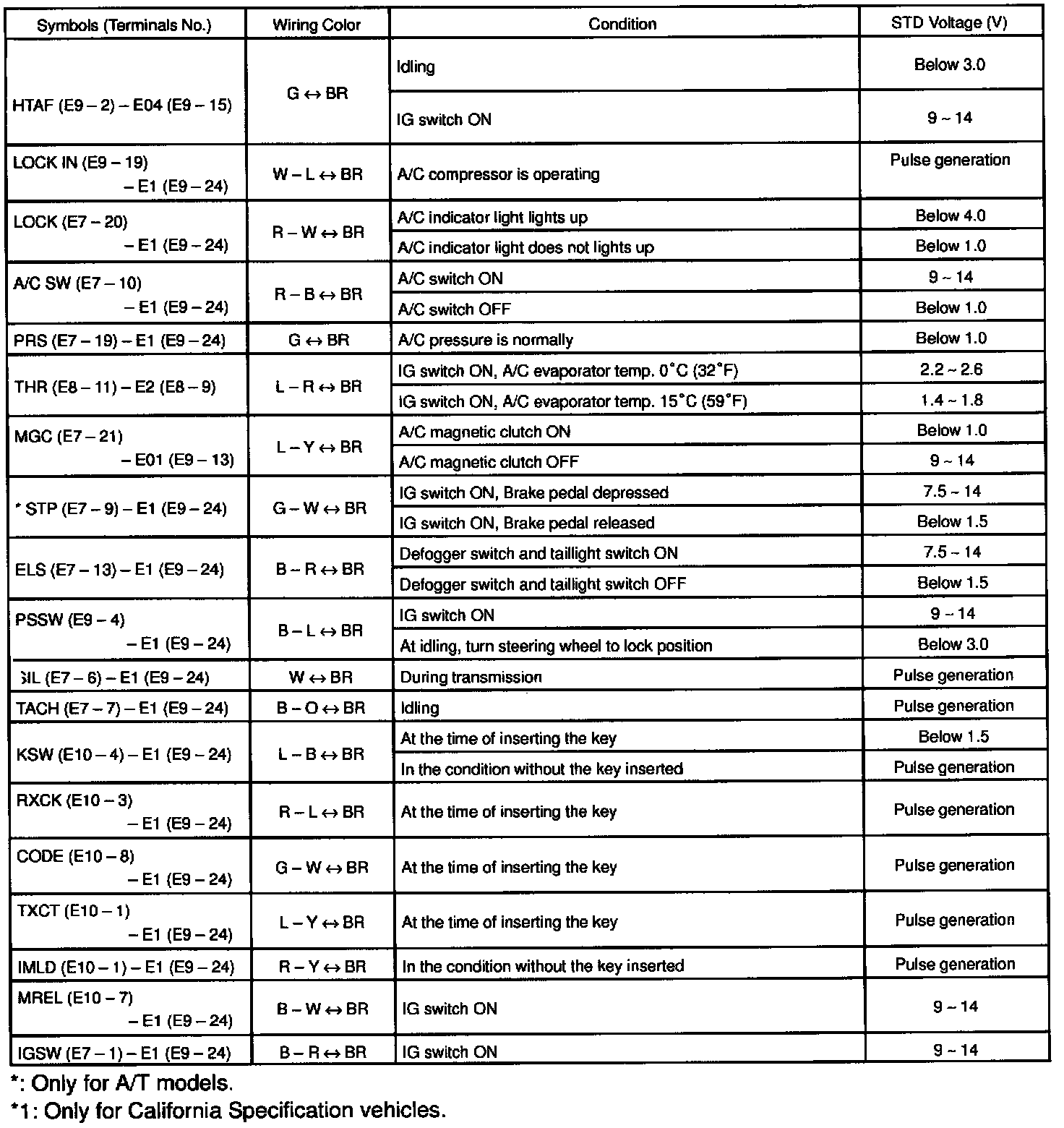

ECM Terminal Values Chart 3 Of 3 W/ Immobilizer System:
