Seat

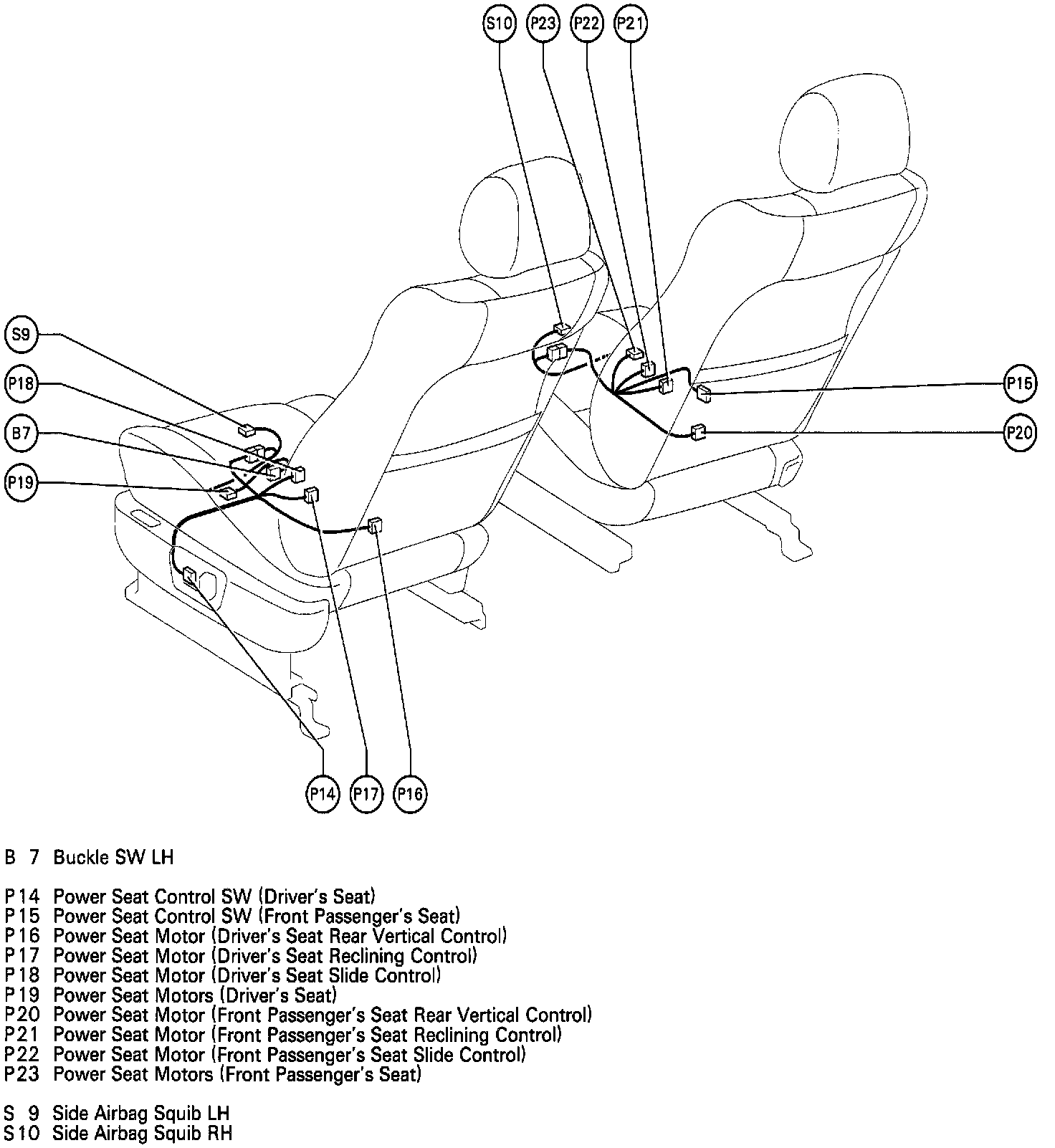

Position Of Parts In Seat (Fig 34):

B 7 Buckle SW LH

P14 Power Seat Control SW (Driver's Seat)
P15 Power Seat Control SW (Front Passenger's Seat)
P16 Power Seat Motor (Driver's Seat Rear Vertical Control)
P17 Power Seat Motor (Driver's Seat Reclining Control)
P18 Power Seat Motor (Driver's Seat Slide Control)
P19 Power Seat Motors (Driver's Seat)
P20 Power Seat Motor (Front Passenger's Seat Rear Vertical Control)
P21 Power Seat Motor (Front Passenger's Seat Reclining Control)
P22 Power Seat Motor (Front Passenger's Seat Slide Control)
P23 Power Seat Motors (Front Passenger's Seat)

S 9 Side Airbag Squib LH
S10 Side Airbag Squib RH
