System Diagram

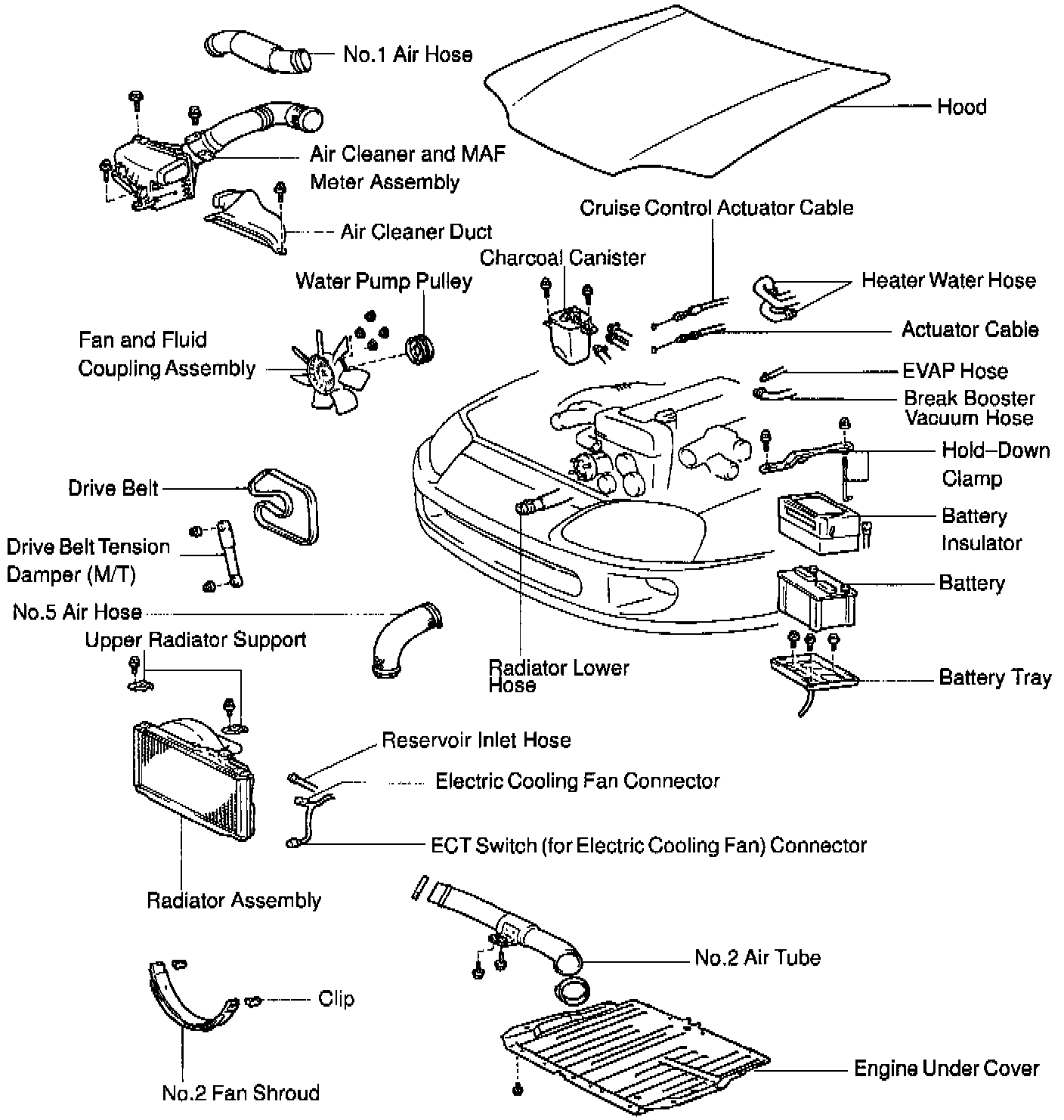

UNDERHOOD VIEW

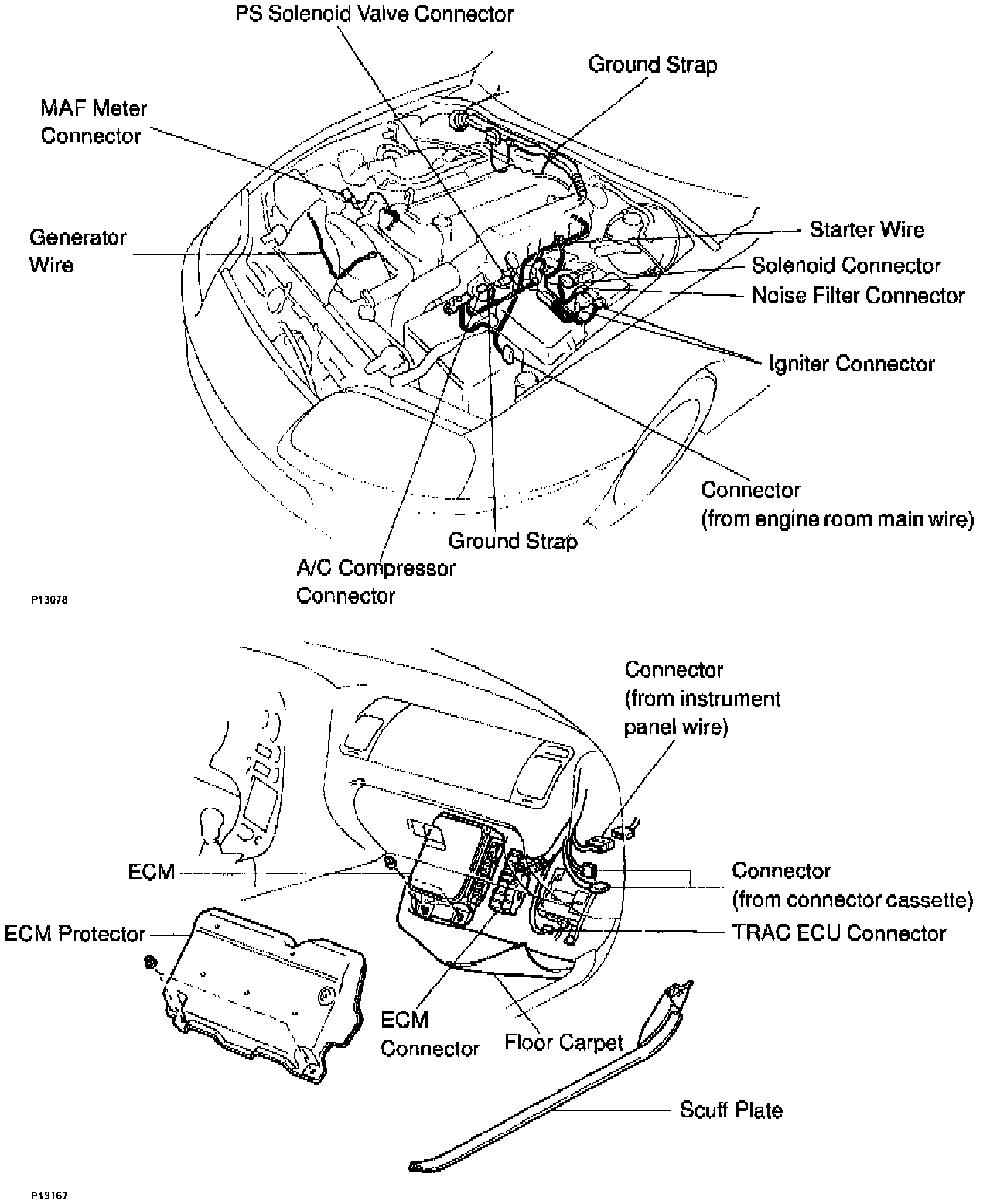

UNDER HOOD AND ECM CONNECTOR LOCATIONS





EXHAUST SYSTEM AND DRIVE SHAFT

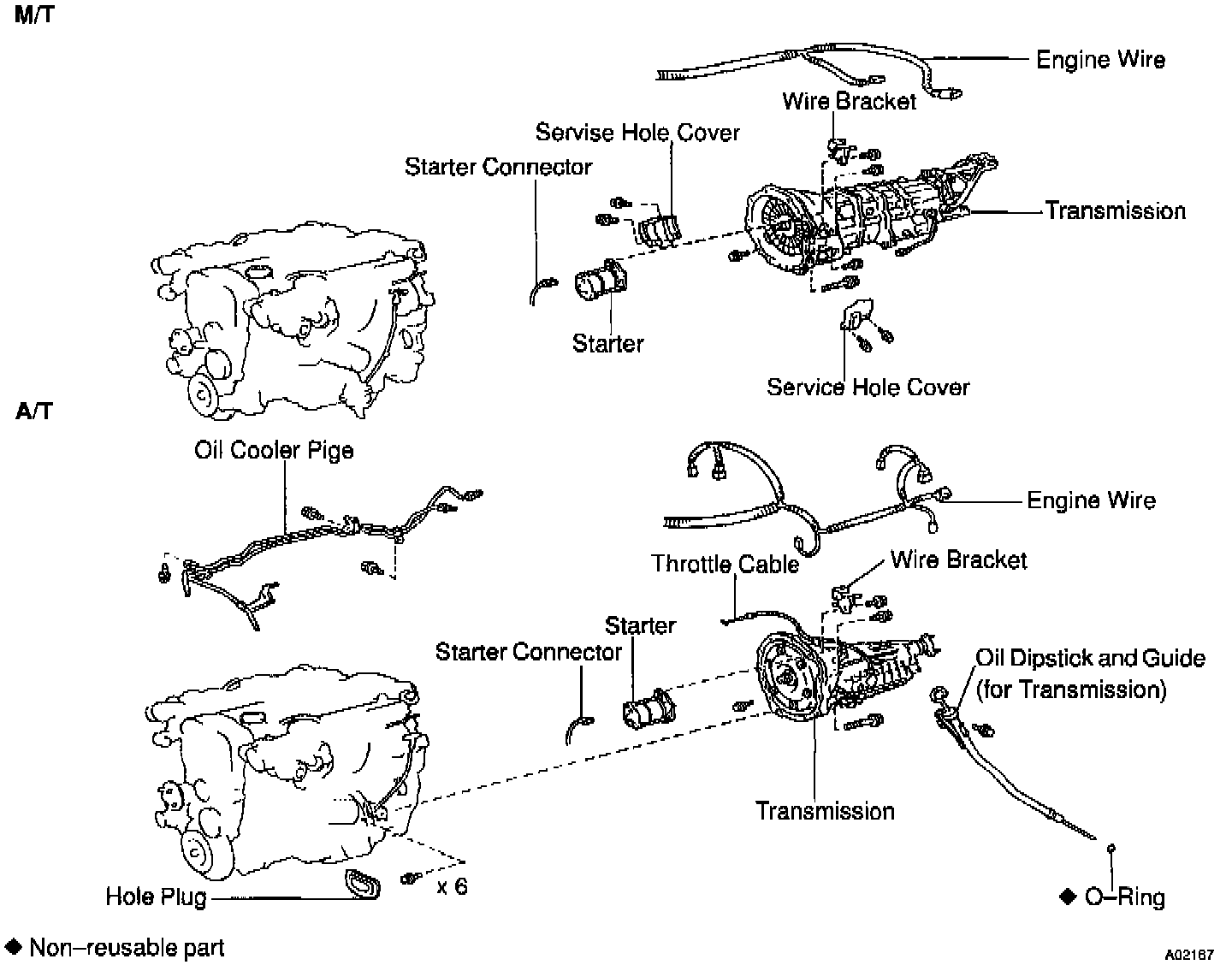

ENGINE AND TRANSMISSION ASSEMBLIES
