Camshaft
INSTALL CAMSHAFTSa. Apply engine oil to the thrust portion of the camshaft.

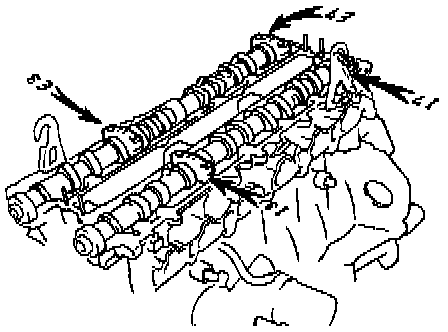

b. Place the camshaft on the cylinder head with the cam lobe facing up as shown.
c. Place the No.3 and No.7 bearing caps in their proper location.
d. Apply a light coat of engine oil on the threads and under the heads of the bearing cap bolts.
e. Temporarily tighten these bearing cap bolts uniformly and alternately, in several passes, until the bearing caps are snug with the cylinder head.

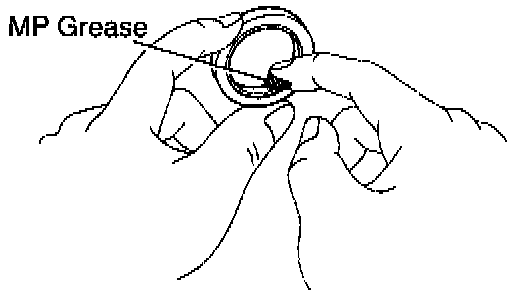

f. Apply MP grease to a new camshaft oil seal lip.

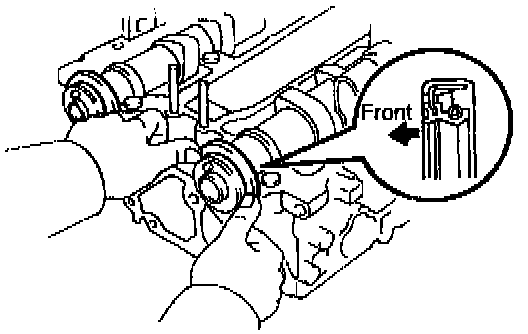

g. Install the 2 oil seals to the camshafts.
h. Clean the installed surfaces of the No.1 bearing cap and cylinder head with cleaner.

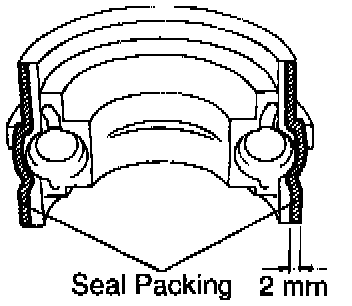

i. Apply seal packing to the No.1 bearing cap as shown.
Seal packing: Part No. 08826 - 00080 or equivalent
j. Install the No.1, No.2, No.4, No.5 and No.6 bearing caps in their proper locations.

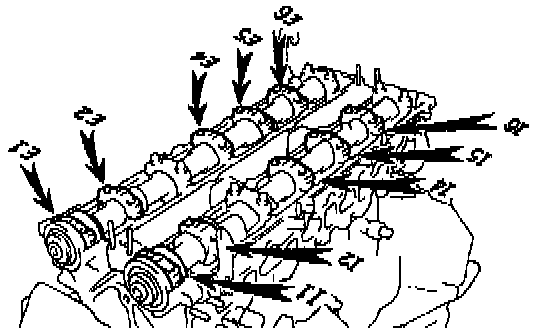

Camshaft Bearing Cap Tightening Sequence:
k. Apply a light coat of engine oil on the threads and under the heads of the bearing cap bolts.

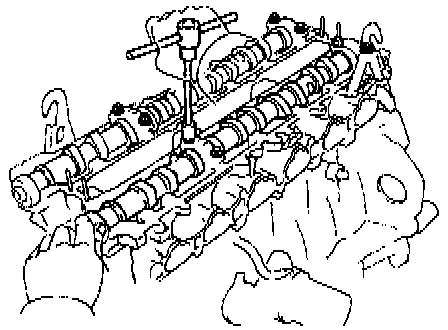

l. Install and uniformly tighten the 14 bearing cap bolts on one side, in several passes, in the sequence shown.
Torque: 20 Nm (14 ft. lbs.)

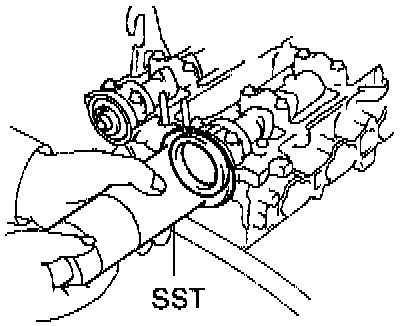

m. Using Special Service Tool (SST), push the 2 oil seals in as far as they can go.
SST 09316 - 60011 (09316 - 00011, 09316 - 00051)
n. Rotate the camshaft with a wrench at the hexagon position, bring the forward straight pin up.

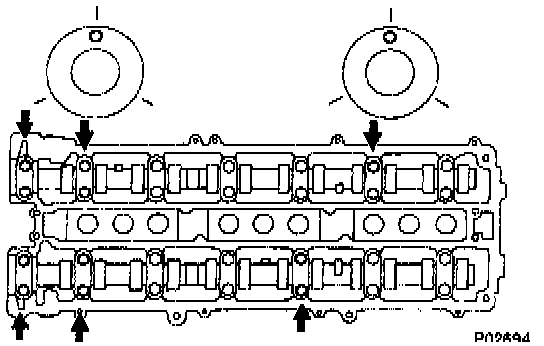

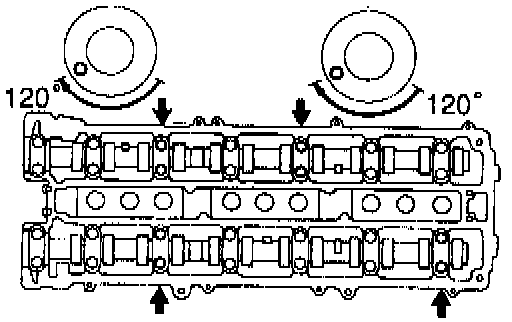

o. Loosen the 12 bearing cap bolts as shown, until they can be turned by hand; retighten, in several passes.
Torque: 20 Nm (14 ft. lbs.)
p. Turn the camshaft 1/3 of revolution.

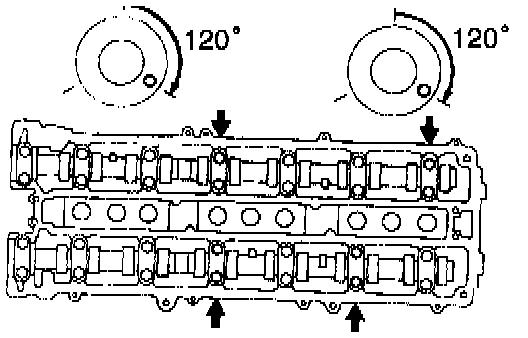

q. Loosen the 8 bearing cap bolts as shown, until they can be turned by hand; retighten, in several passes.
Torque: 20 Nm (14 ft. lbs.)
r. Turn the camshaft a further 1/3 of a revolution.
s. Loosen the 8 bearing cap bolts as shown, until they can be turned by hand; retighten, in several passes.
Torque: 20 Nm (14 ft. lbs.)
