Heater Control Valve: Service and Repair

REMOVAL
1. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not to drain out all coolant.

2. REMOVE INSTRUMENT PANEL
3. REMOVE AIR MIX SERVOMOTOR

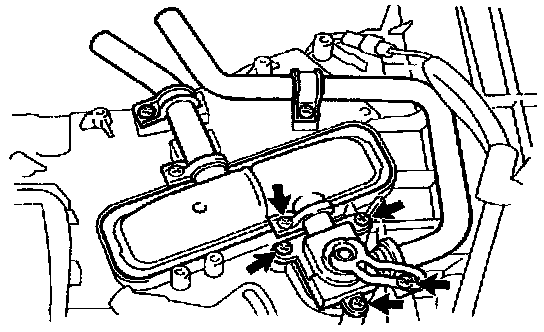

4. REMOVE WATER VALVE
Remove the 5 screws and water valve.

INSTALLATION
Installation is in the reverse order of removal.
