Camry CE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Oil Pump, Engine
Oil Pump, Engine
OIL PUMP COMPONENTS
Engine Compartment And Front Exhaust Pipe:

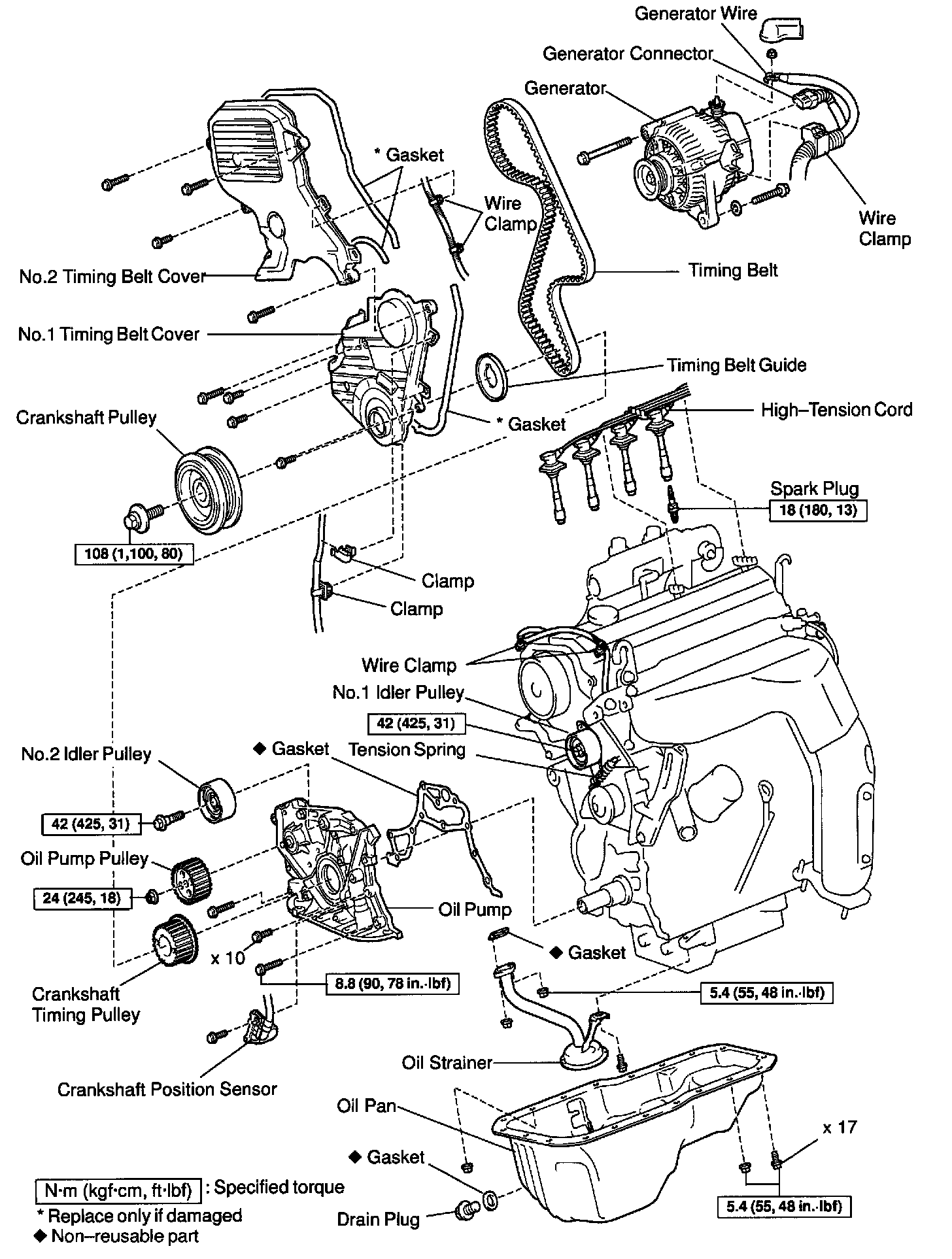

Timing Belt, Lubrication System, And Ignition System:

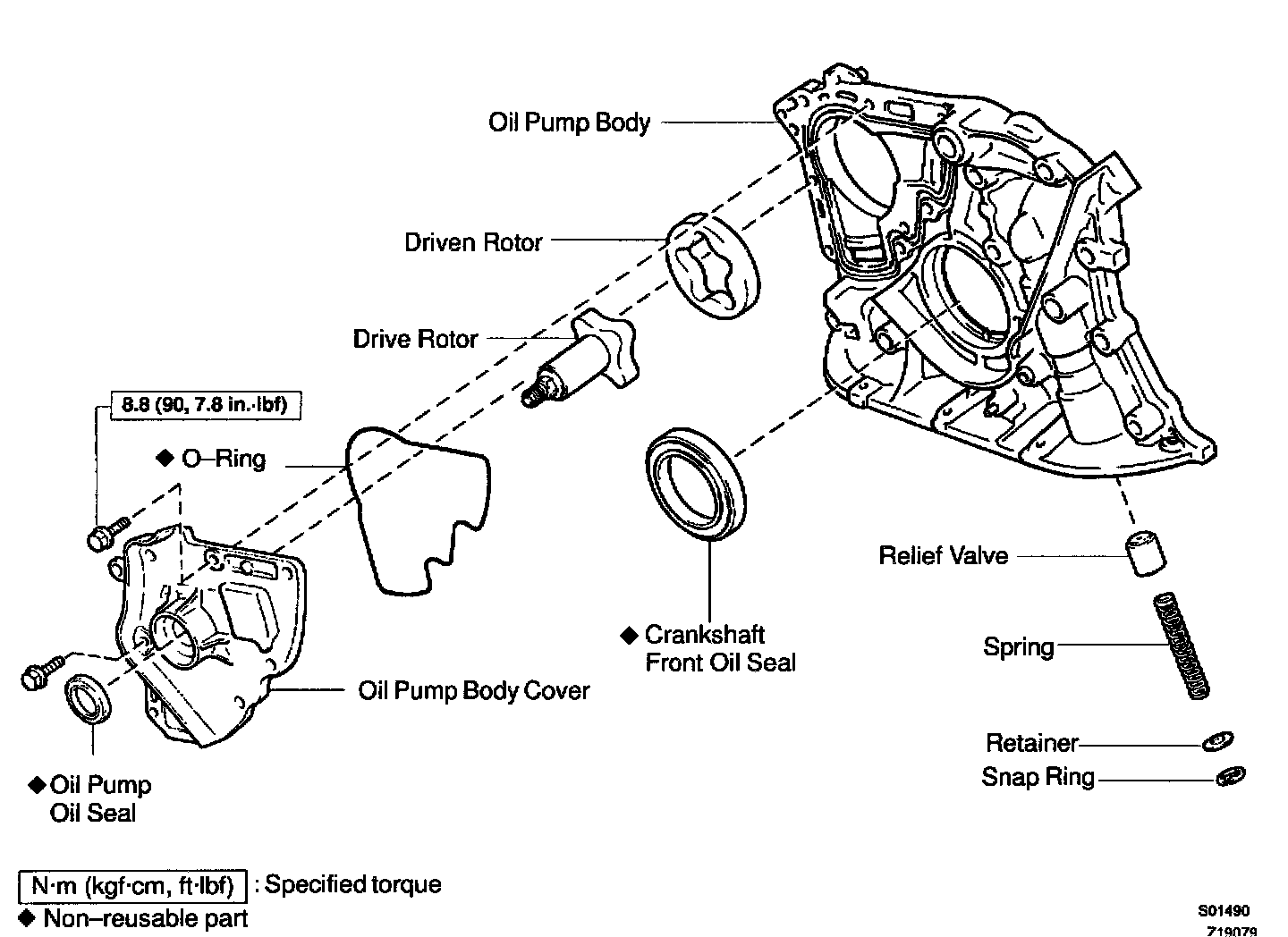

Oil Pump:
