Component Locations

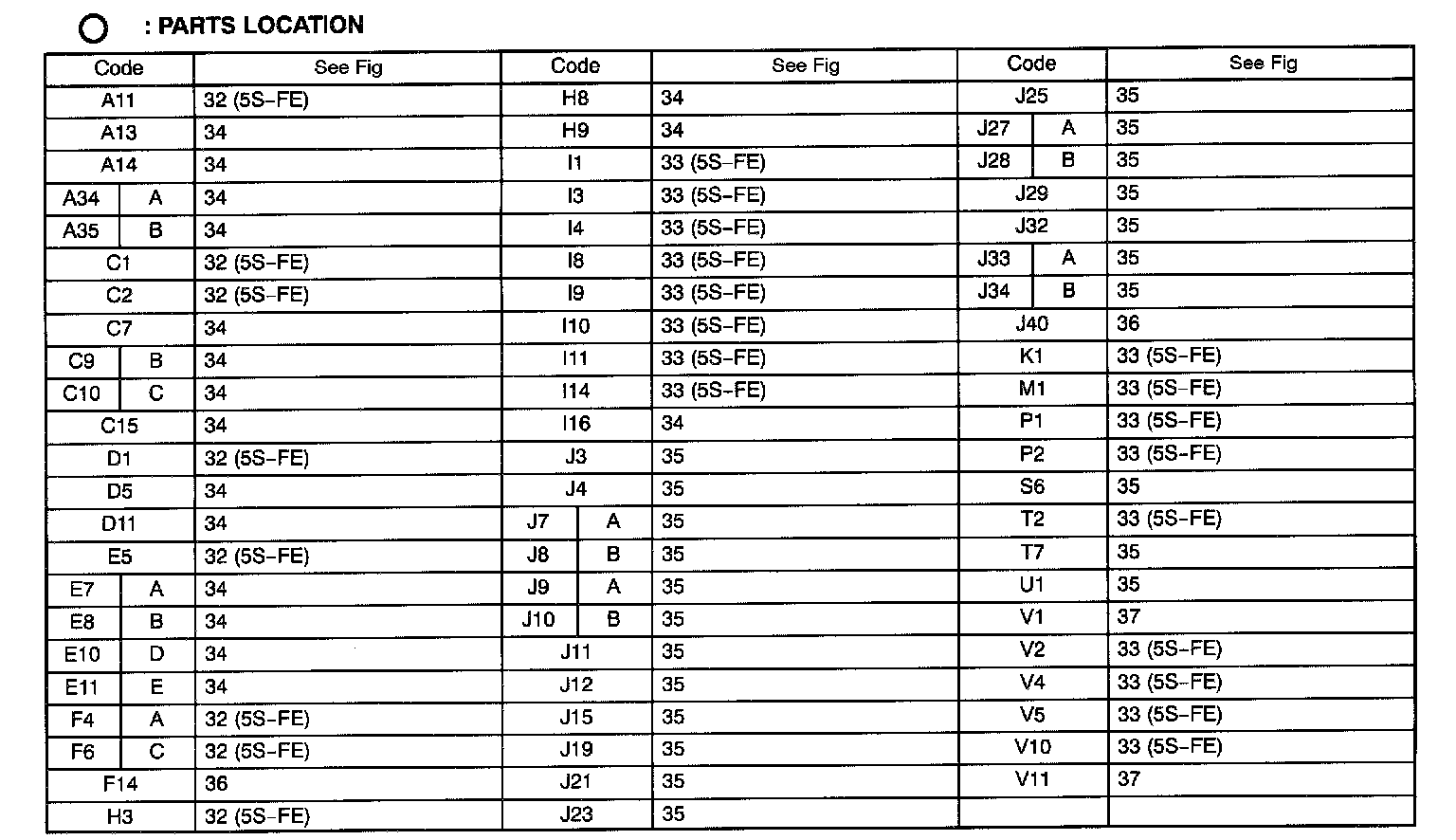

PARTS LOCATION

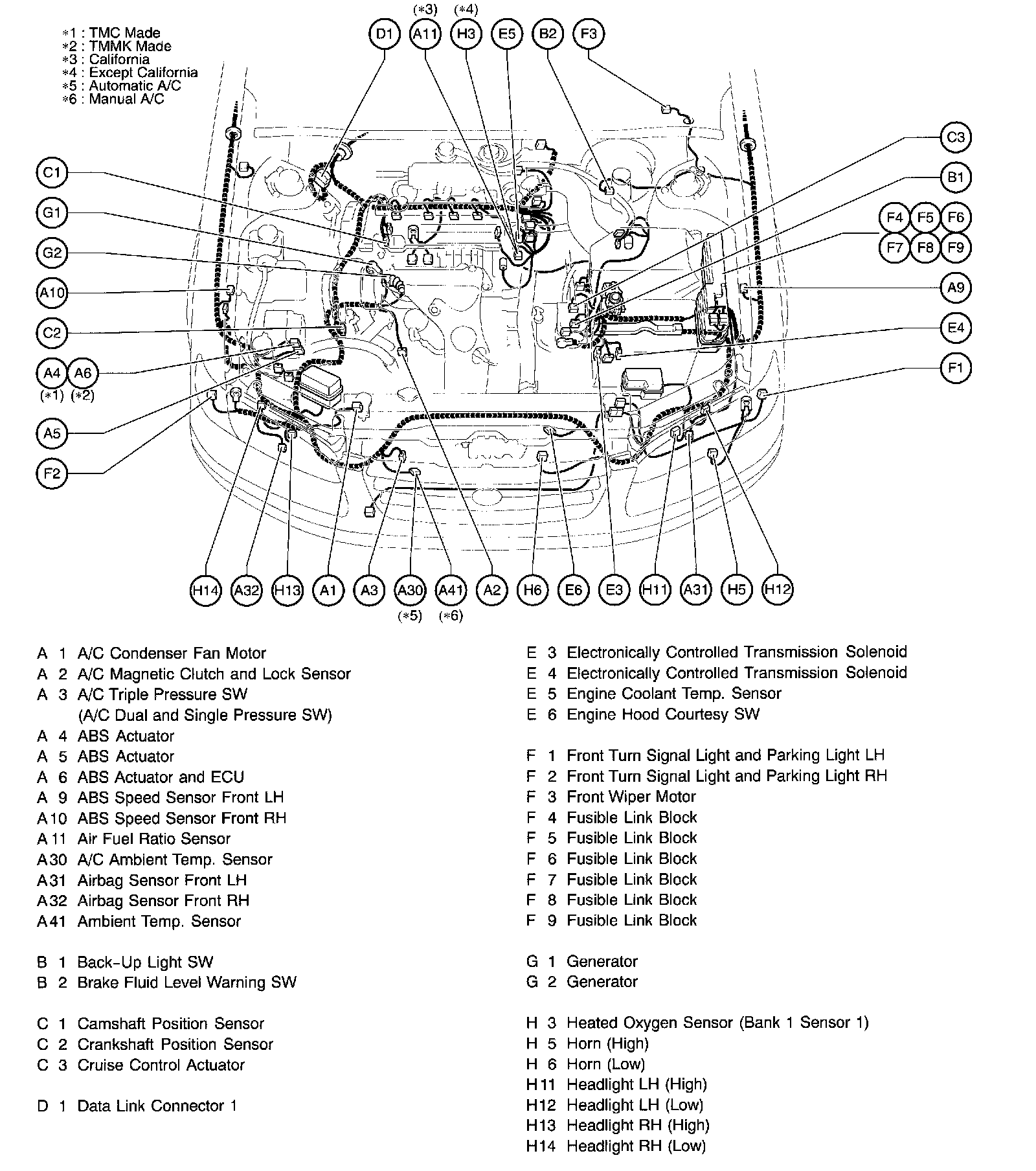

Position Of Parts In Compartment (Part I):

FIG 32

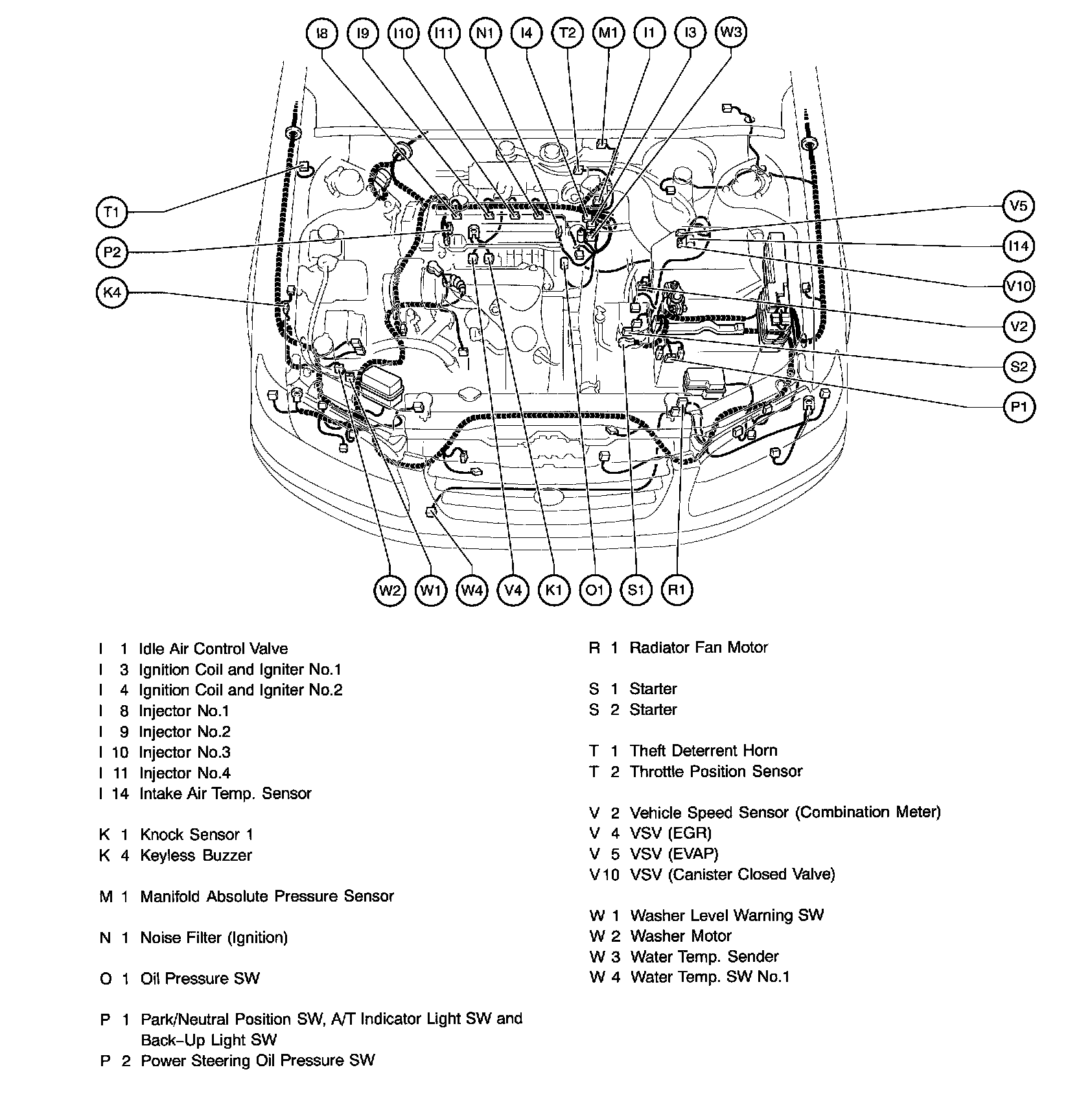

Position Of Parts In Engine Compartment (Part II):

FIG 33

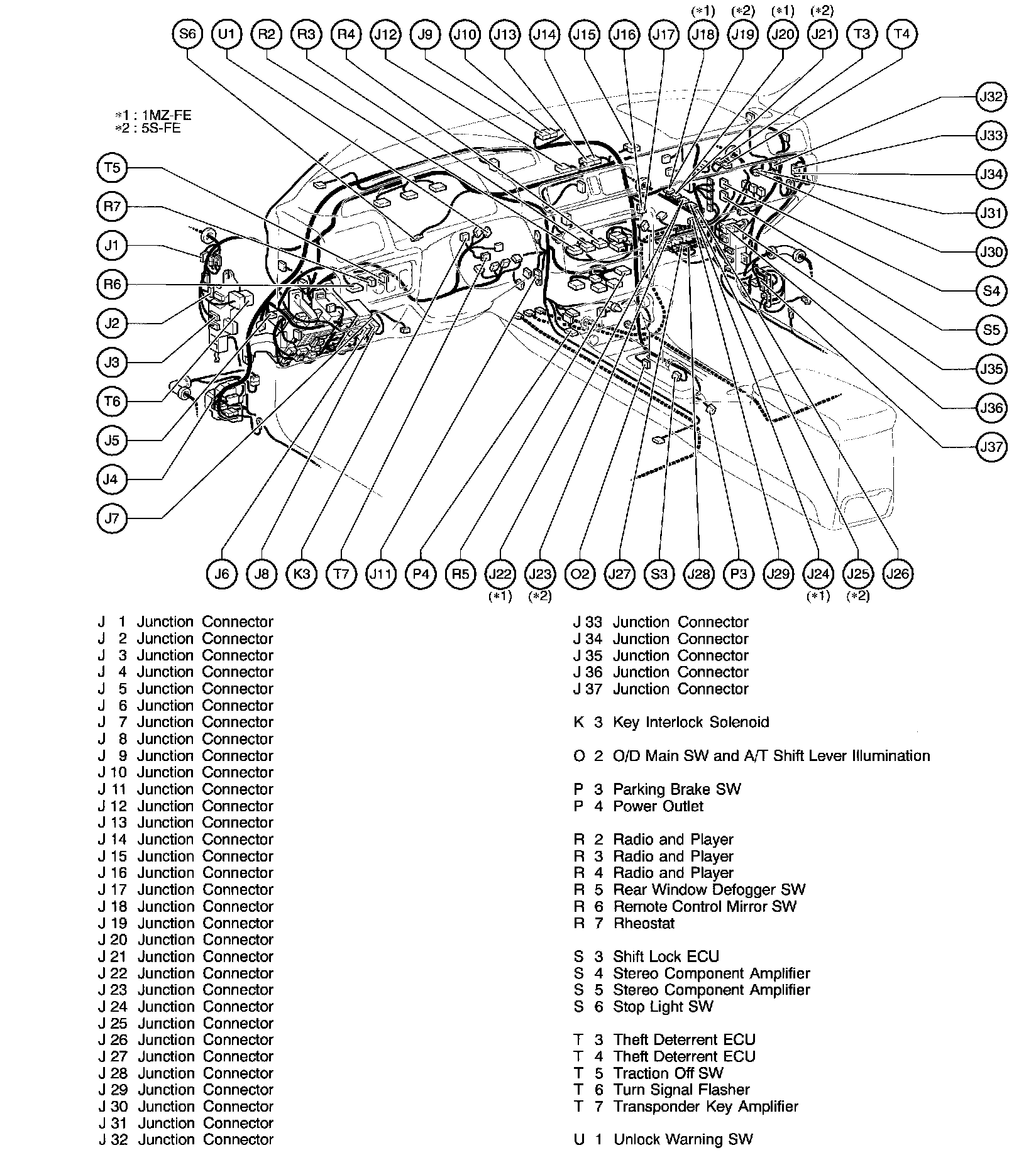

Position Of Parts In Instrument Panel (Part I):

FIG 34

Position Of Parts In Instrument Panel (Part II):

FIG 35

Body Grounding Points (Part I):

FIG 36

Body Grounding Points (Part II):

FIG 37
