Cylinder Block Assembly

CYLINDER BLOCK COMPONENTS

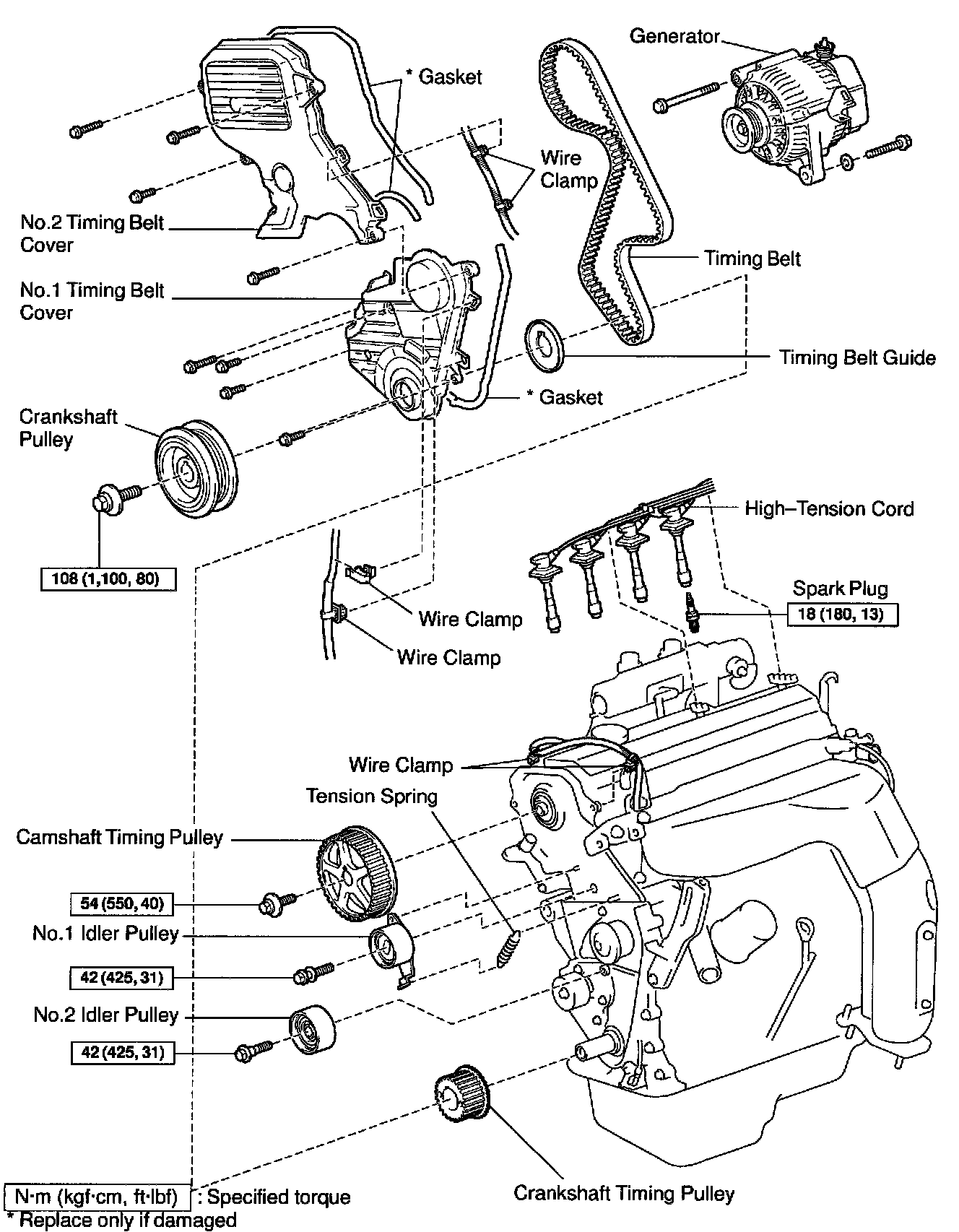

Timing Belt Components:





Cylinder Head Components:

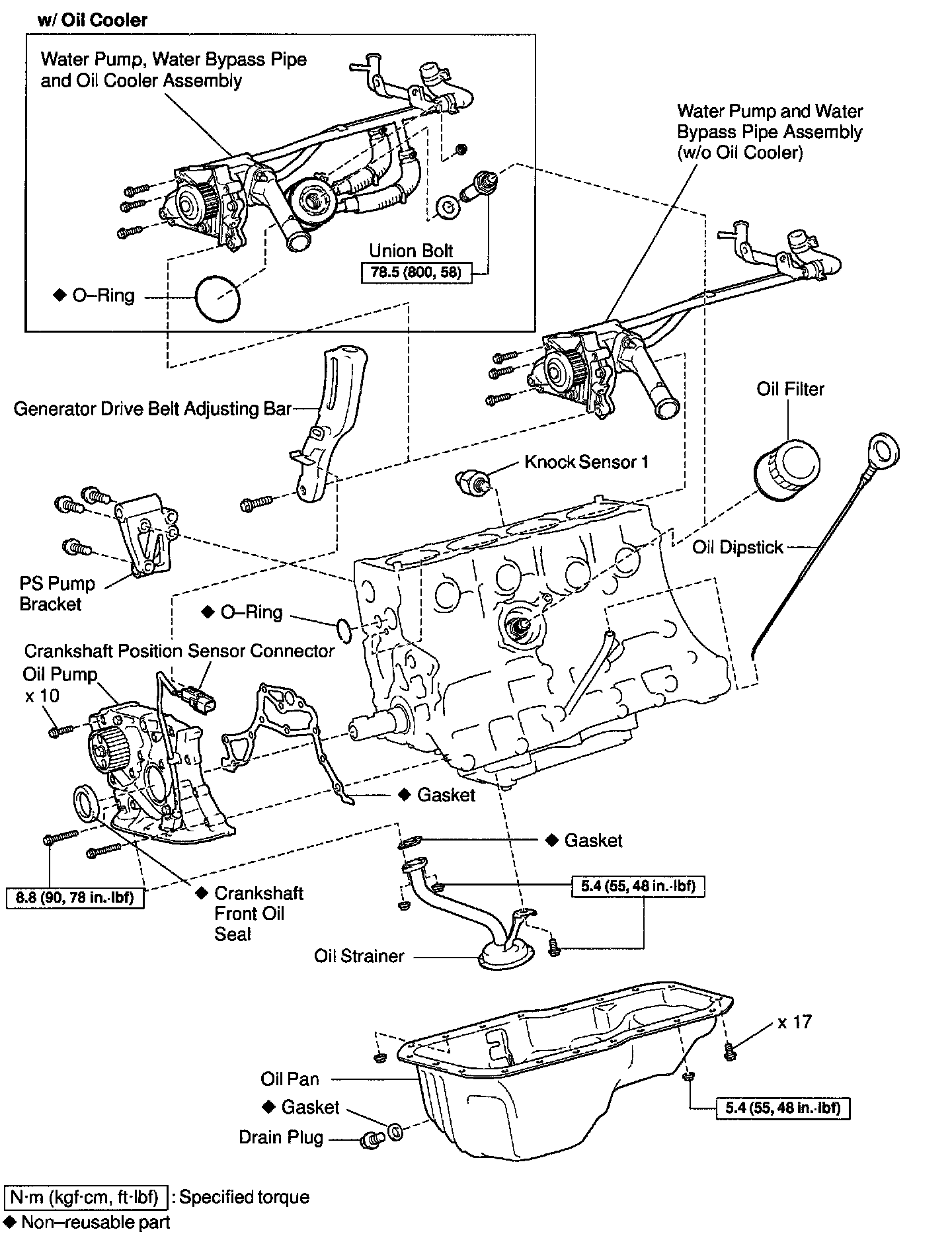

Cooling And Lubrication Components:

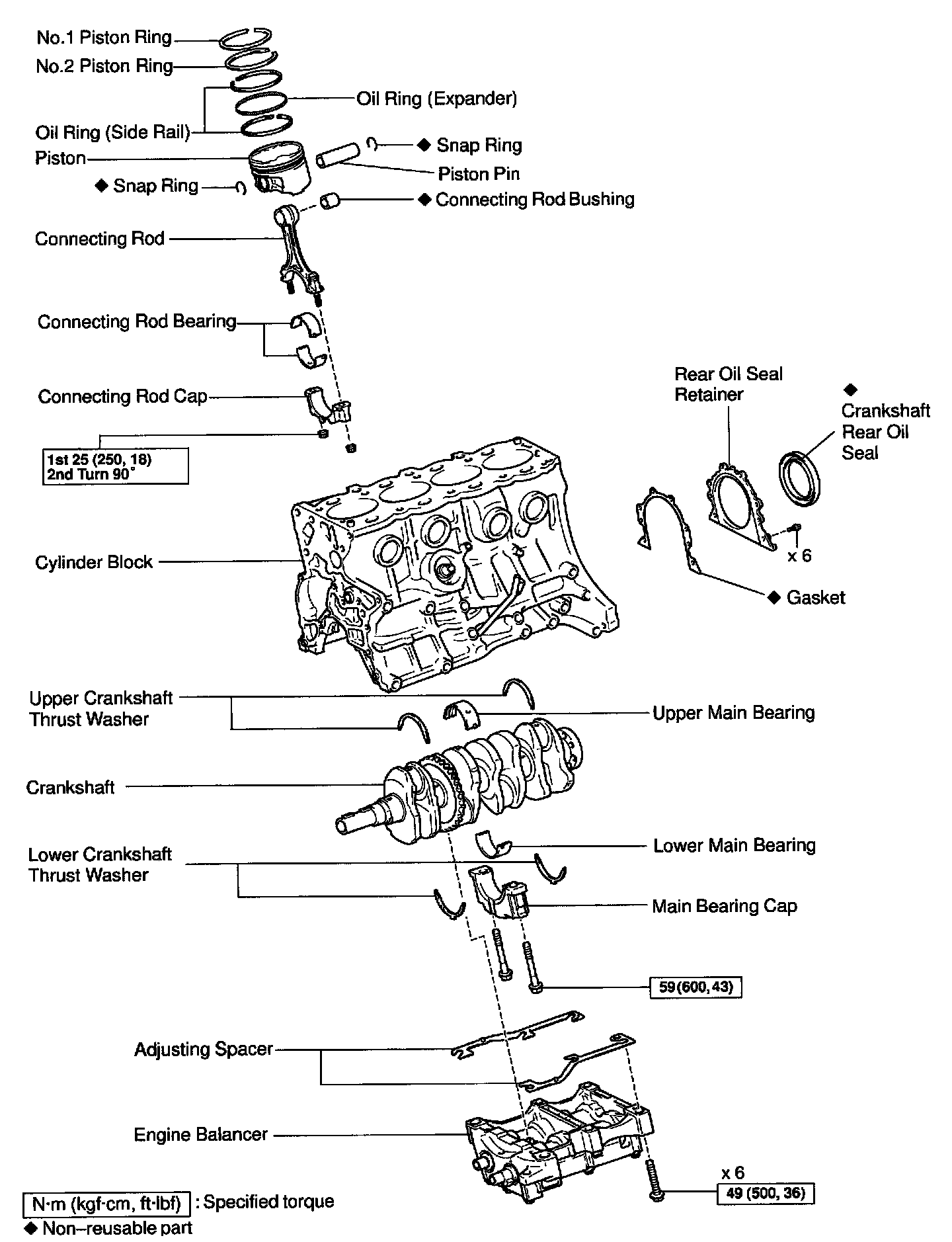

Engine Block Components:
