Camry LE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Head Assembly
Cylinder Head Assembly
CYLINDER HEAD COMPONENTS

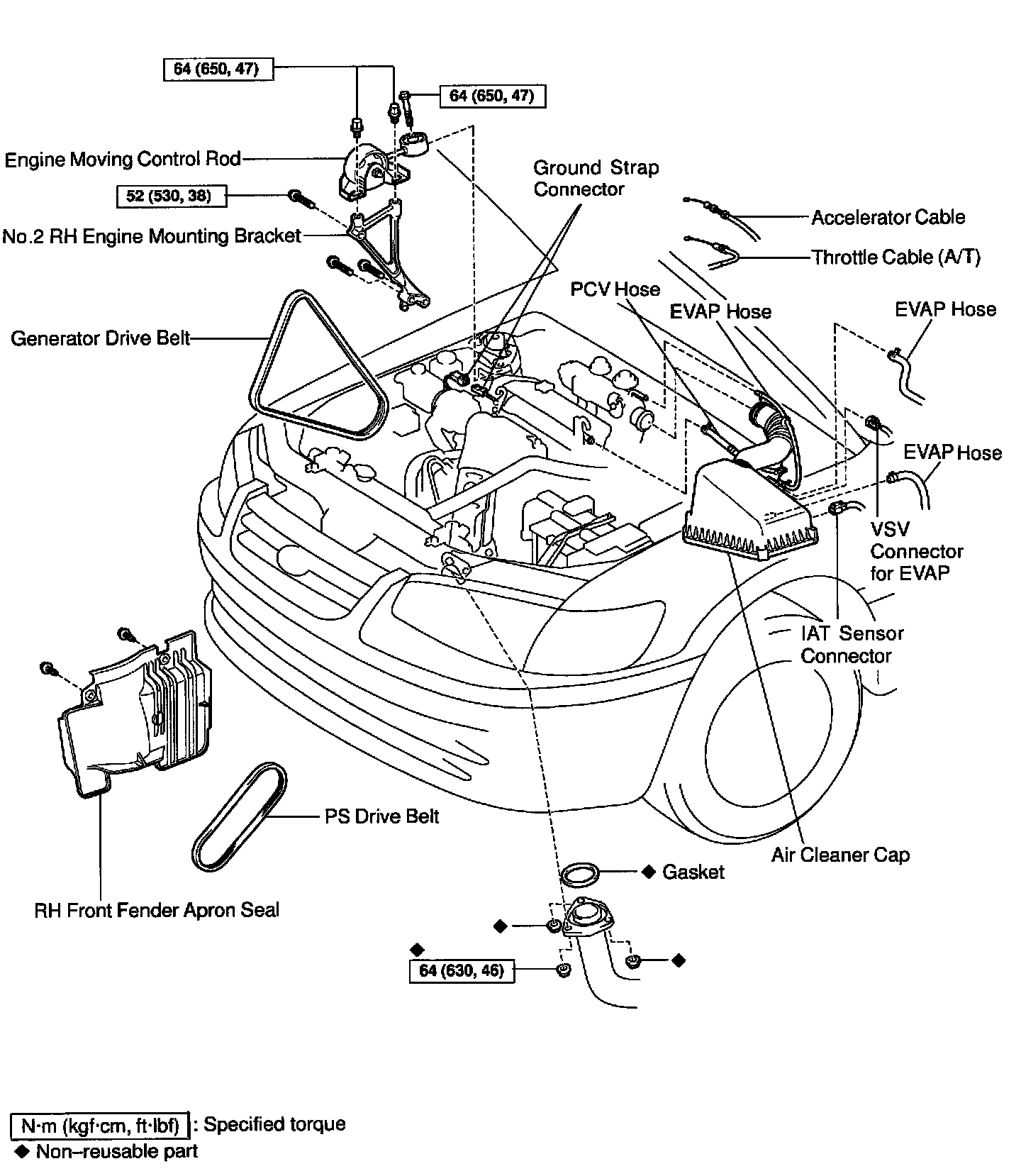

Engine Compartment Components:

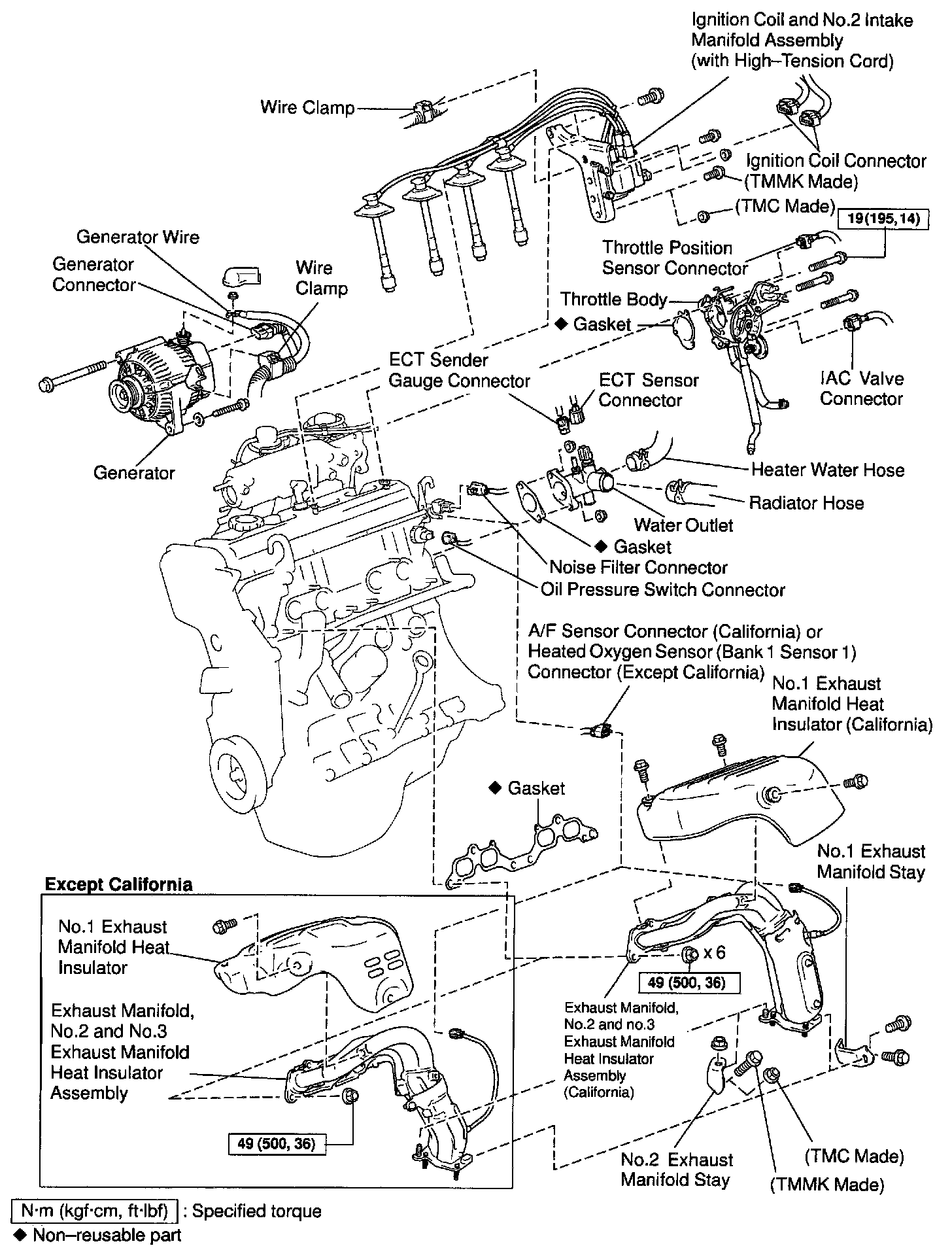

Alternator, Ignition System, And Exhaust Manifold:

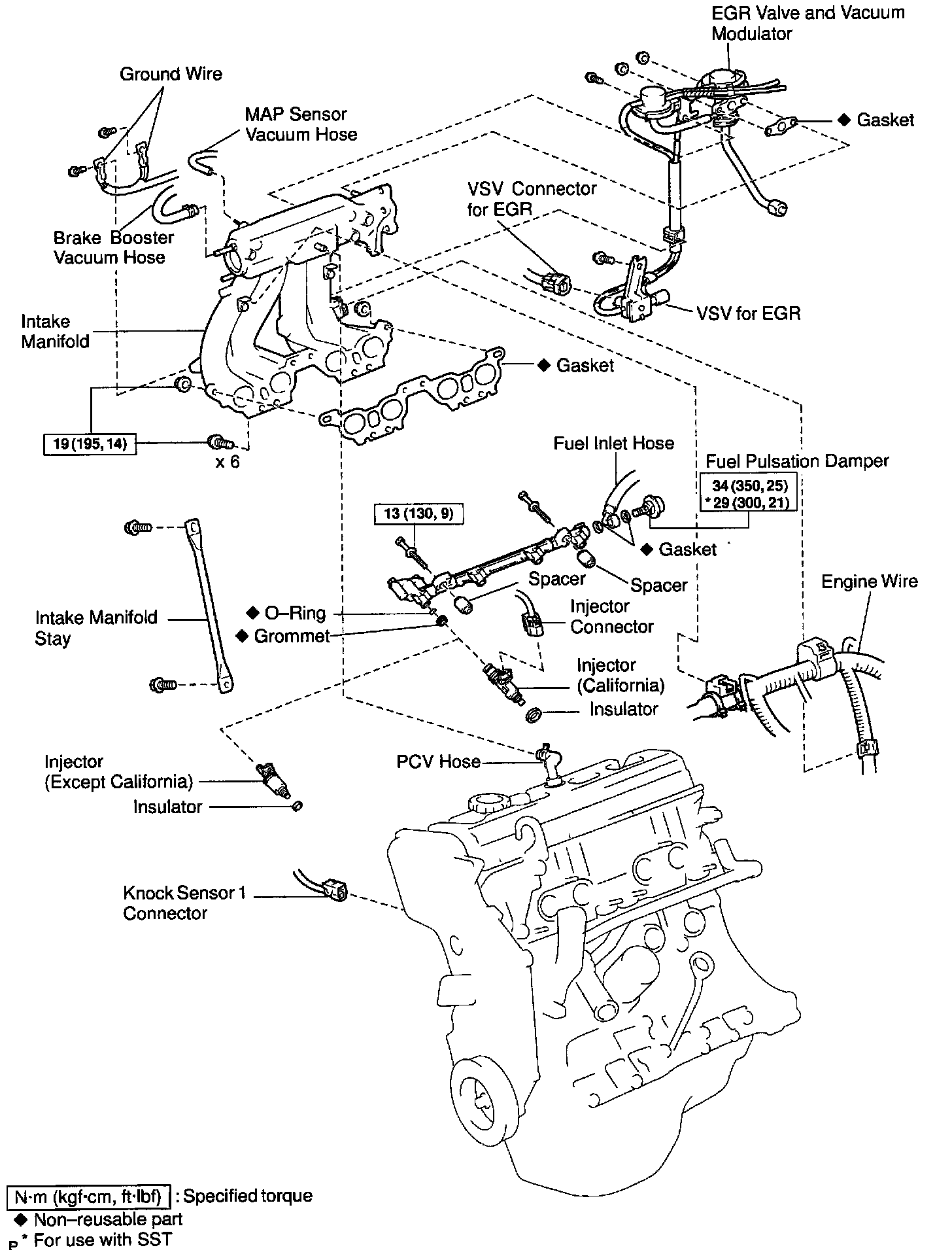

Intake, EGR, Injectors:

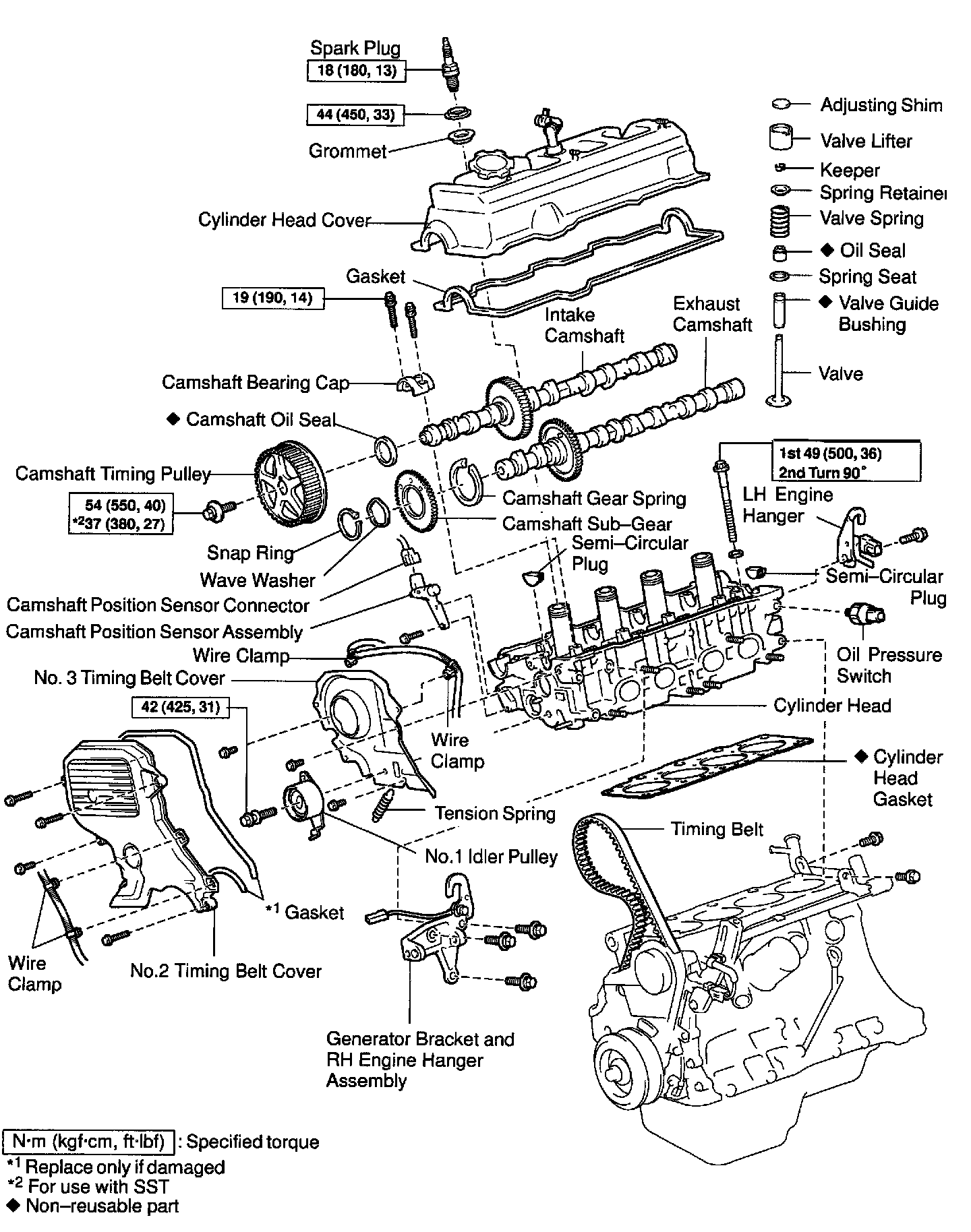

Valve Cover, Camshafts, And Cylinder Head:
