System Diagram

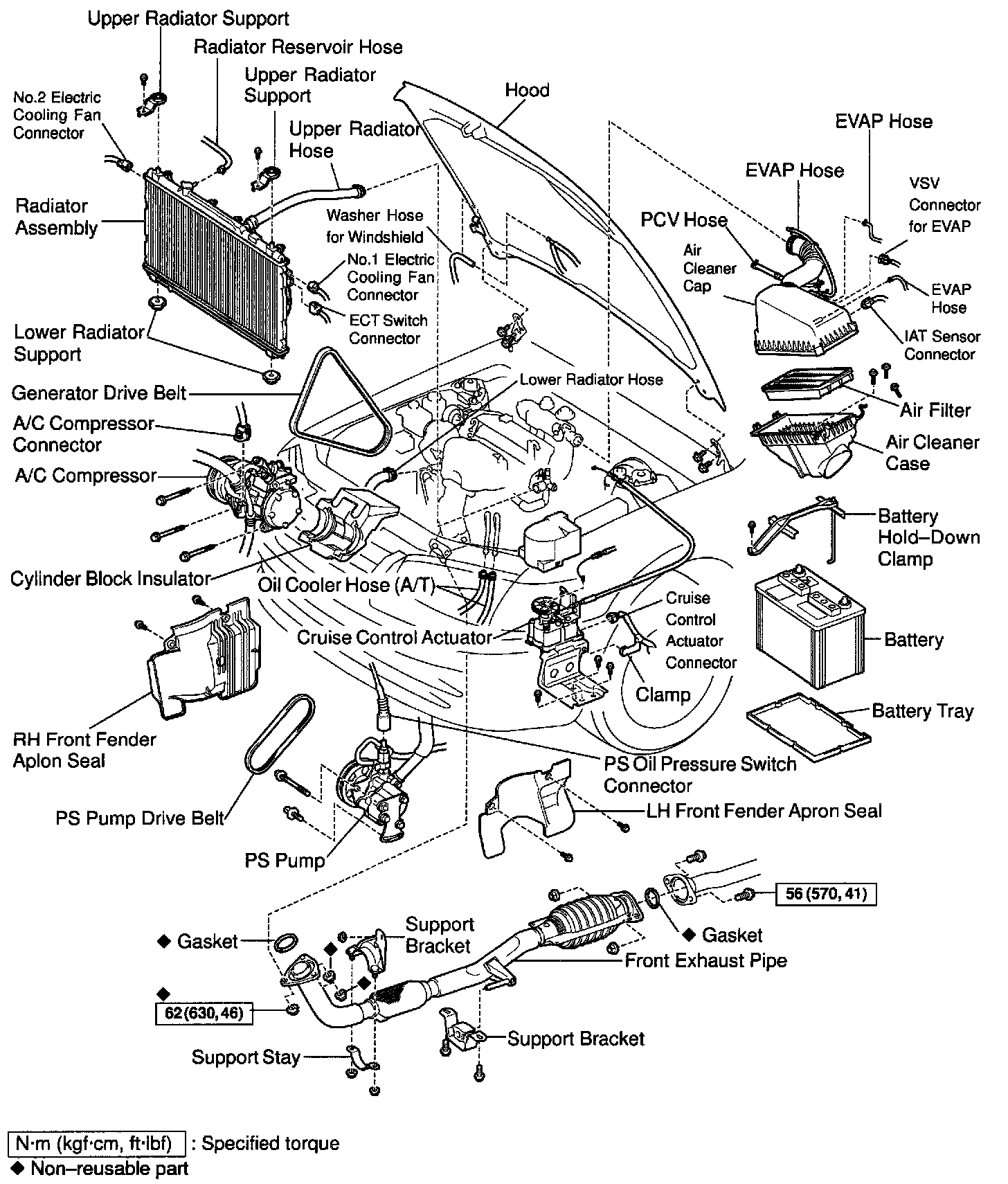

ENGINE UNIT COMPONENTSVarious Engine Compartment Components:

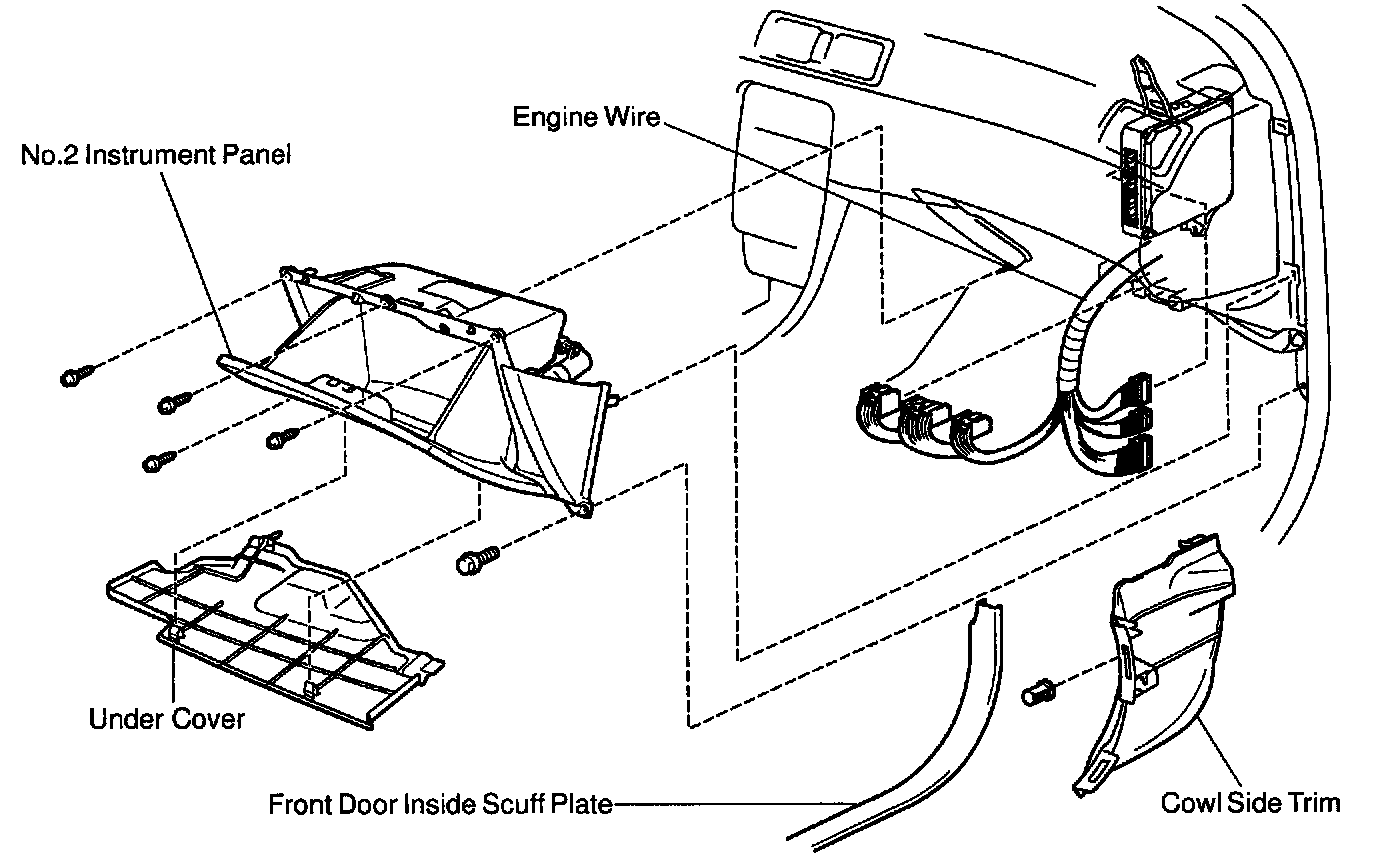

Passenger Compartment (Engine ECU):

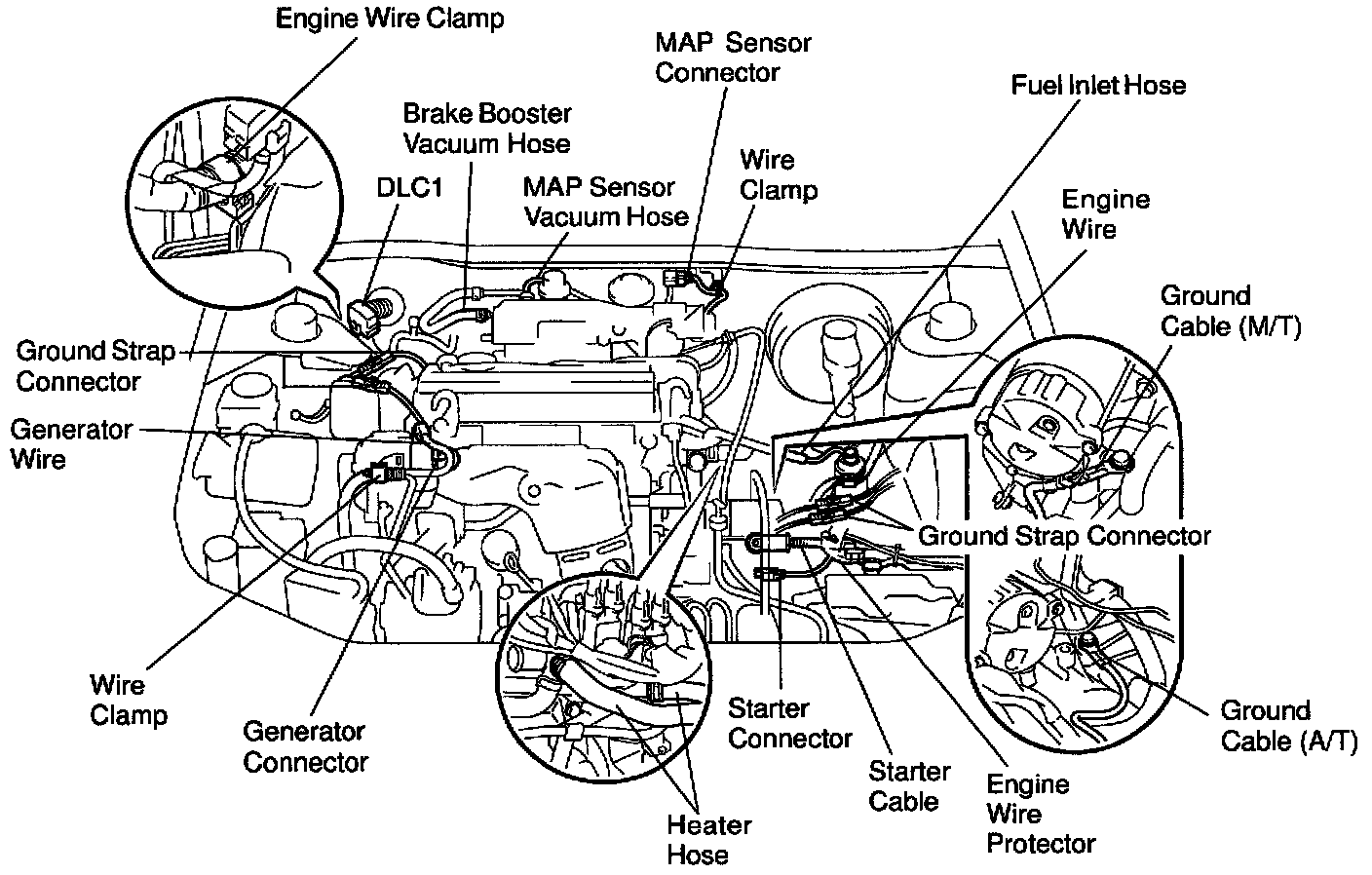

Wire Harness And Hose Locations:

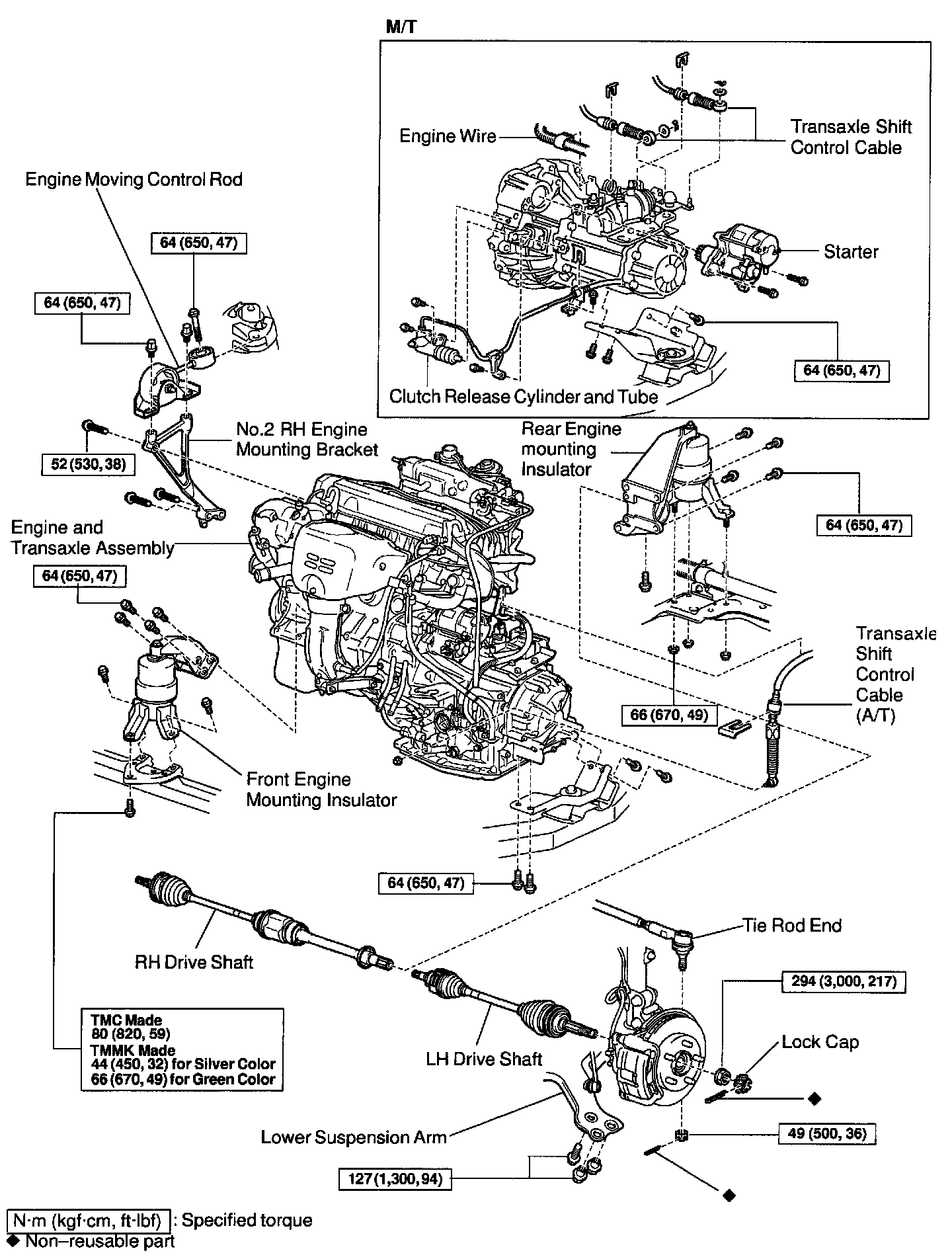

Engine And Transaxle (Mounts And Axles):
Engine And M/T Transaxle (Stiffeners And Stays):

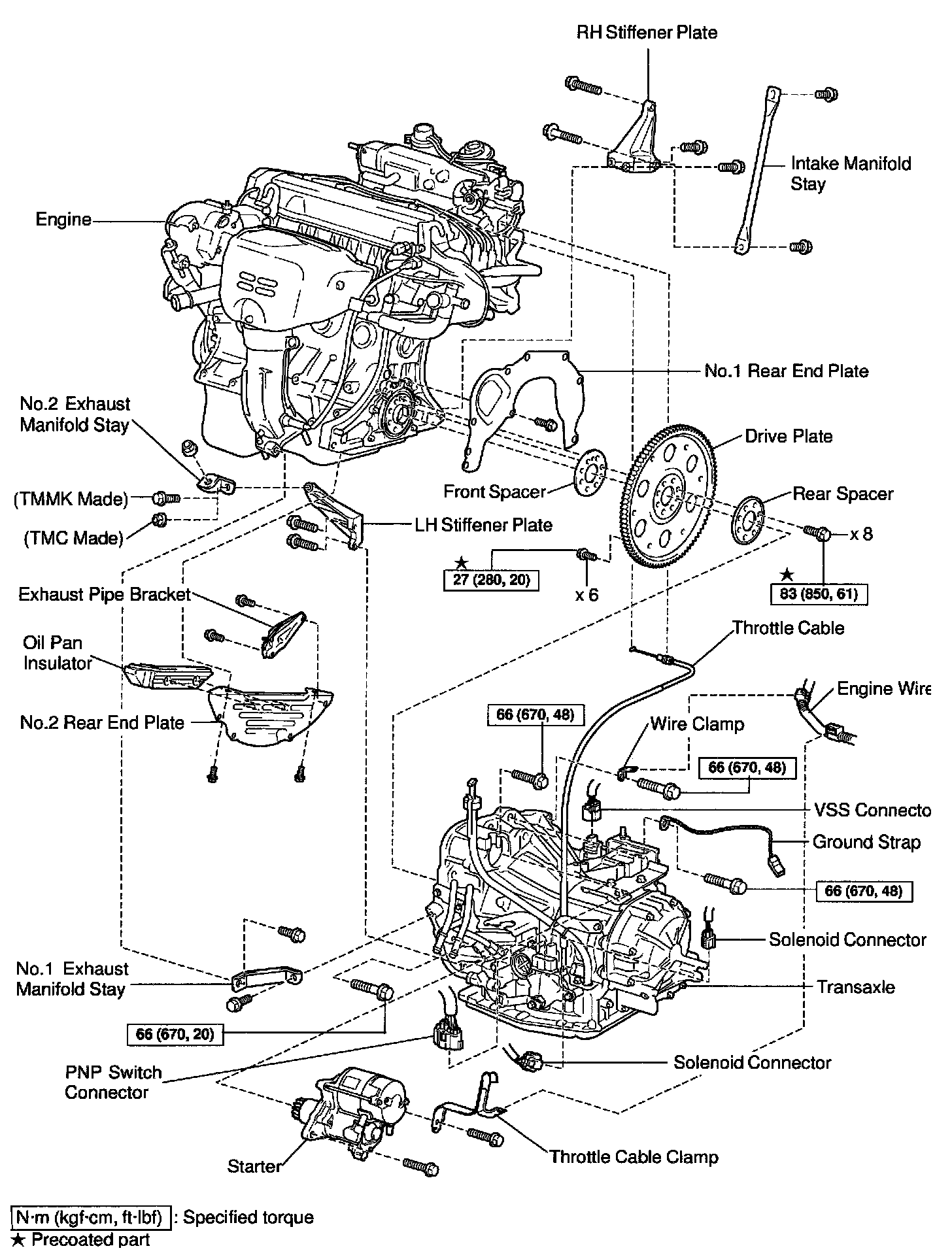

Engine And A/T Transaxle (Stiffeners And Stays):
