Crankshaft Position Sensor: Service and Repair

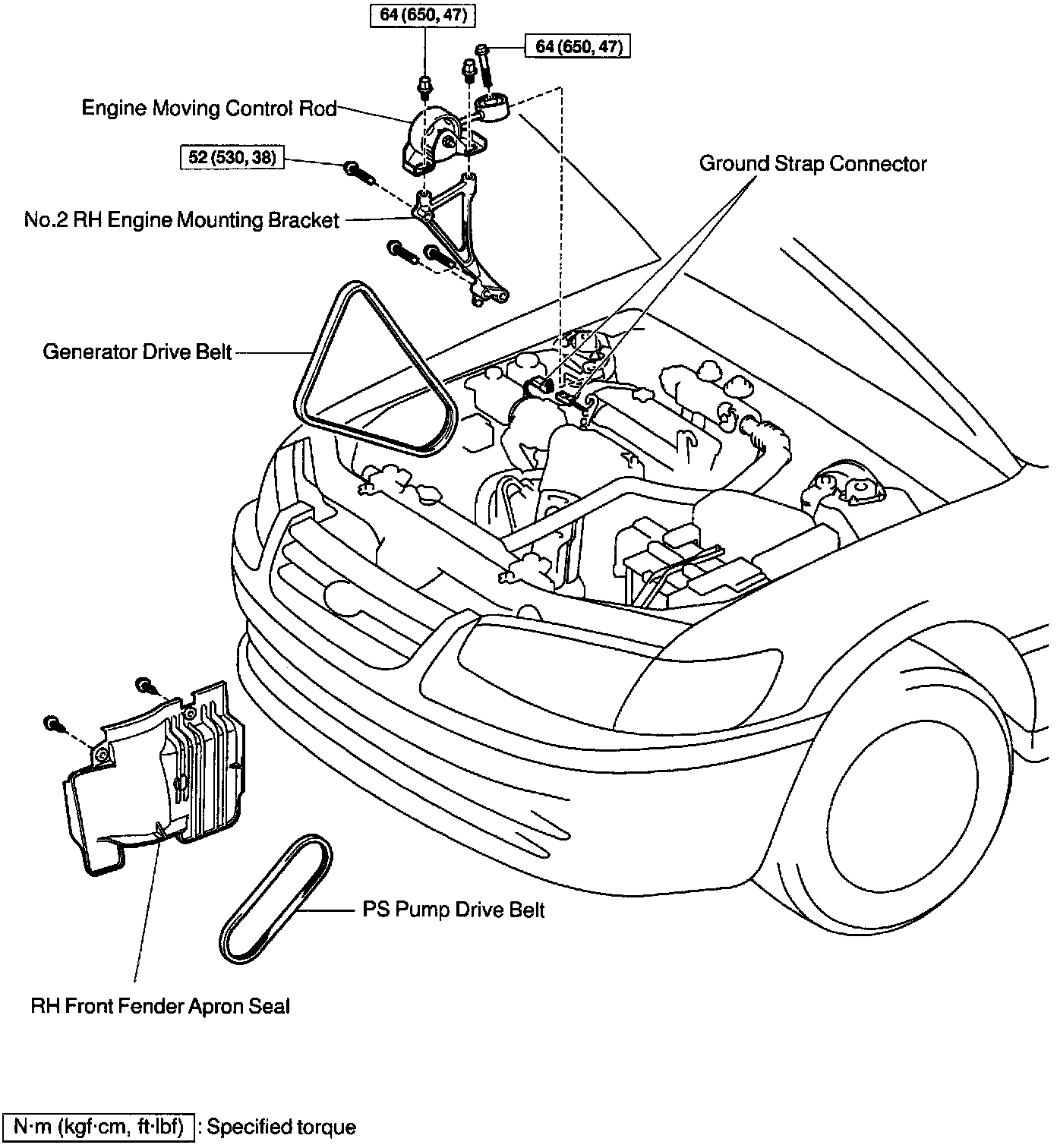

Remove Drive Belts:

Remove Timing Cover:

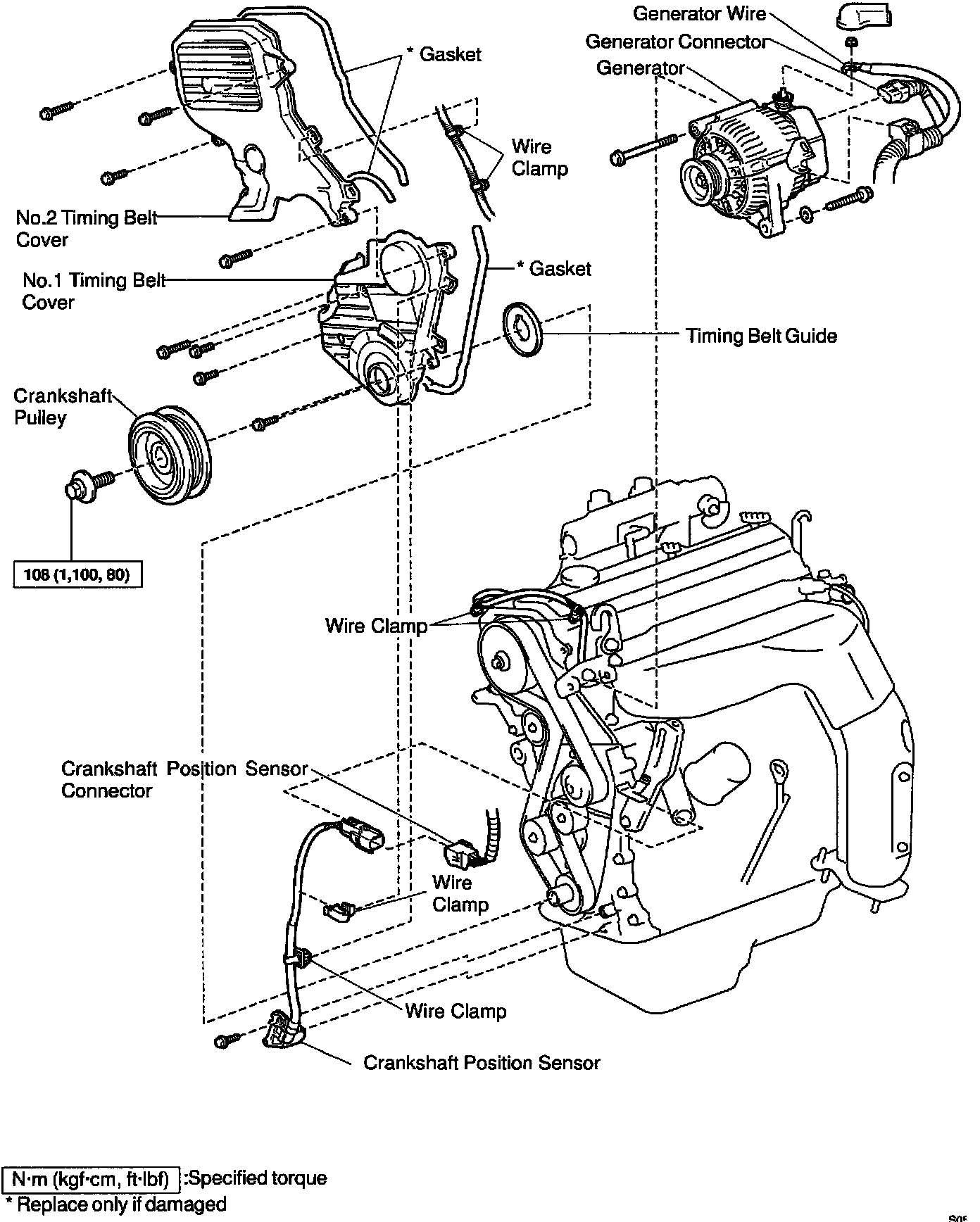

COMPONENTS

REPLACEMENT

1. REMOVE NO.1 TIMING BELT COVER

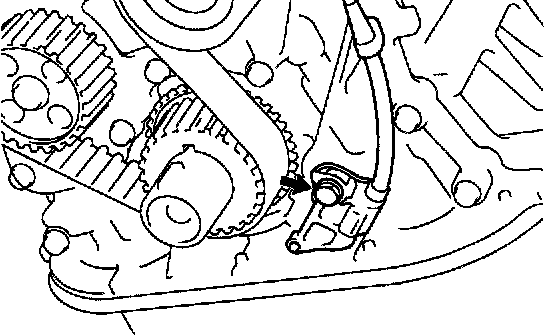

2. REMOVE CRANKSHAFT POSITION SENSOR
a. Disconnect the sensor connector.
b. Disconnect the sensor connector from the generator drive belt adjusting bar.




c. Remove the bolt and sensor.
3. REINSTALL CRANKSHAFT POSITION SENSOR
a. Install the sensor with the bolt.
- Torque: 9.5 Nm (97 kg.cm, 84 in.lb)
b. Install the sensor connector to the generator drive belt adjusting bar.
c. Connect the sensor connector.
4. REINSTALL NO.1 TIMING BELT COVER
