Pinout Values and Diagnostic Parameters
ECU View - ( C15 ):

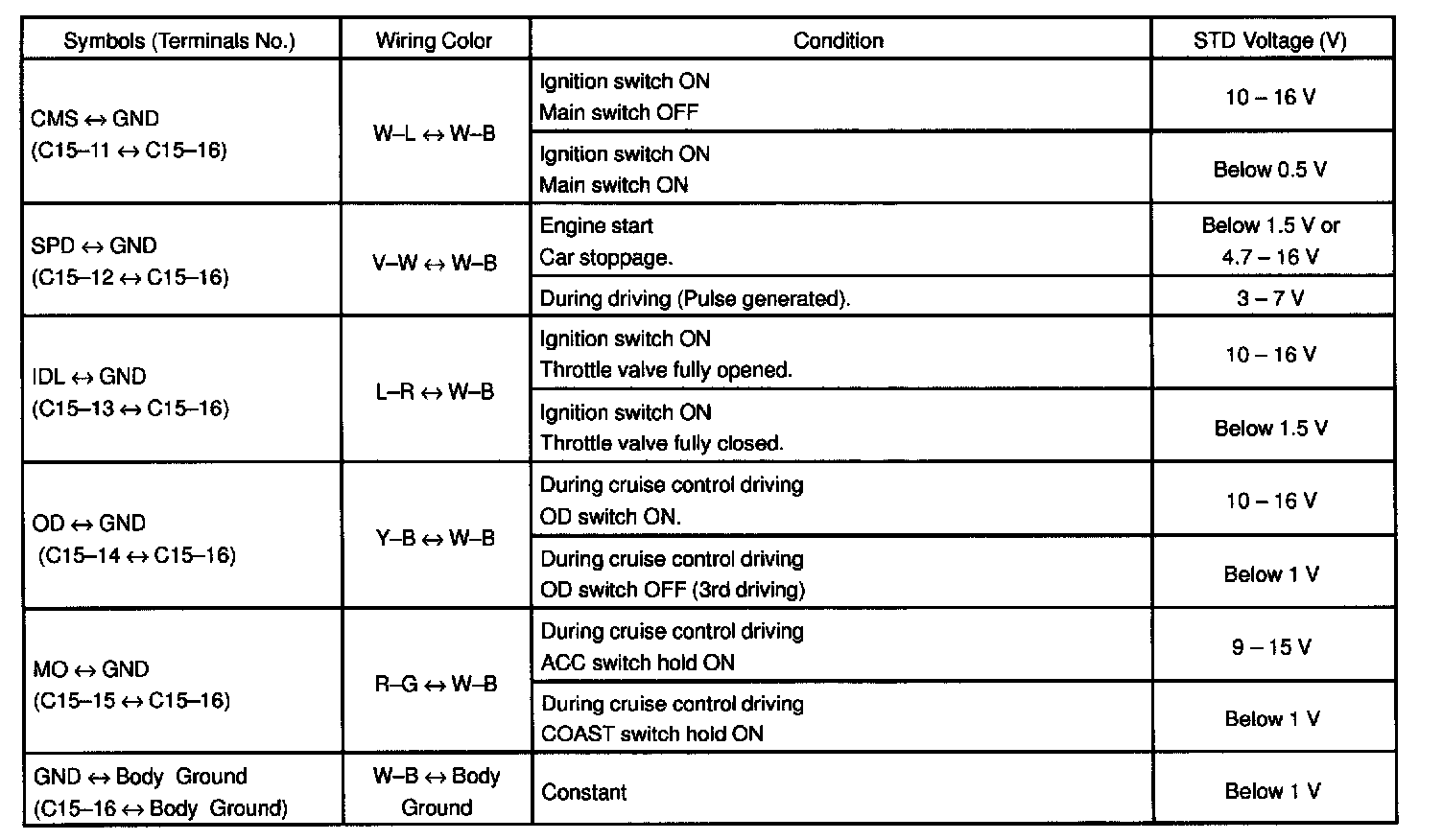

ECU Pinouts - ( C15 ) ( Part 1 Of 2 ):

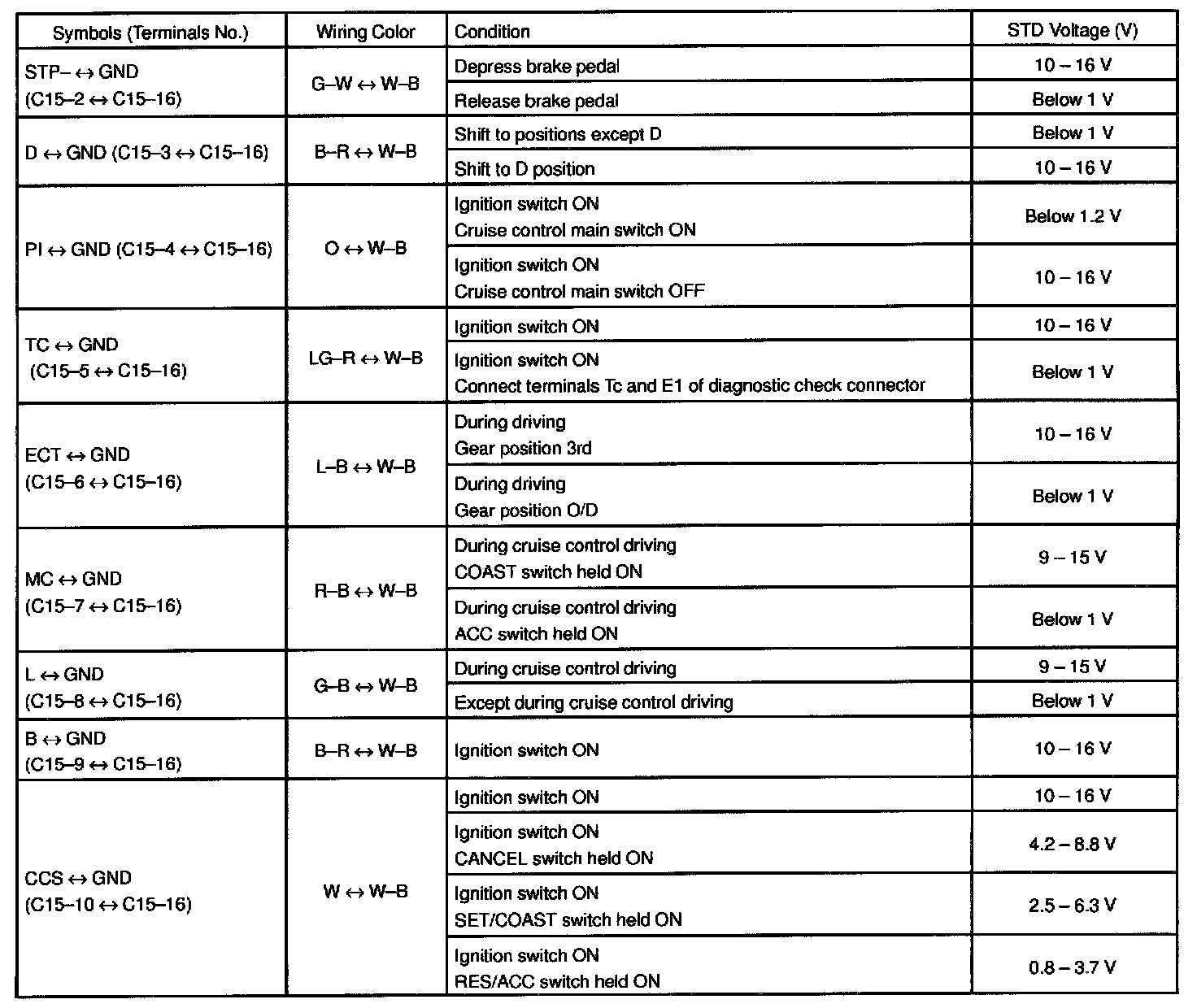

ECU Pinouts - ( C15 ) ( Part 1 Of 2 ):
