Fuse and Fusible Link Locations

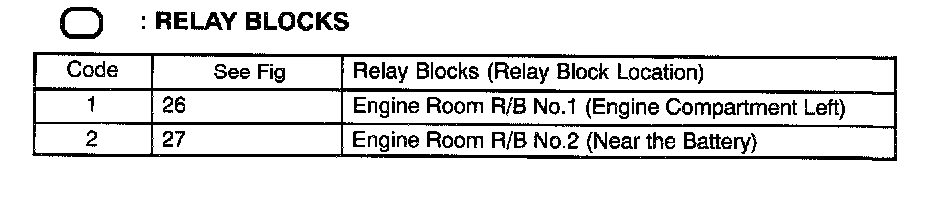

RELAY BLOCKS

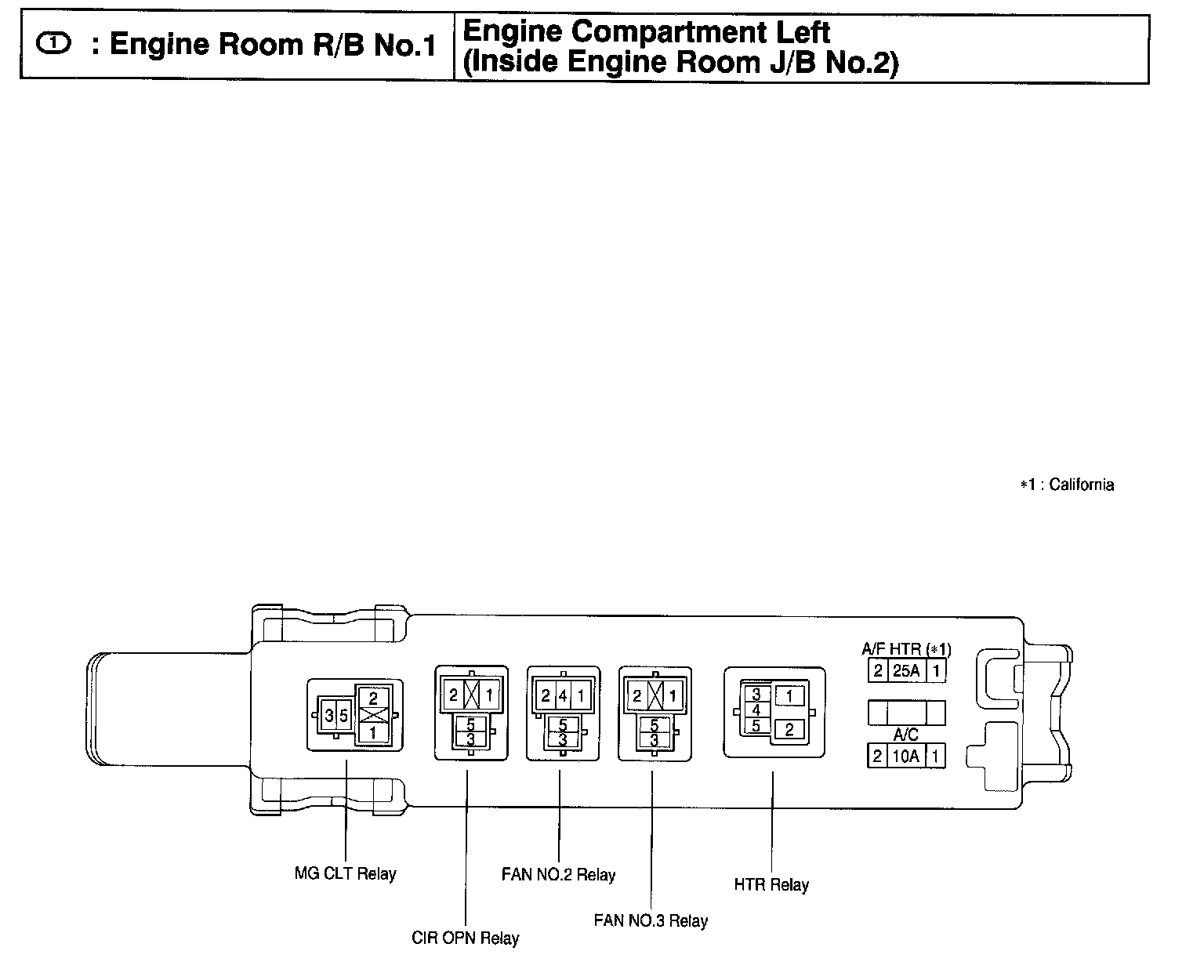

Engine Room R/B No. 1:
FIG 26

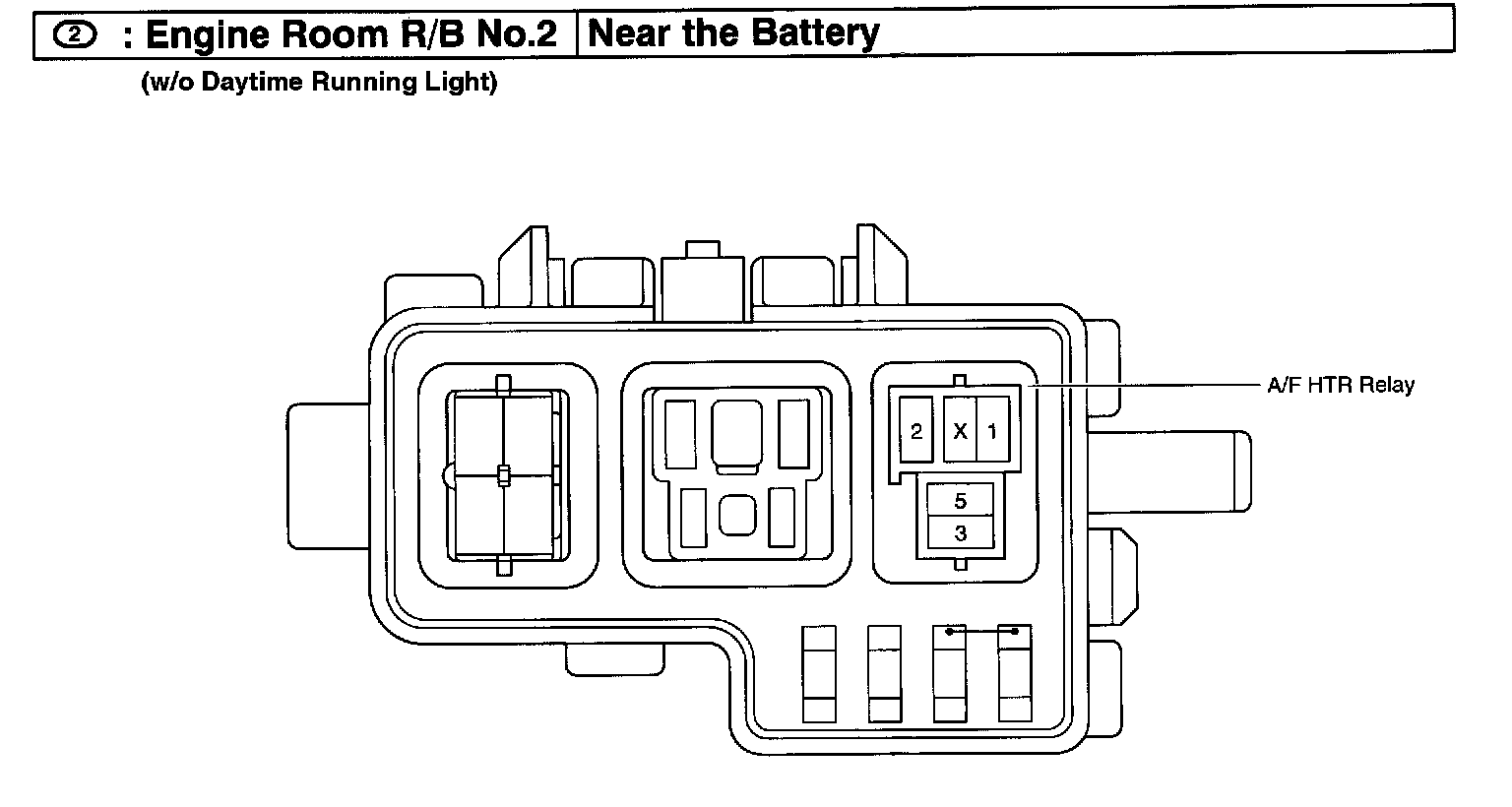

Engine Room R/B No. 2:
FIG 27
