Cruise Control
>>
Locations
>>
Harness Locations
Harness Locations

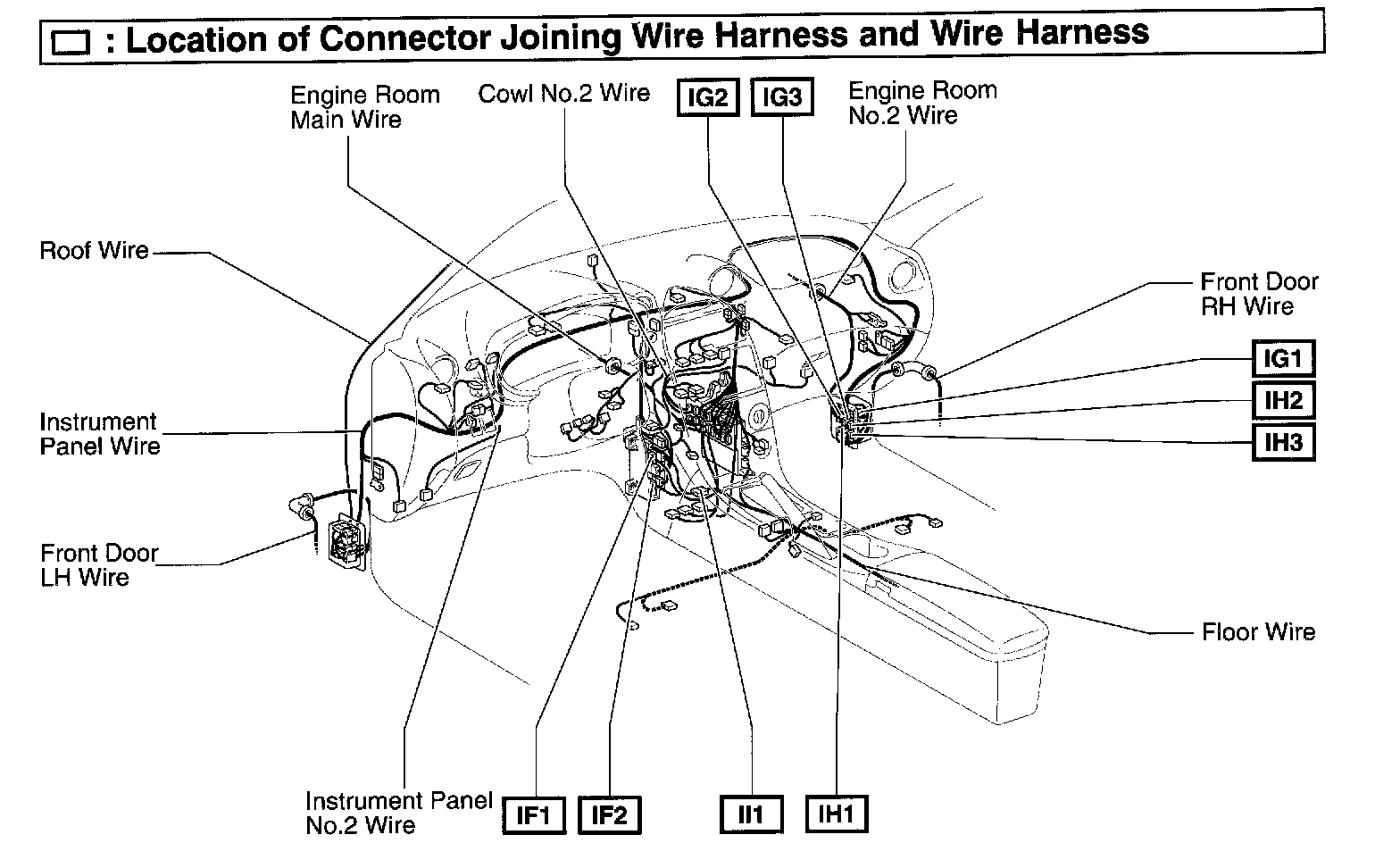

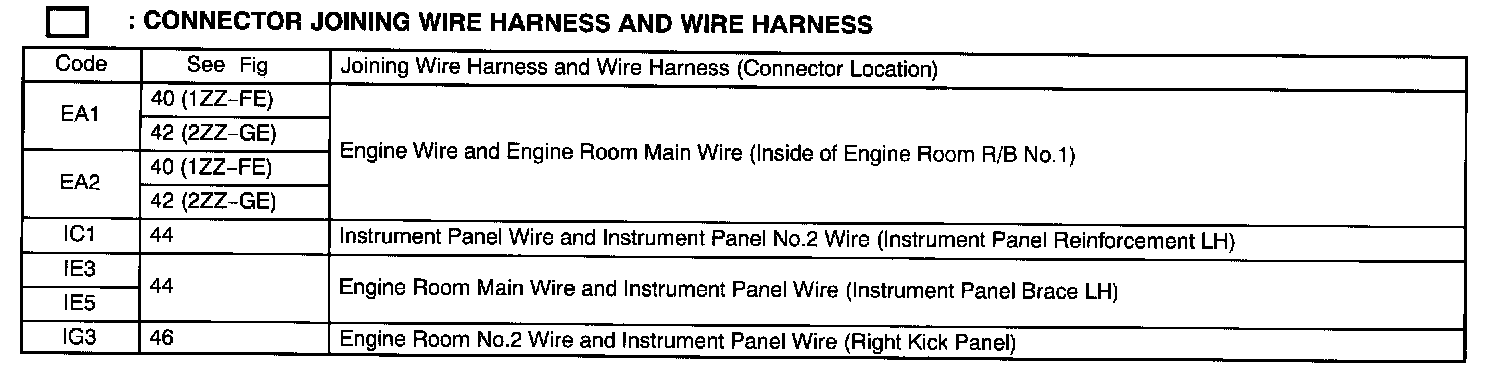

CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
FIG 40
FIG 44
FIG 46
