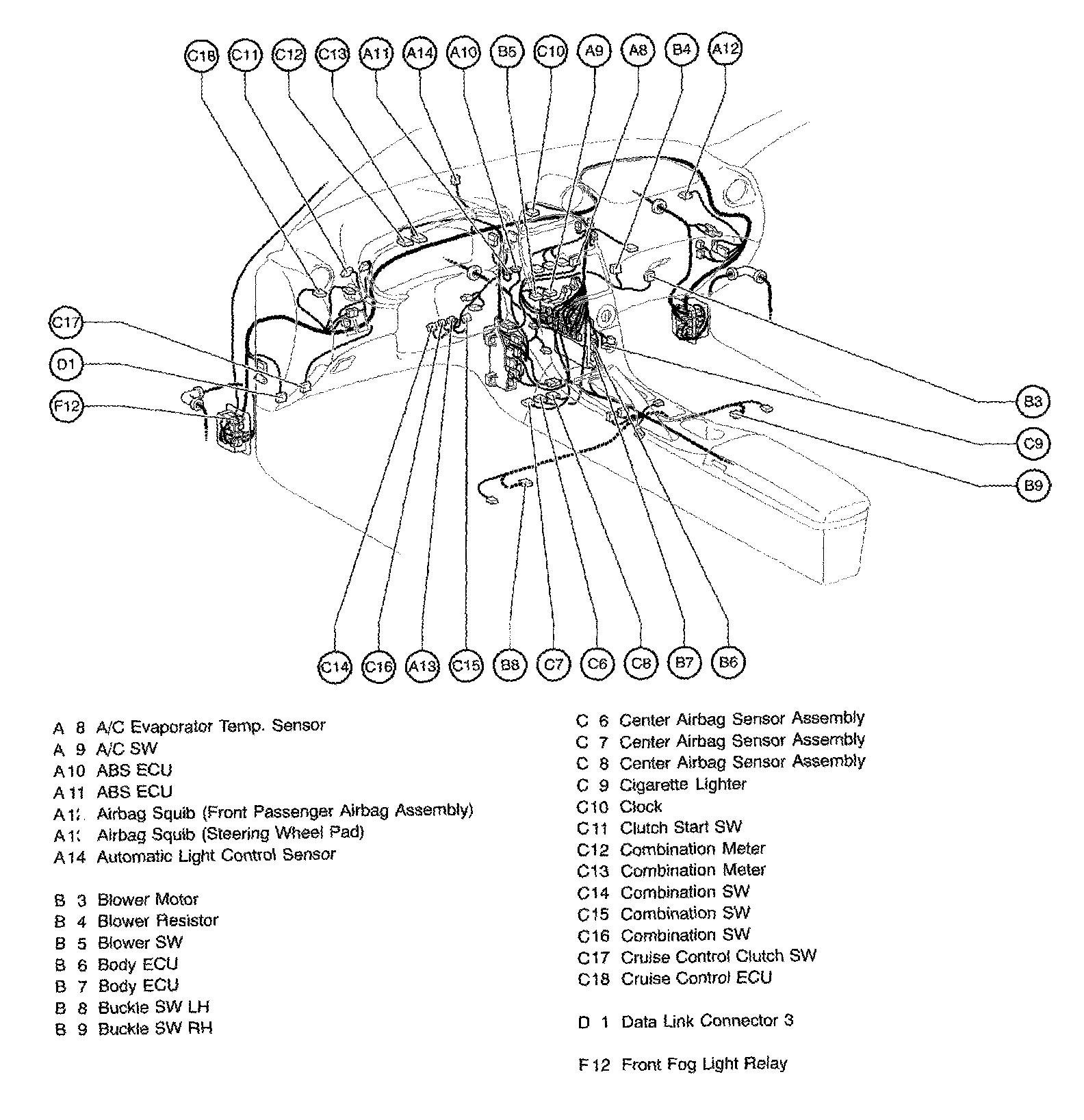

Instrument Panel / Center Console

A 8 A/C Evaporator Temp. Sensor
A 9 A/C SW
A1O ABS ECU
A11 ABS ECU
A12 Airbag Squib (Front Passenger Airbag Assembly)
A13 Airbag Squib (Steering Wheel Pad)
A14 Automatic Light Control Sensor

B 3 Blower Motor
B 4 Blower Resistor
B 5 Blower SW
B 6 Body ECU
B 7 Body ECU
B 8 Buckle SW LH
B 9 Buckle SW RH

C 6 Center Airbag Sensor Assembly
C 7 Center Airbag Sensor Assembly
C 8 Center Airbag Sensor Assembly
C 9 Cigarette Lighter
C10 Clock
C11 Clutch Start SW
C12 Combination Meter
C13 Combination Meter
C14 Combination SW
C15 Combination SW
C16 Combination SW
C17 Cruise Control Clutch SW
C18 Cruise Control ECU

D 1 Data Link Connector 3

F12 Front Fog Light Relay

G 3 Glove Box Light and SW

H 7 Hazard SW
H 8 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 9 Heated Oxygen Sensor (Bank 1 Sensor 2)

I 10 Ignition SW

J 3 Junction Connector
J 4 Junction Connector
J 5 Junction Connector
J 6 Junction Connector
J 7 Junction Connector
J 8 Junction Connector
J 9 Junction Connector
J10 Junction Connector

O 3 O/D Main SW

P 3 Parking Brake SW
P 4 Power Window Lock SW
P 5 Power Window Master SW

R 2 Radio and Player
R 3 Radio and Player
R 4 Radio and Player
R 5 Rheostat

S 3 Shift Lock Control ECU
S 4 Side Airbag Squib LH
S 5 Side Airbag Squib RH
S 6 Stereo Component Amplifier
S 7 Stereo Component Amplifier
S 8 Stop Light SW

T 2 Turn Signal Flasher Relay

U 1 Unlock Warning SW
