Home >> Toyota >> 2000 >> Corolla VE Sedan L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Diagrams

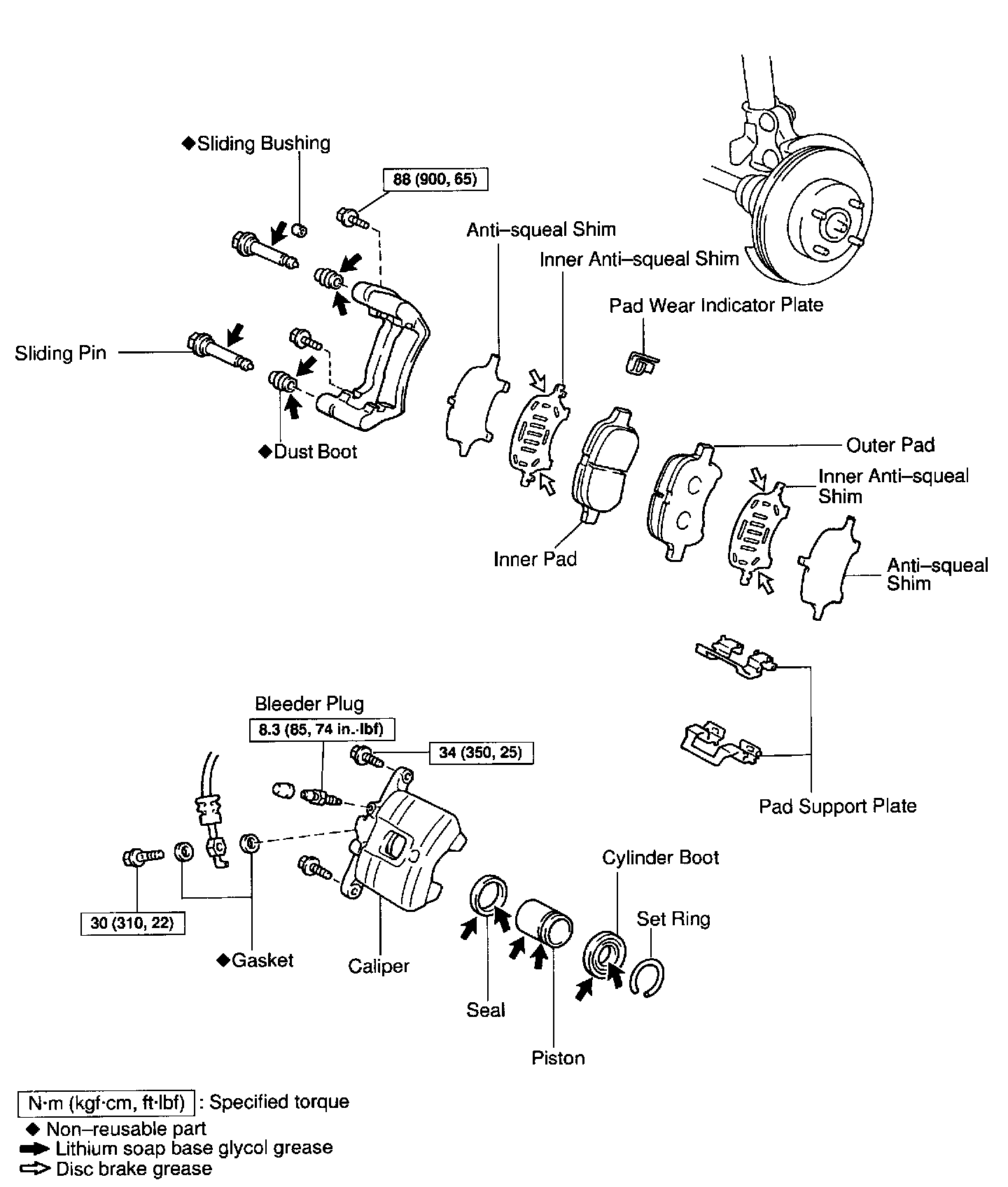

Disc Brake System: Diagrams
